Nordson DuraBlue 4 Hot Melt Adhesive Applicator 1026751A w/ Eclipse EPC-15 Controller

Nordson DuraBlue 4 Hot Melt System with Eclipse EPC-15 Pattern Controller

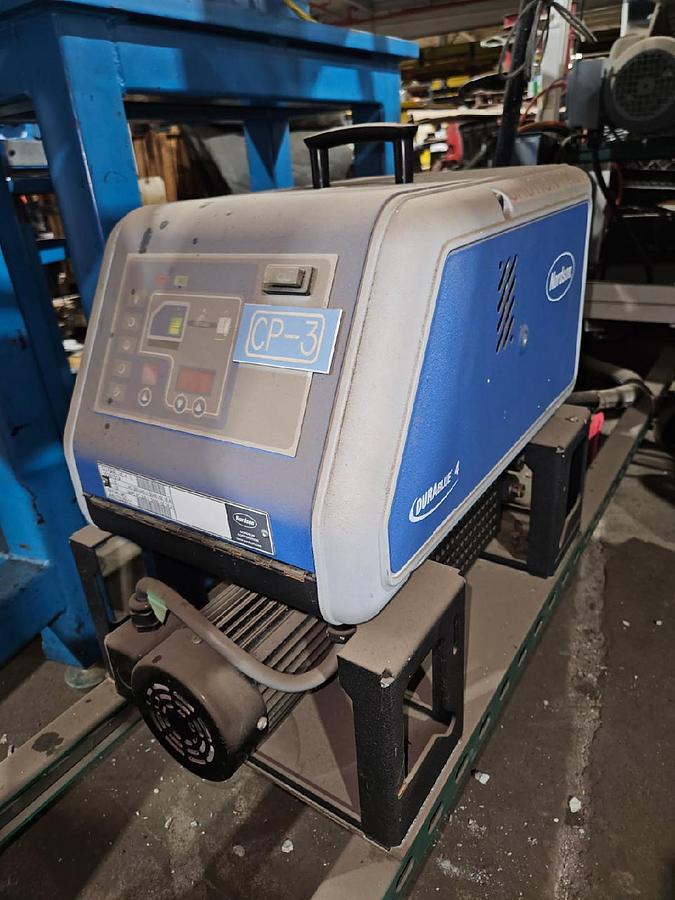

Overview Up for sale is a complete, high-efficiency hot melt dispensing package featuring a Nordson DuraBlue 4 Adhesive Applicator (P/N 1026751A) paired with an Eclipse Series EPC-15

Solid-State Pattern Controller. This system is ideal for automated packaging lines, case sealing, tray forming, and product assembly operations requiring precise adhesive bead/stitch patterns at high line speeds.

Technical Specifications

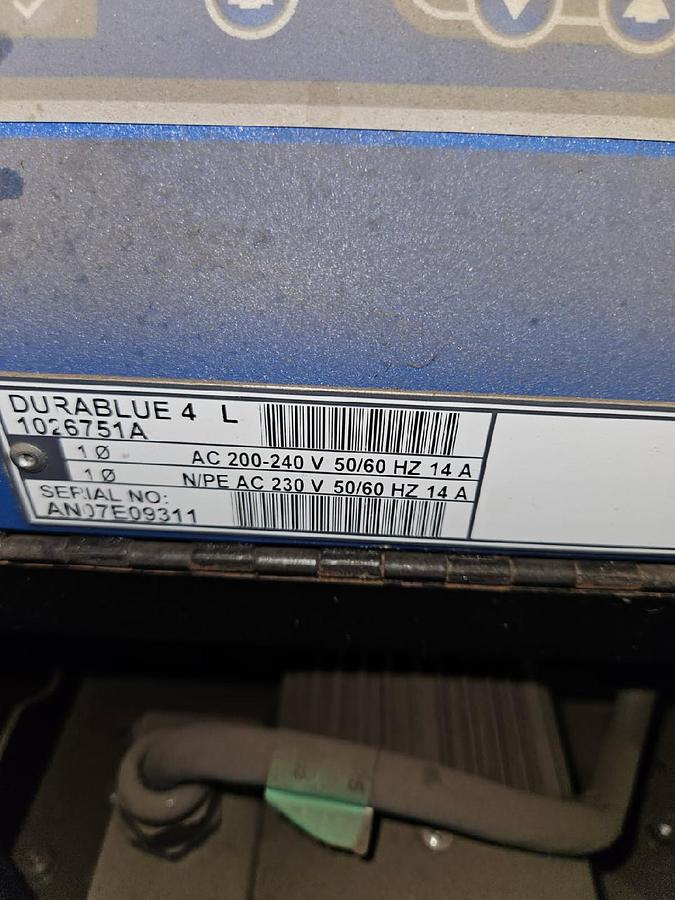

• Model / Part Number: Nordson DuraBlue 4 (P/N 1026751A)
• Tank Capacity: 4 Liters / 8.6 lbs (3.9 kg)
• Melt Rate: Up to 10.3 lbs/hr (4.7 kg/hr)
• Max Hydraulic Output: 39.6 lbs/hr (18 kg/hr) @ 580 psi max pressure
• Electrical Requirements: 200–240 VAC, 1-Phase, 50/60 Hz (~3,355W max)
• Pump Type: Fixed-speed AC motor with precision gerotor gear pump
• Operating Temperature Range: 100°F to 450°F (40°C to 230°C)
• Hose/Gun Channels: Dual-channel output capability

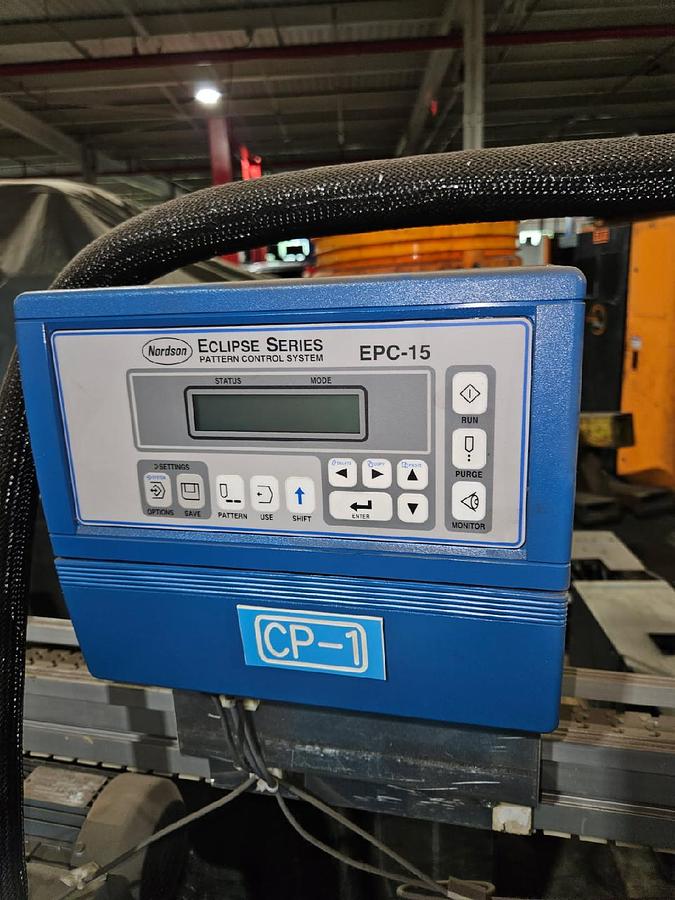

• Pattern Controller: Eclipse Series EPC-15 (24 VDC input, 4 independent gun outputs)
• Pattern Timing & Accuracy: Time-based control rated for line speeds up to 500 ft/min (±1 ms accuracy)
• Dimensions / Weight: 13.1" W x 18.8" H x 21.7" D | Approx. 93 lbs (melter unit only)

Key Features & Package Highlights

• Integrated Timing Control: The included EPC-15 pattern controller interfaces directly with standard product-sensing photo-eyes to execute precise bead placement and stitch patterns, reducing adhesive consumption.
• Low-Maintenance Tank Design: Non-stick coated tank interior minimizes adhesive charring and simplifies routine cleanout.
• Intuitive Touchpad Interface: Simple front-panel programming on the DuraBlue unit for individual zone temperature management and fault diagnostics.
• Plug-and-Play Production Integration: Ready for mounting alongside standard conveyor systems or cartoning equipment.
