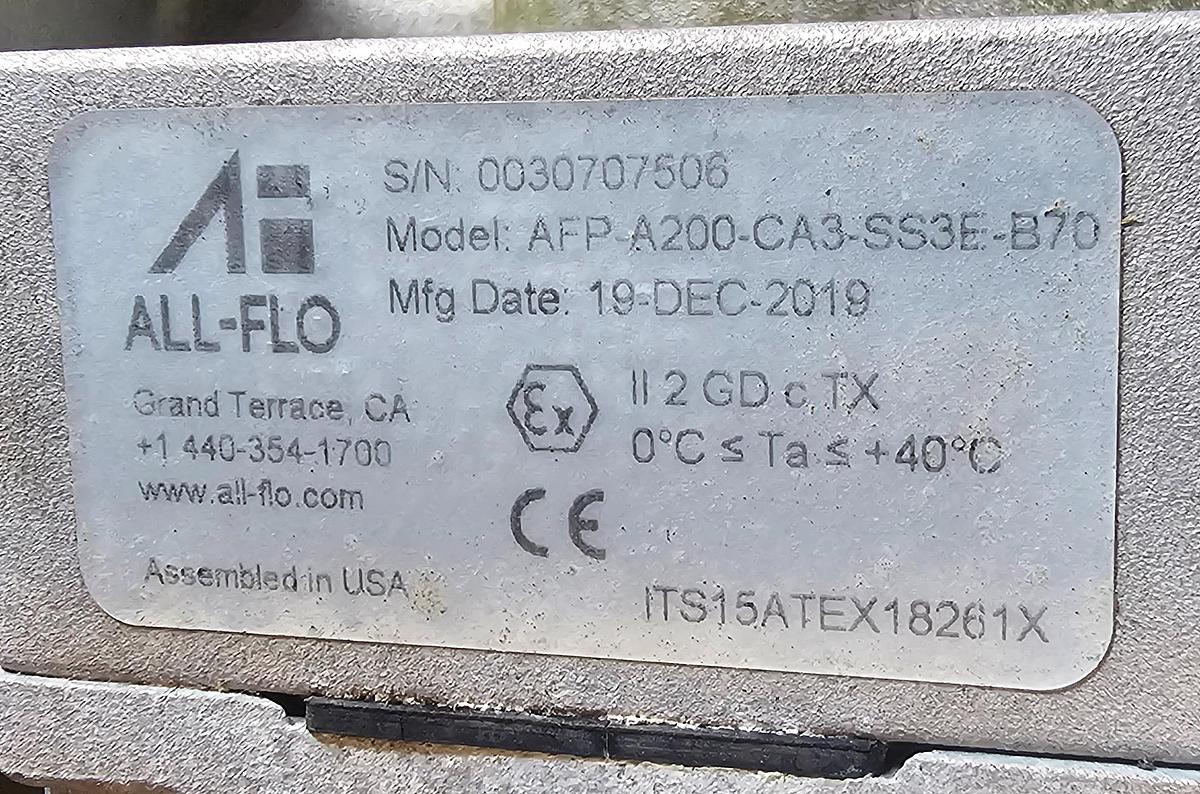

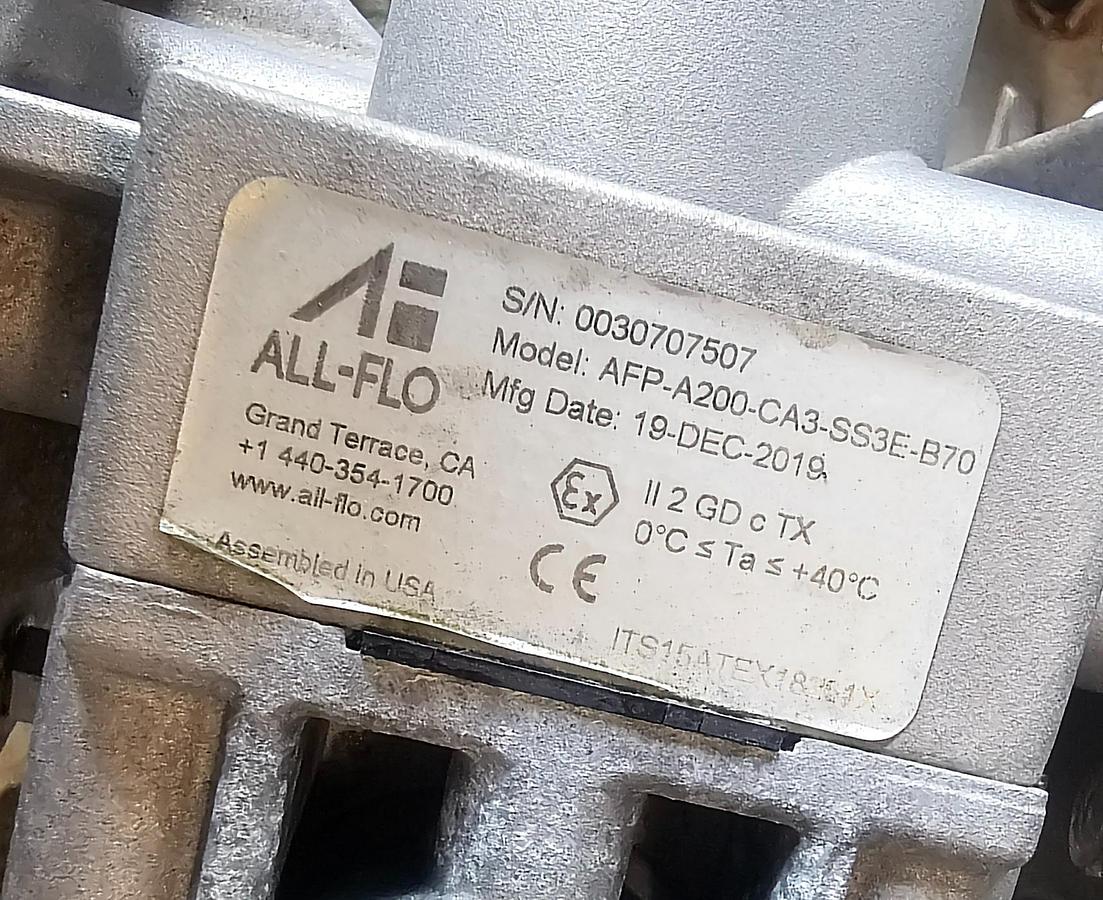

2019 All-Flo A200 2" Stainless Steel Diaphragm Pump A200-CA3-SS3E-B70 (190 GPM)

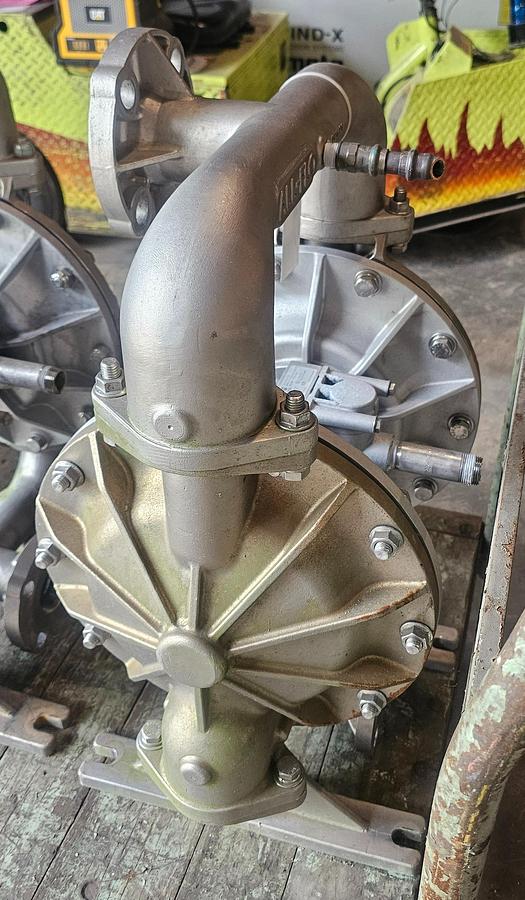

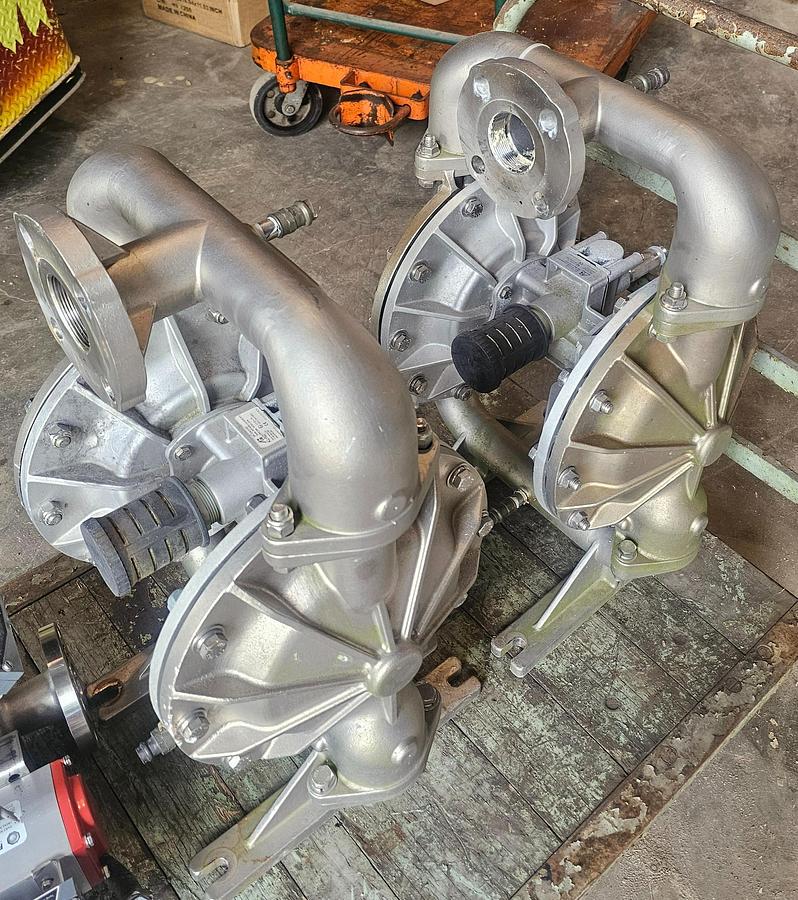

Up for sale is a clean, modern 2019 All-Flo A200 Series 2" AODD Pump featuring heavy-duty 316 Stainless Steel wetted fluid chambers and Santoprene diaphragms and valve balls.

Engineered for reliability and efficiency, this unit utilizes All-Flo's stall-free, freeze-resistant air valve design with only four moving parts. Ideal for chemical processing, wastewater transfer, slurries, mild acids, industrial washdown, and general fluid handling.

Key Technical Specifications

• Fluid Chamber Material: 316 Stainless Steel
• Air Section / Intermediate: Aluminum
• Diaphragms & Valve Balls: Santoprene
• Valve Seats: 316 Stainless Steel
• Manifold O-Rings: EPDM

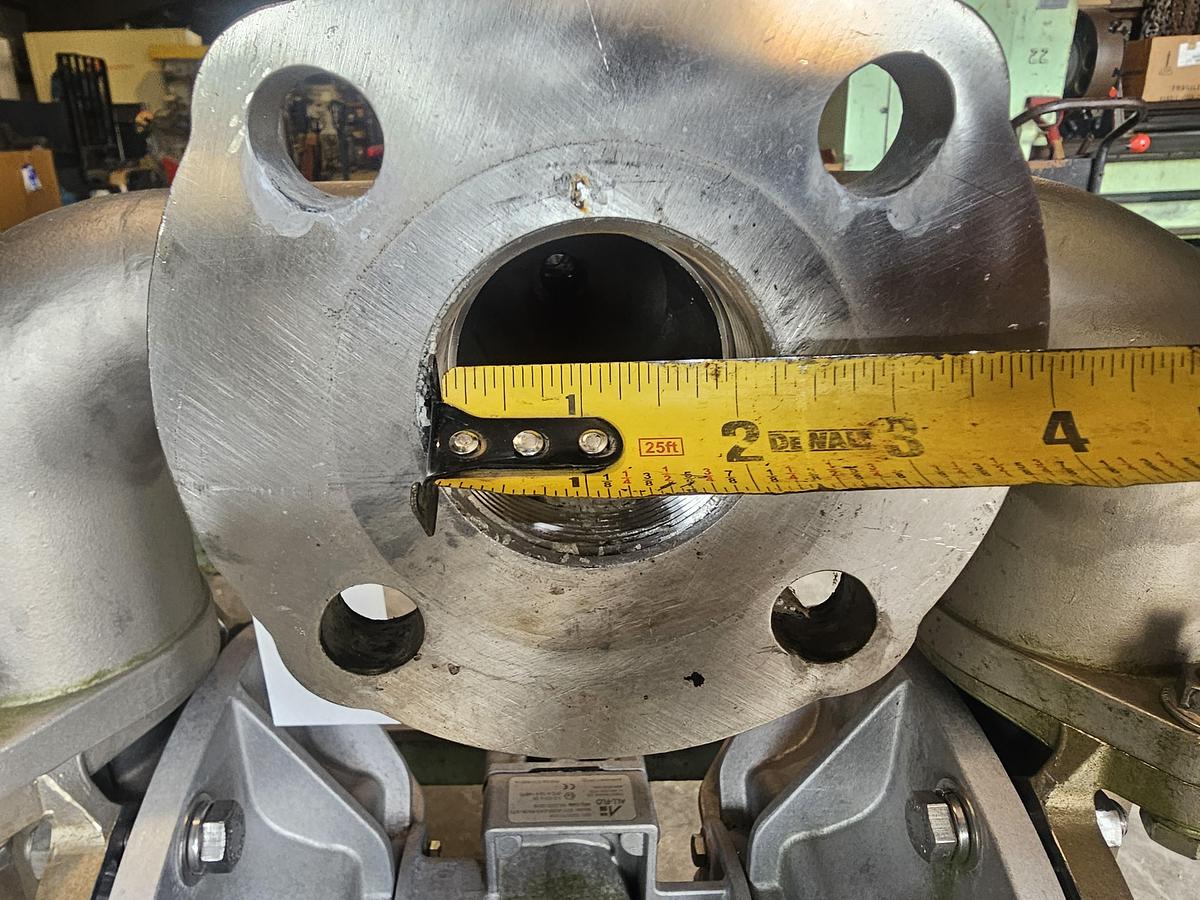

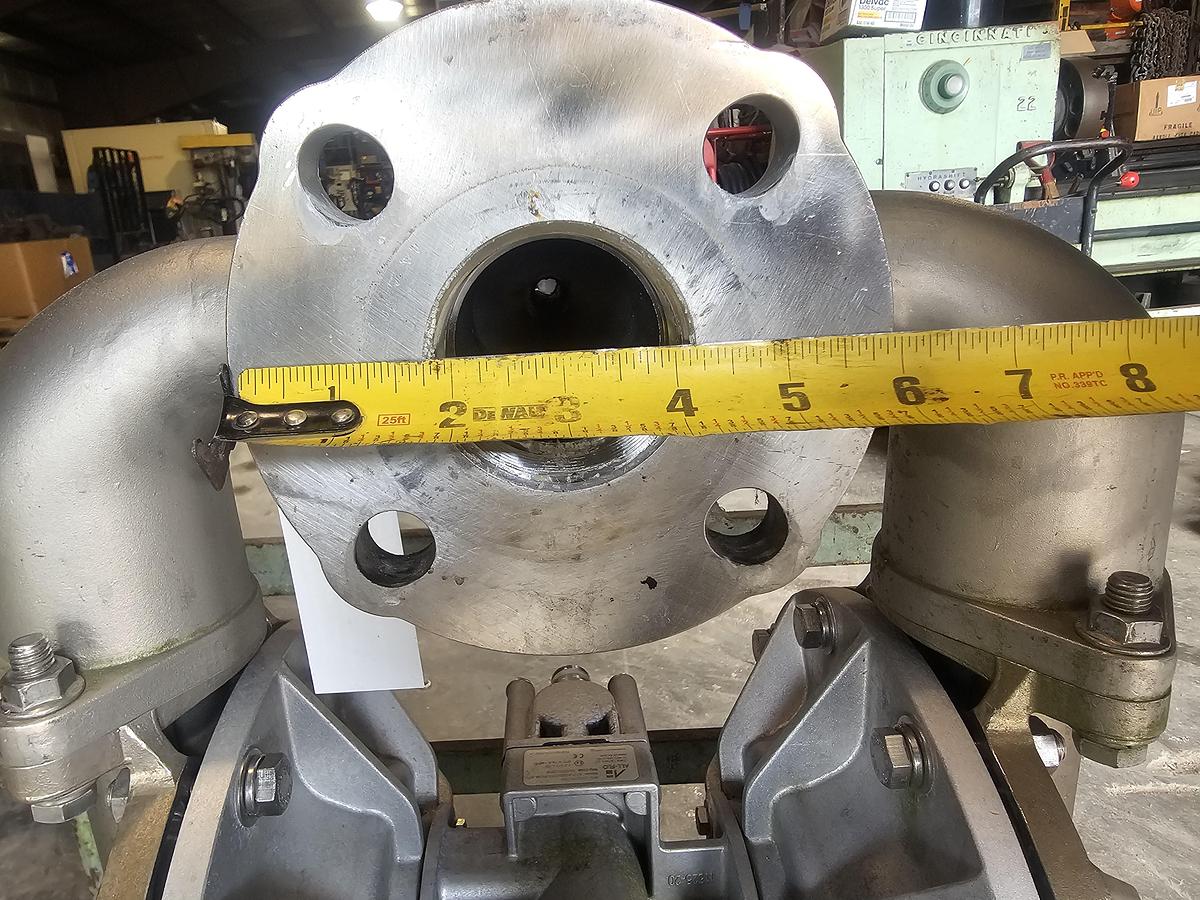

• Inlet / Outlet Size: 2" ANSI/DIN Flange & NPT Combination Ports
• Air Inlet Size: 3/4" FNPT
• Maximum Flow Rate: 190 GPM (681 LPM)
• Maximum Air Operating Pressure: 120 PSI (8.2 bar)
• Maximum Passable Solids: 1/4" (6.4 mm)
• Dry Suction Lift: Up to 24.4 ft H2O
• Unit Weight: Approx. 146 lbs
