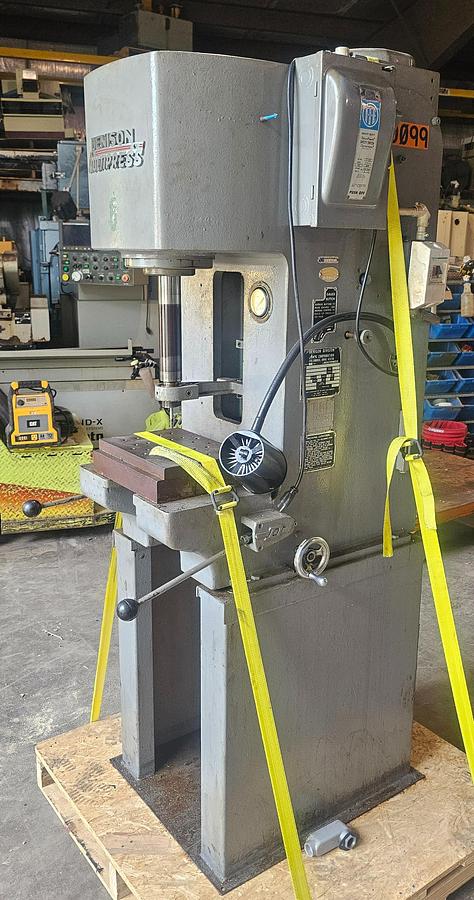

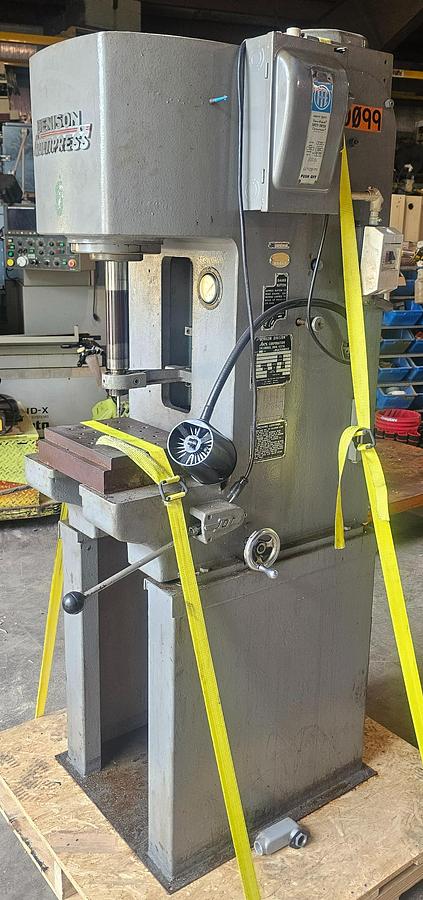

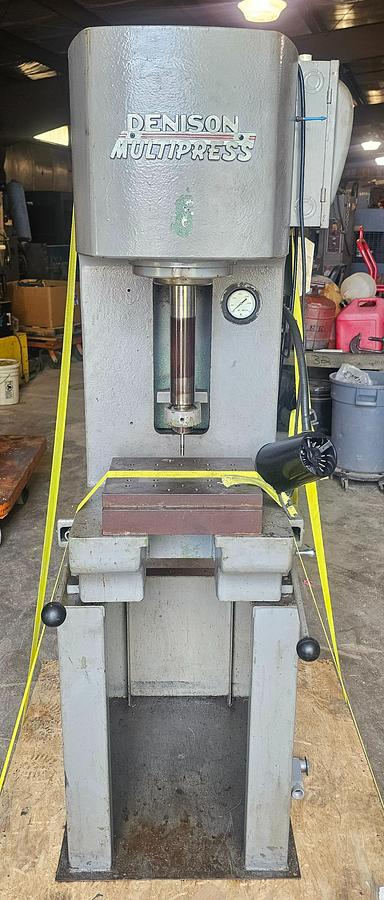

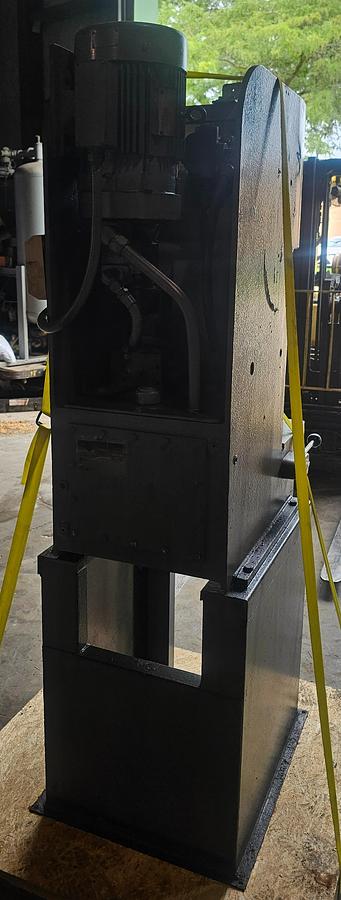

6-Ton Denison Multipress C-Frame Hydraulic Press

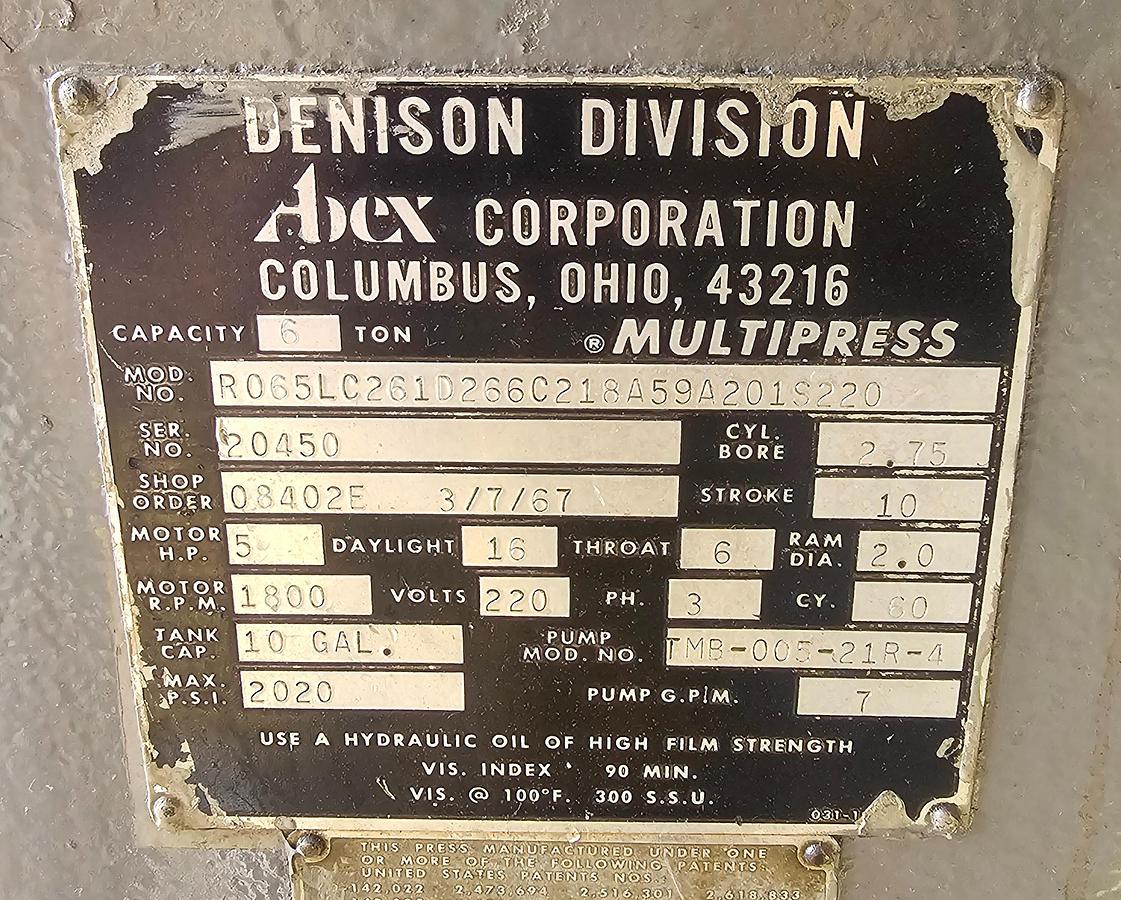

Model Number: R065LC261D266C218A59A201S220

Serial Number: 20450

Overview

Up for sale is a heavy-duty 6-Ton Denison Multipress C-Frame Hydraulic Press. Known across the manufacturing and assembly industries for their rugged cast-iron frame construction and dependable operation, Denison presses are ideal for pressing, staking, punching, riveting, forming, and light stamping operations. Powered by a 5 HP motor, this compact C-frame design delivers minimal frame deflection and excellent open access to the work area.

Technical Specifications

• Capacity: 6 Tons (12,000 lbs)

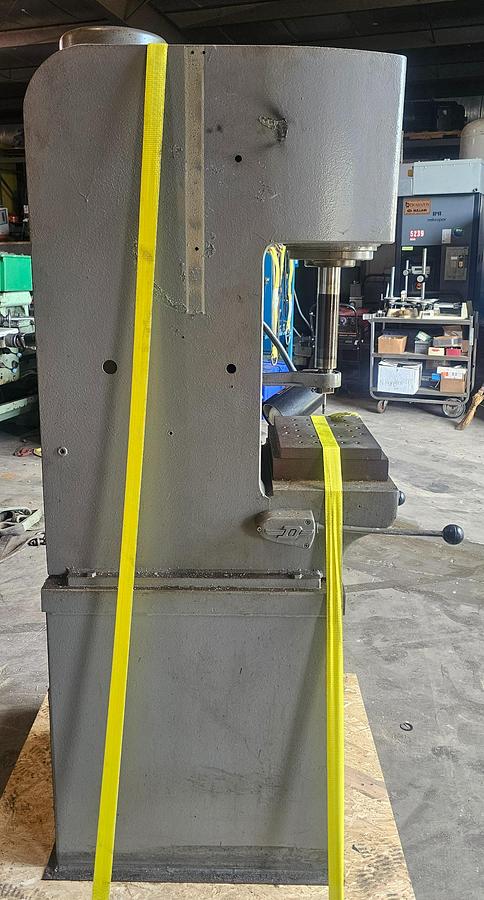

• Frame Style: Heavy-Duty Cast-Iron C-Frame / Gap Frame

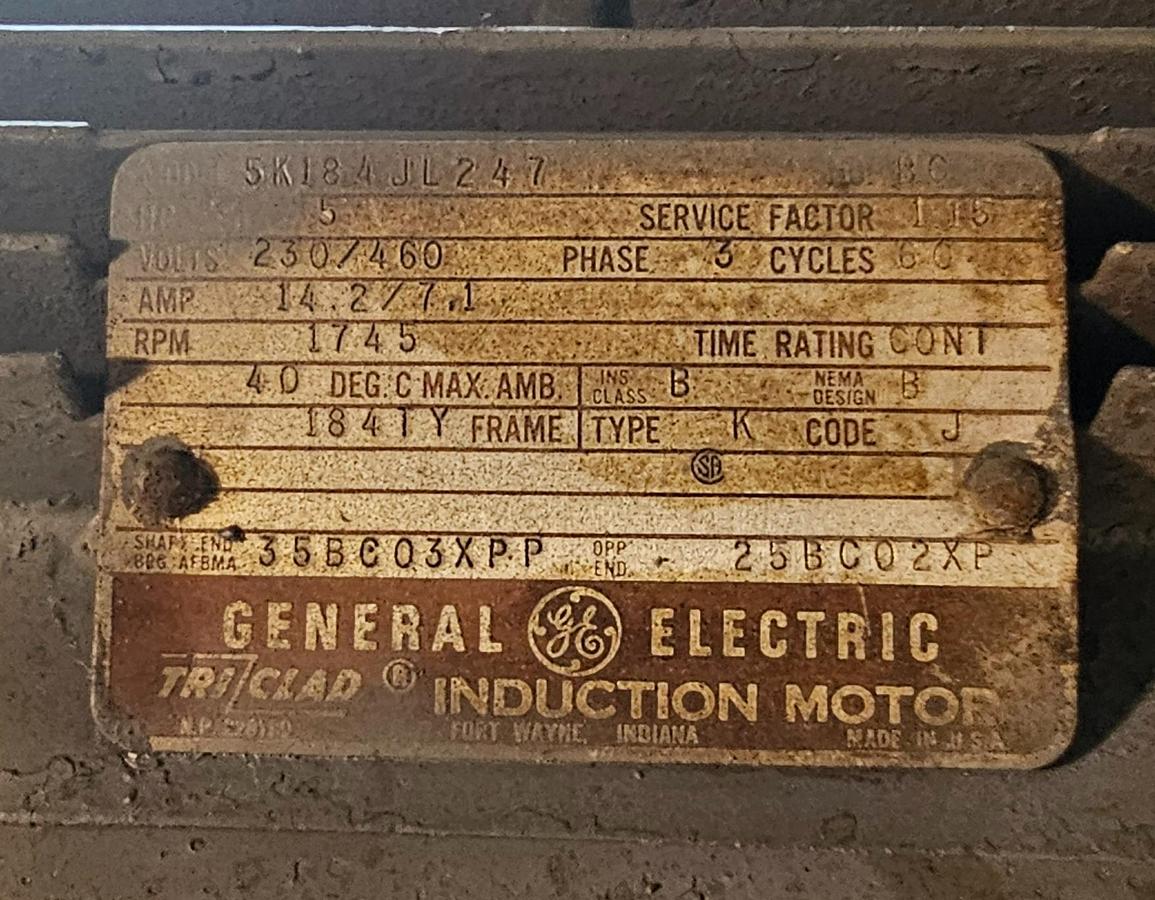

• Motor Horsepower: 5 HP
• Electrical System: [230/460V], 3-Phase, 60 Hz

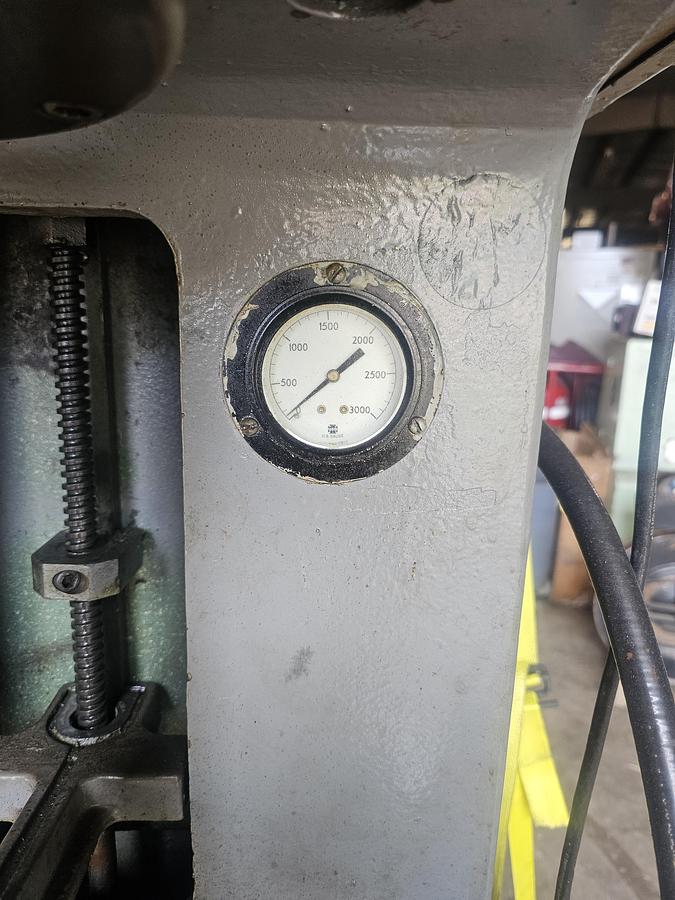

• Maximum System Pressure: Approx. 2,020 PSI
• Throat Depth: Approx. 6"
• Stroke Length: Approx. 10"
• Daylight Opening: Approx. 16"
• Control System: Dual-Hand Palm Buttons / Relay Logic

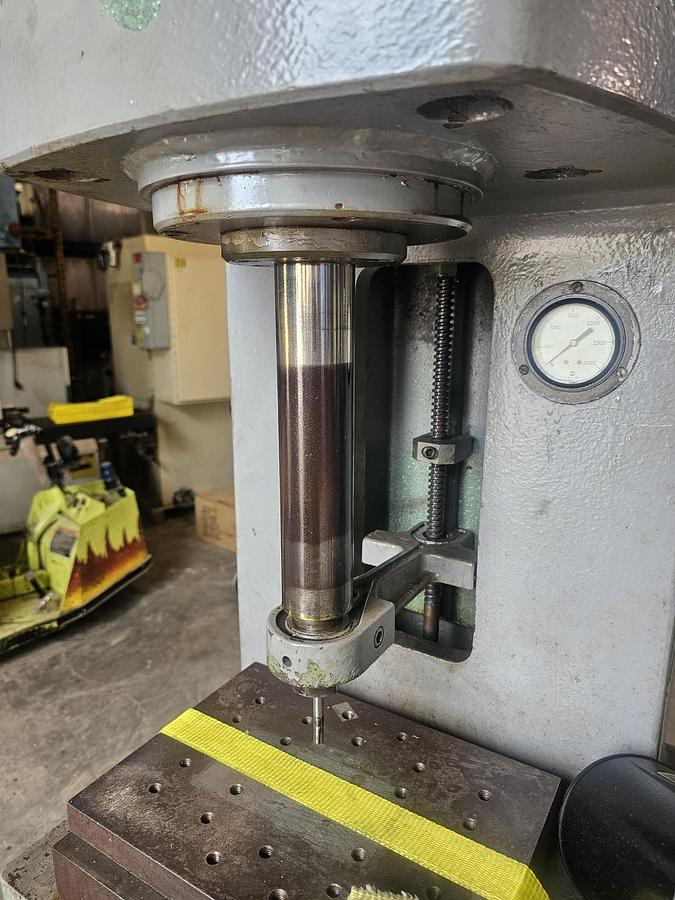

• Ram Diameter: 2"


Key Features

• Rigid, solid cast frame construction built to withstand continuous shop use with minimal deflection.
• Integrated Denison hydraulic pump and manifold control package.
• Dual-hand palm button setup for operator safety.
• Adjustable stroke limit controls and pressure/distance reversal options.
• Compact floor/bench footprint suitable for dedicated production cells or general job shop use.
