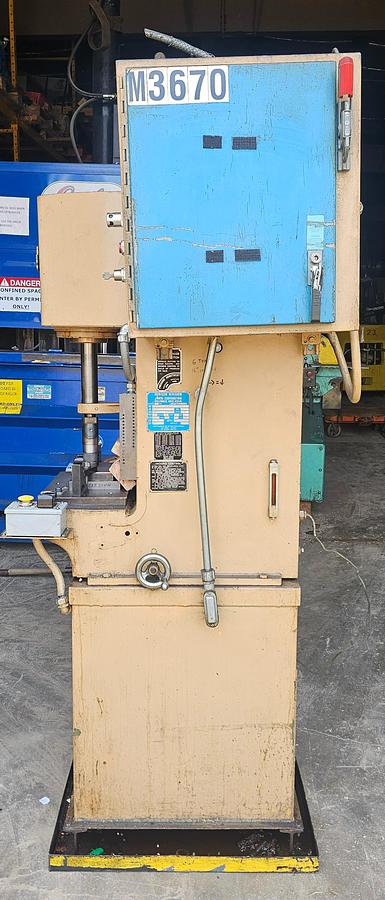

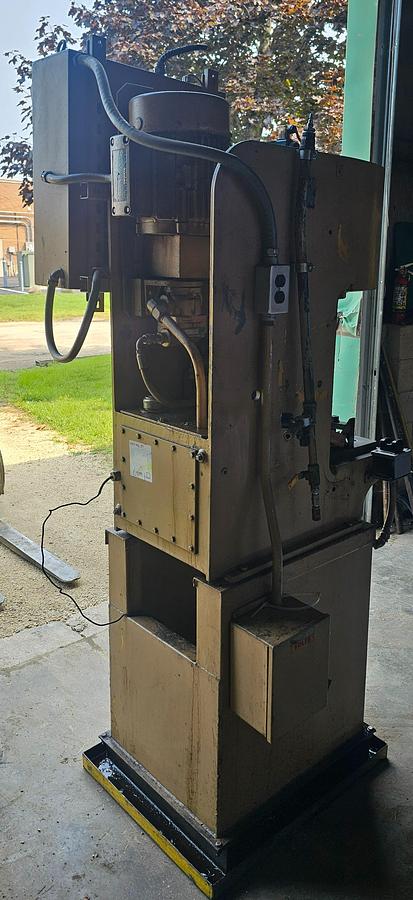

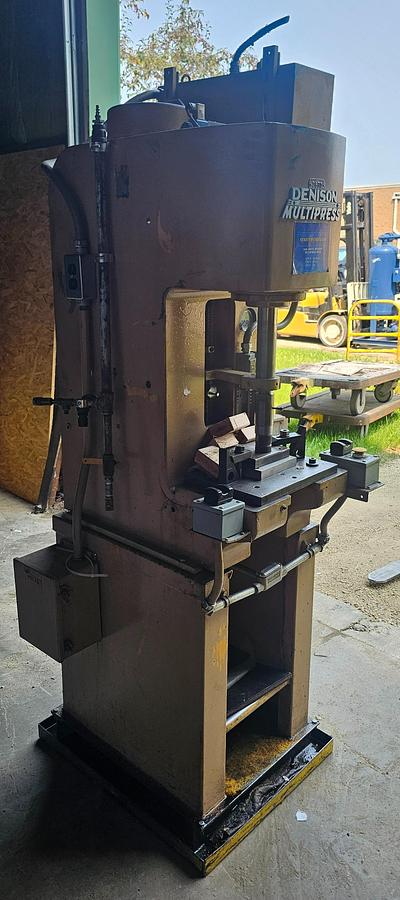

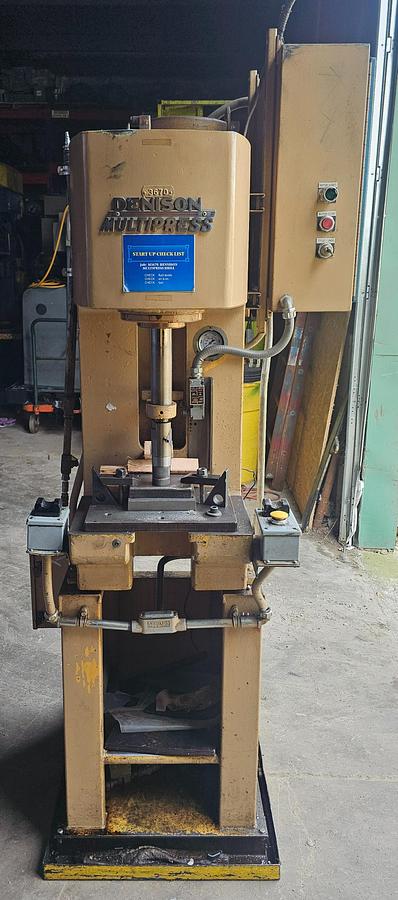

6-Ton Denison Hydraulic Multipress

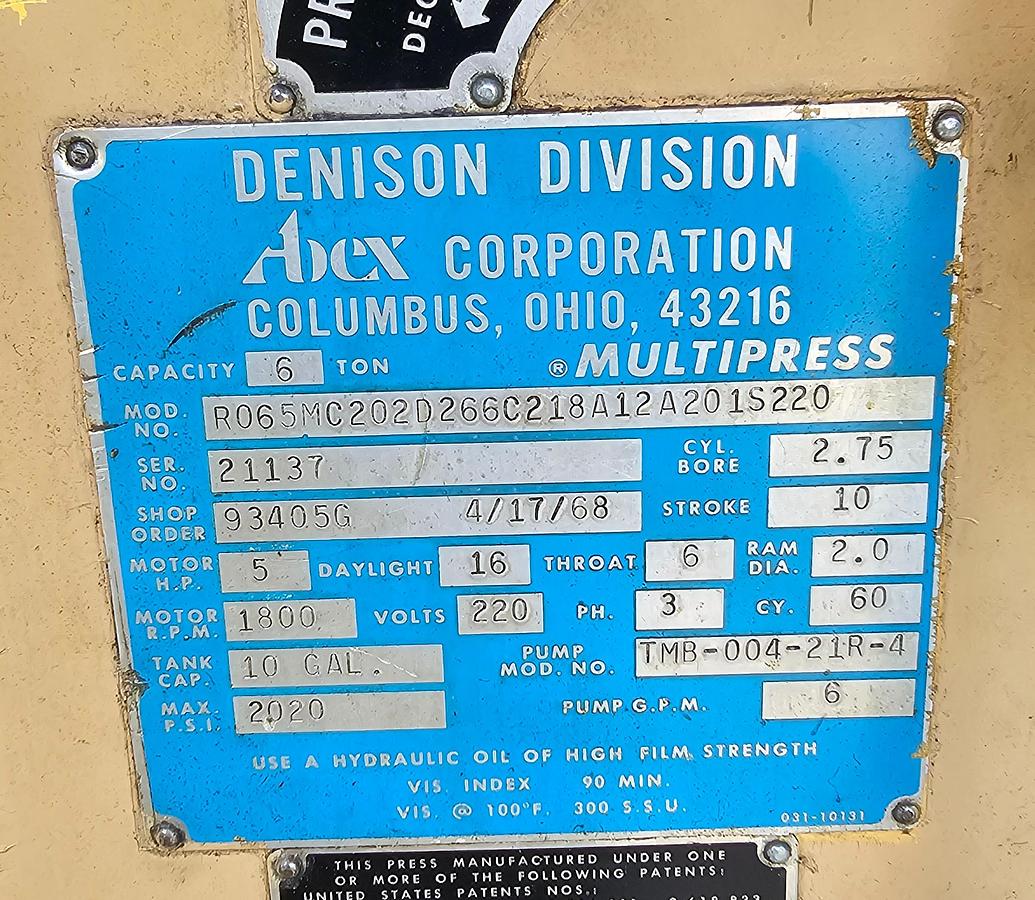

Model Number: R065MC202D266C218A12A201S220

Capacity: 6 US Tons (12,000 lbs)

Overview

Up for sale is a versatile 6-Ton Denison R-Series C-Frame Hydraulic Multipress. Engineered for high-cycle production environments, Denison presses are renowned across precision manufacturing for assembly, staking, riveting, forming, punching, and press-fitting operations. Powered by an integrated 5 HP hydraulic power unit, this compact bench-top press delivers smooth, repeatable hydraulic force with minimal deflection.

Technical Specifications

• Max Capacity: 6 Tons (12,000 lbs)
• Frame Style: C-Frame / Gap-Frame (Bench Model)
• Motor: 5 HP, 3-Phase
• Maximum Stroke: 10" (Adjustable)
• Daylight Opening: 16" (Ram Up)
• Throat Depth: 6"
• Bed Dimensions: Approx. 17" L-R x 10.5" F-B with 5" U-Slot cutout
• Closing Speed: Approx. 165 IPM
• Pressing Speed: Approx. 165 IPM
• Return Speed: Approx. 460 IPM
• Operating Pressure: ~2,020 PSI
• Reservoir Capacity: 11 Gallons
• Approximate Dimensions (L x W x H): 34" x 34" x 43" (Bench Top)
• Approximate Weight: 1,350 lbs

Key Features

• Heavy-duty cast/welded C-frame construction designed for ultra-low frame deflection under full tonnage.

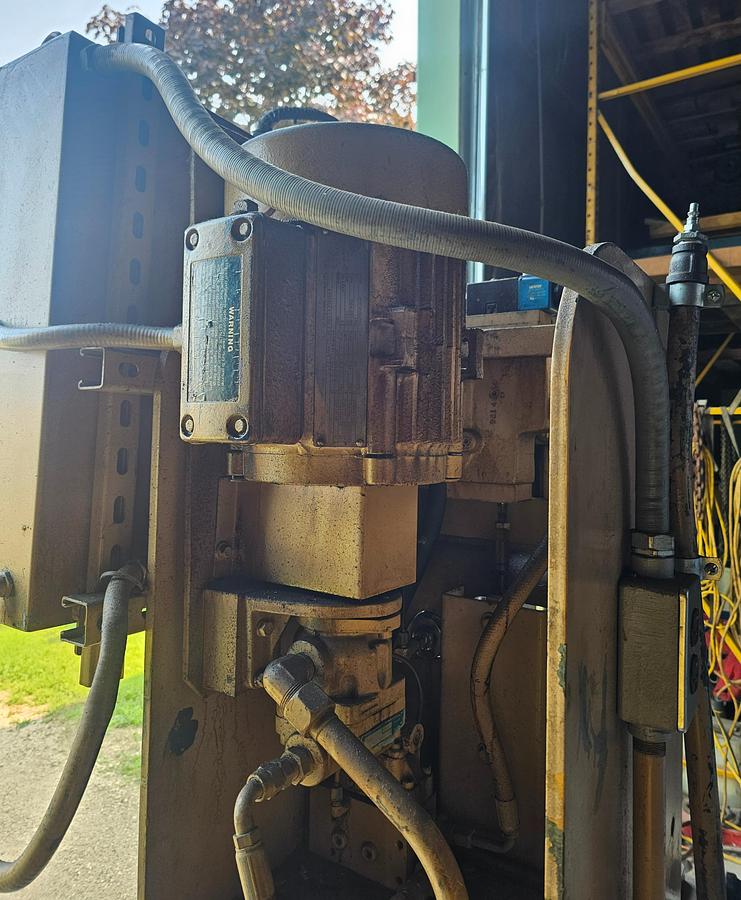

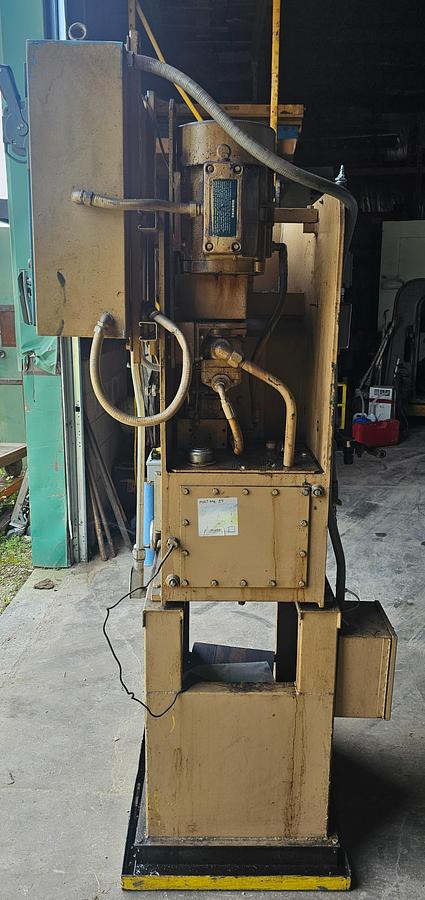

• Integrated self-contained 5 HP hydraulic unit and reservoir for smooth, consistent pressing cycle speeds.
• Precise pressure adjustment valve to dial in exact tonnage for delicate assembly or high-force forming.
• Compact bench-top footprint easily mounted to standard shop workbenches or dedicated press stands.

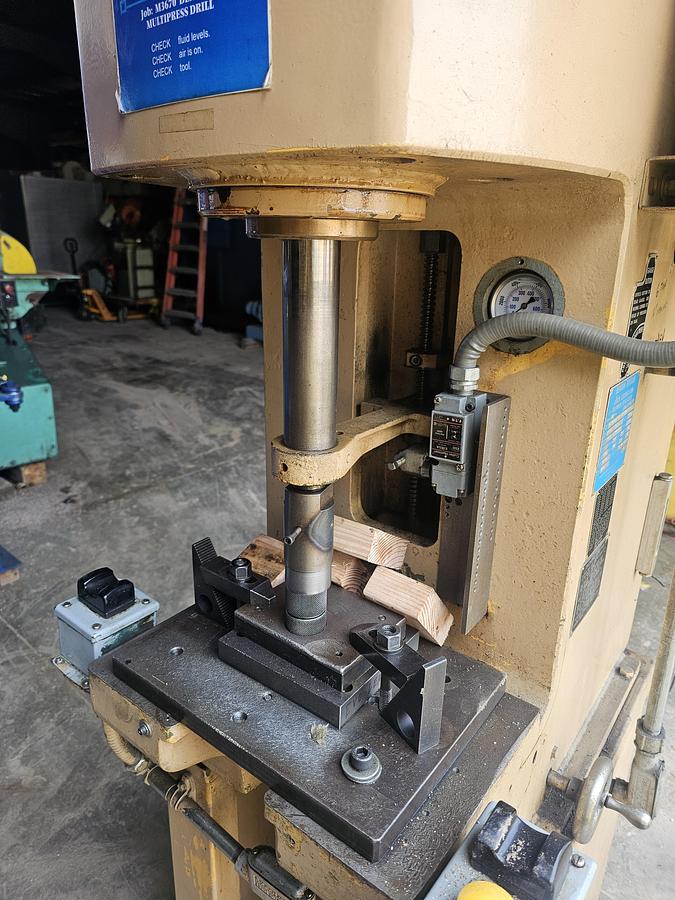

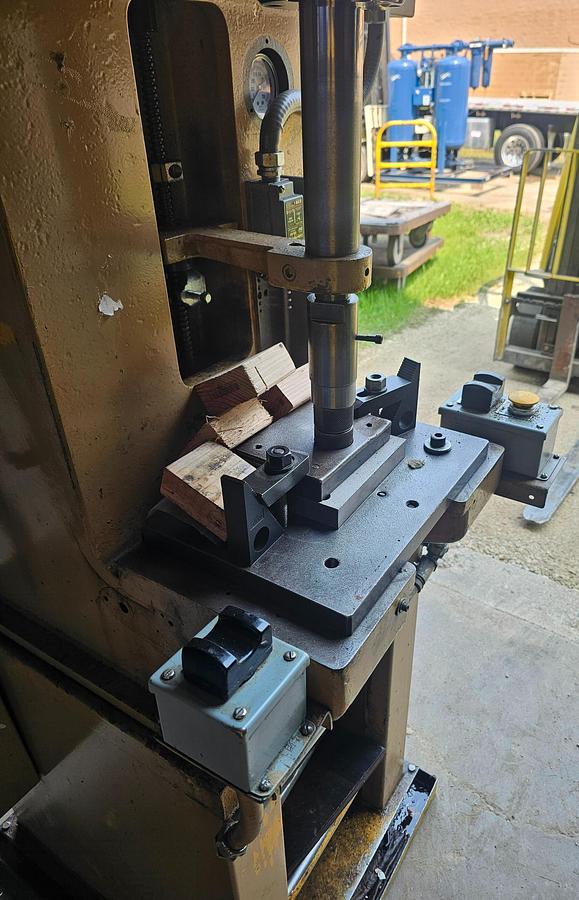

• Standard U-slot bed arrangement for easy part loading, drop-through die clearance, and tooling setup.
