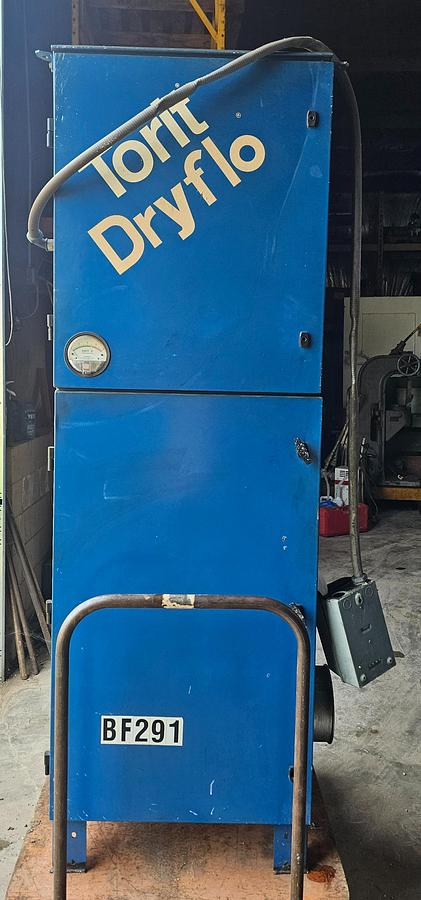

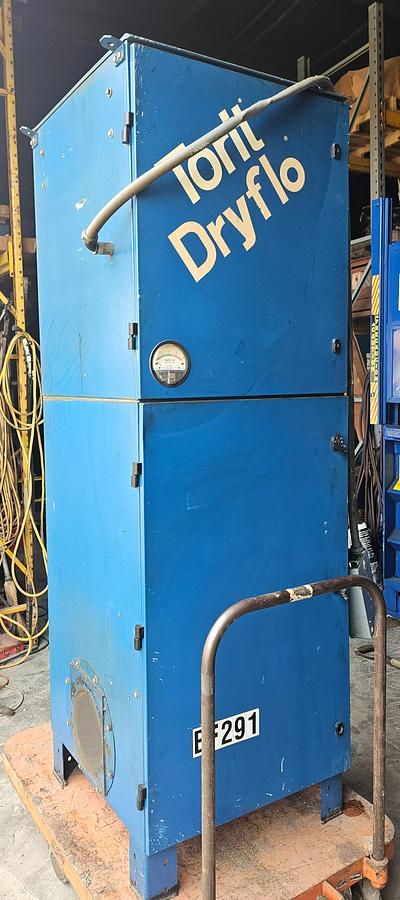

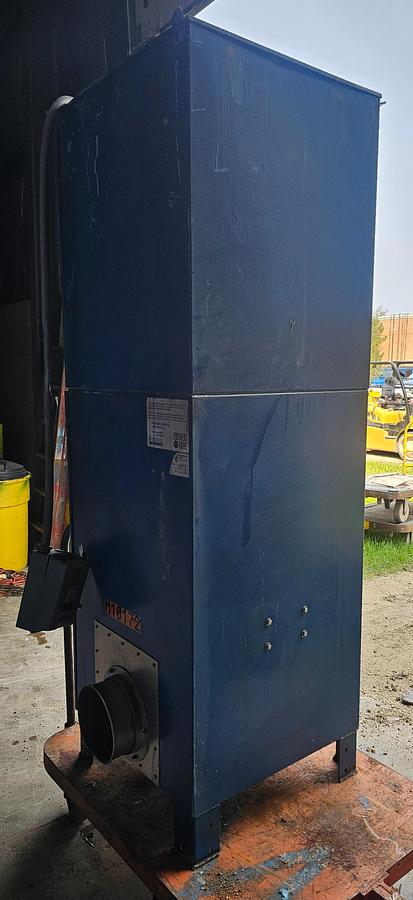

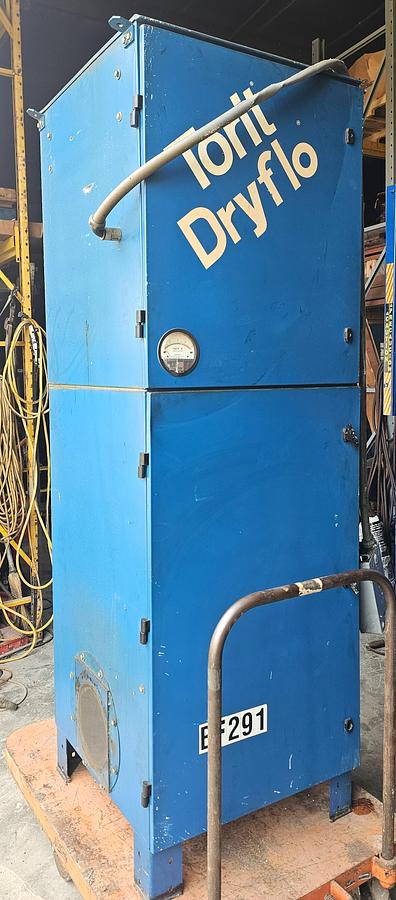

Donaldson Torit DMC-D1 Dryfit Mechanical Mist Collector

Model: DMC-D1

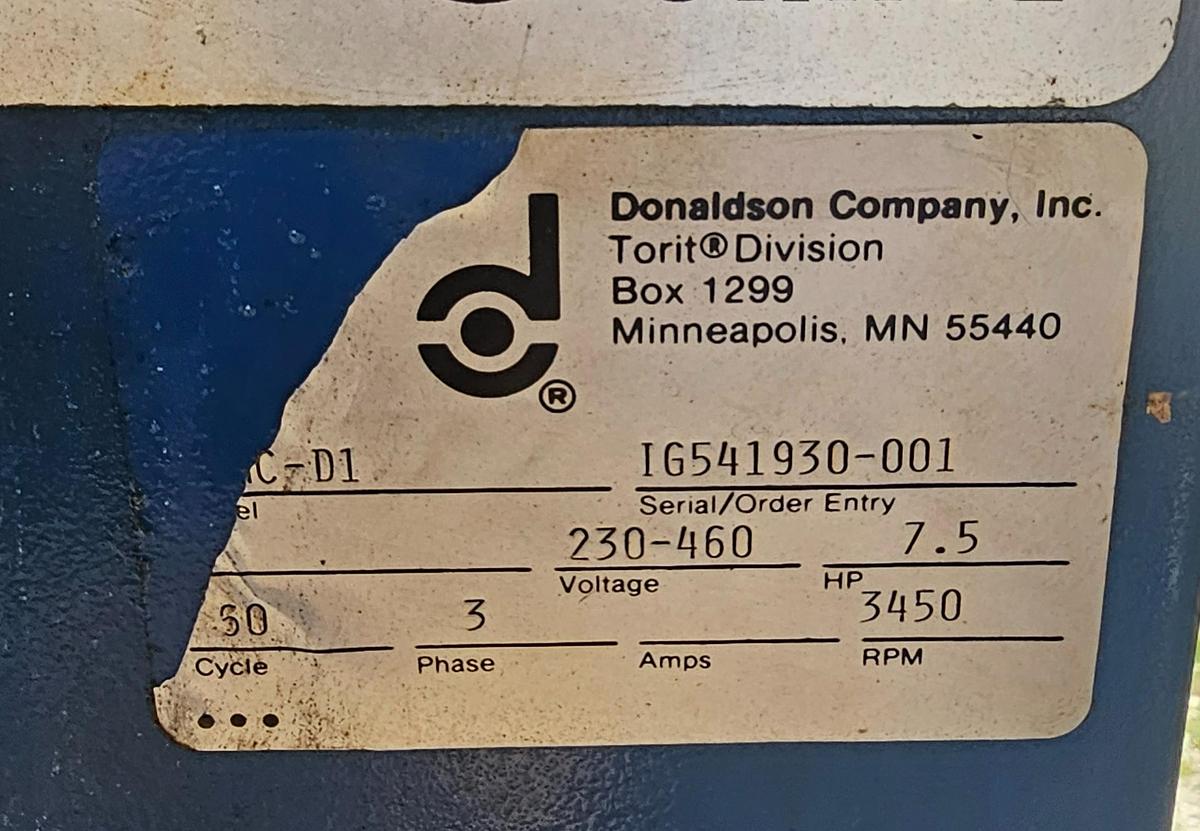

Serial Number: IG541930-001

Overview

Up for sale is a Donaldson Torit DMC-D1 Dryfit Mechanical Mist Collector. Engineered for source-capture extraction, the DMC-D1 is designed to eliminate airborne coolant mist, oil smoke, and fine particulate generated by CNC machining centers, lathes, surface grinders, and metal-cutting equipment.

By capturing mist directly at the enclosure and draining liquid back to the machine, this unit improves shop air quality, prevents coolant buildup on floors, and protects workplace electronics.

Technical Specifications

• Collector Type: Multi-Stage Mechanical Mist & Oil Extractor
• Nominal Airflow: 1,000 – 1,200 CFM
• Filter System: Multi-stage mechanical filter arrangement (mesh pre-filter + high-efficiency main filter cartridge)
• Motor: Integrated blower motor package, 3-Phase
• Inlet Size: Top/Side duct inlet connection
• Drain Connection: Bottom fluid drain port for oil/coolant recovery back to machine sump
• Mounting Configuration: Direct machine-mount, overhead suspension, or stand-mounted
• Approximate Dimensions (L x W x H): 30" x 30" x 52"
• Approximate Weight: ~400 lbs

Key Features

• High-efficiency mechanical filtration design continuously separates liquid mist from clean exhaust air.
• Built-in lower fluid drain allows collected coolant/oil to recycle straight back into the machine sump.
• Compact footprint easily integrates directly above CNC machine enclosures or on adjacent floor stands.
• Heavy-duty steel cabinet construction built for industrial plant environments.
• Includes Leg Extension Stand
