Global Industrial BM45 45-Gallon Flammable Safety Cabinet, 2-Door Self Closing

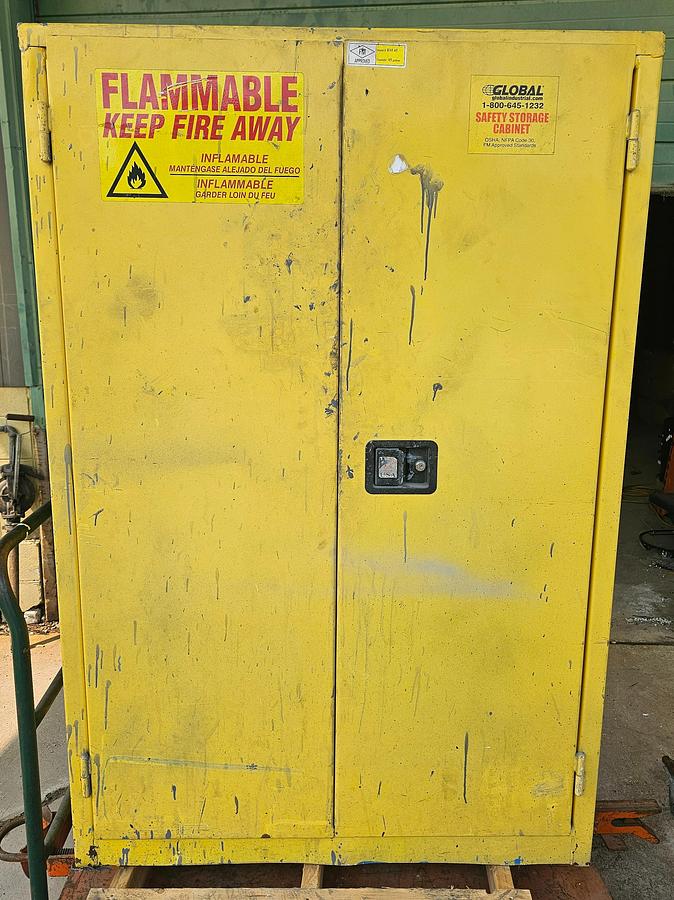

Global Industrial Model BM45 Flammable Safety Cabinet

Overview

The Global Industrial BM45 (Model 244108) is a 45-gallon, high-capacity flammable liquid storage cabinet engineered to meet OSHA 1910.106 and NFPA Code 30 standards for the safe containment of volatile chemicals, paints, solvents, and fuels. Built with double-wall welded 18-gauge steel, it features 1.5 inches of insulating air space and dual 2-inch vents with built-in flame arrestors to prevent fire propagation.



Technical Specifications

• Capacity: 45 Gallons (Holds up to (9) 5-gallon safety cans)
• Doors: 2 Manual-Close Doors (180° opening angle) or Self-Closing (depending on specific sub-model)

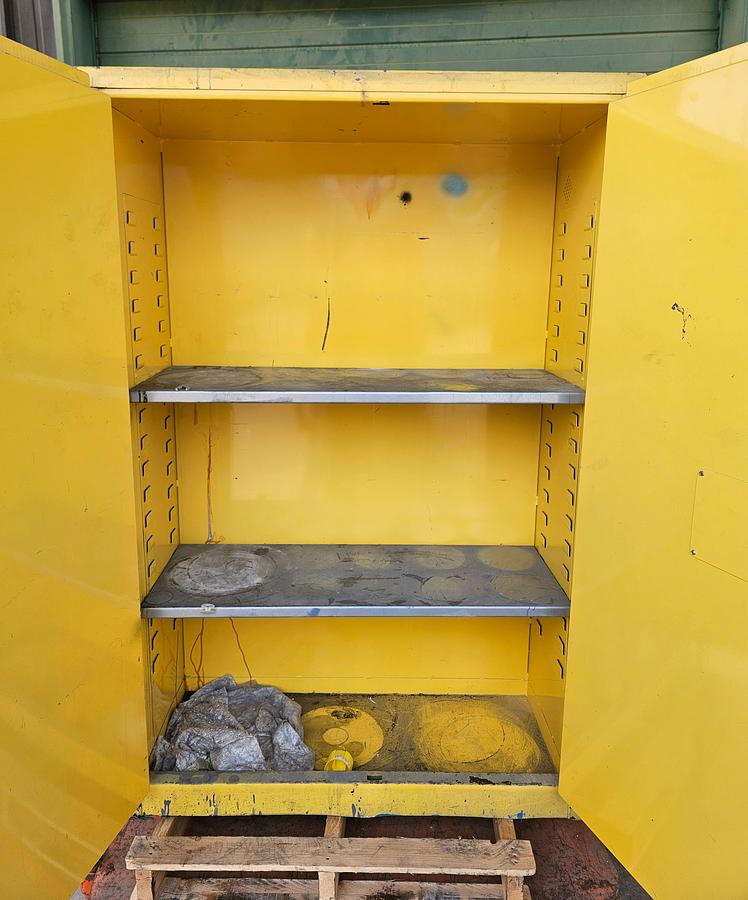

• Shelving: 2 Galvanized steel shelves (Adjustable on 3" centers)
• Shelf Capacity: 350 lbs per shelf
• Sump Capacity: 2" Leak-proof bottom containment sump
• Material: 18-Gauge double-wall welded steel with yellow powder-coat finish

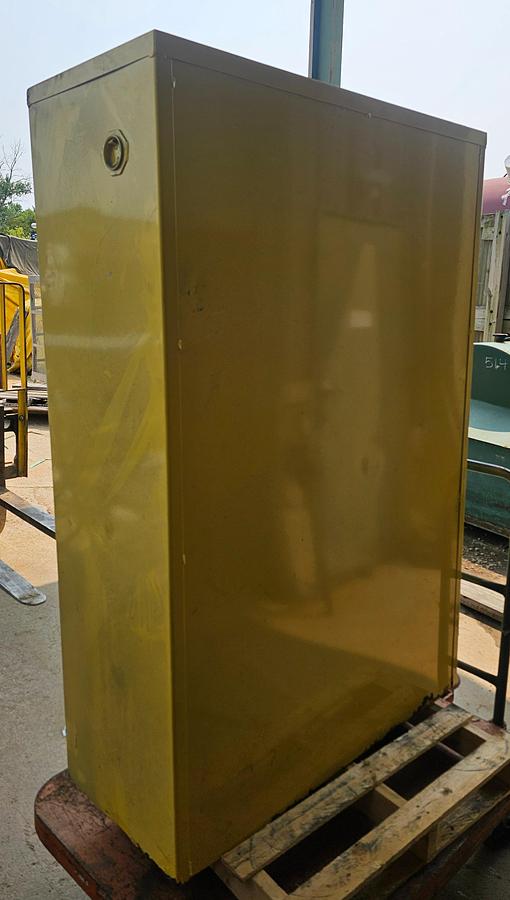

• Vents: Dual 2" NPT flame-arrestor vents (Side mounted)

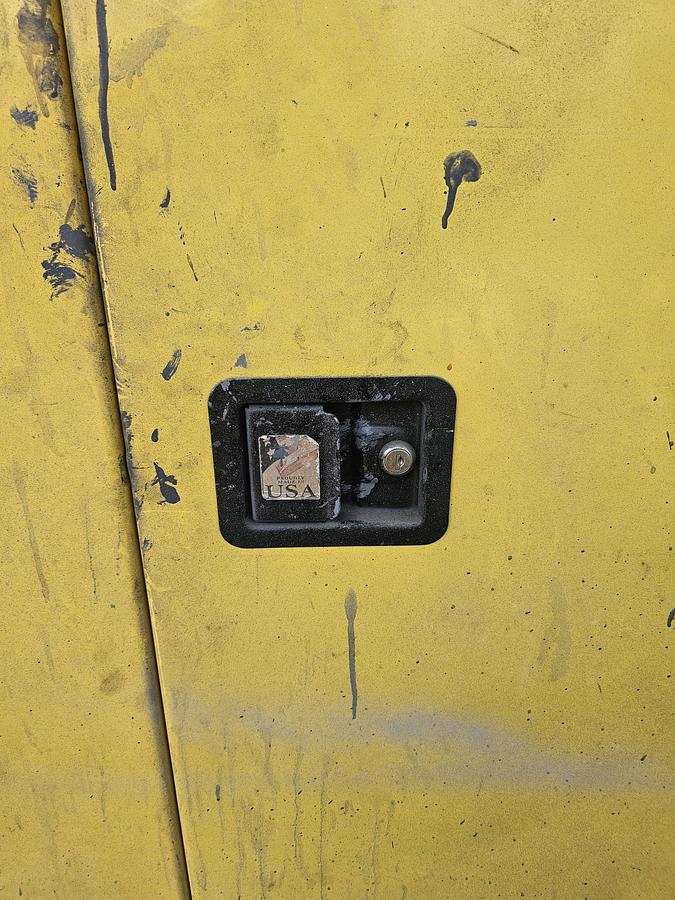

• Locking Mechanism: 3-point key lock system with paddle handle
• Exterior Dimensions: 43" W x 18" D x 65" H
• Interior Dimensions: 39.5" W x 14.5" D x 60.5" H

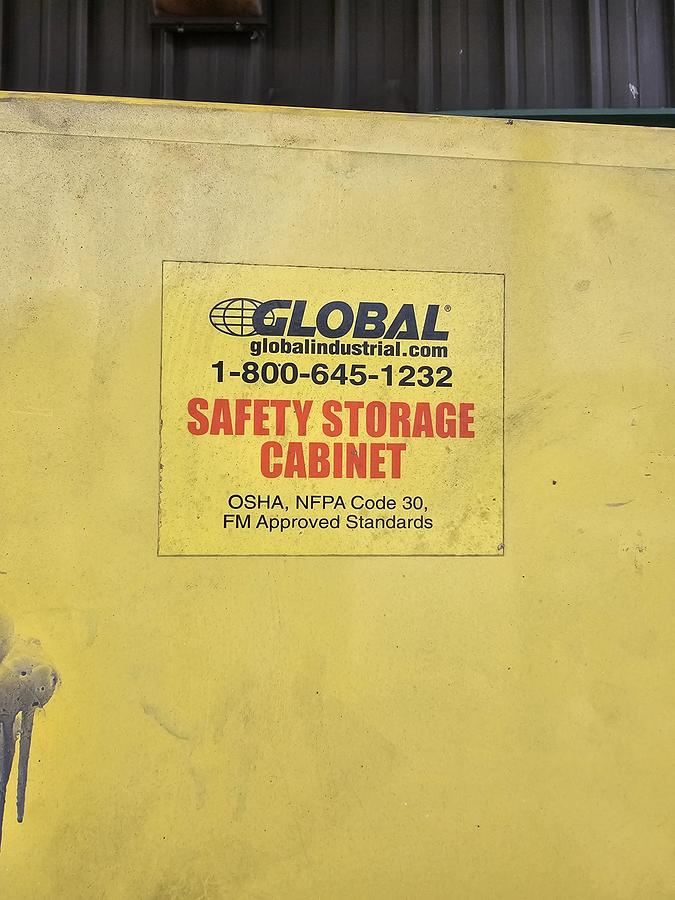

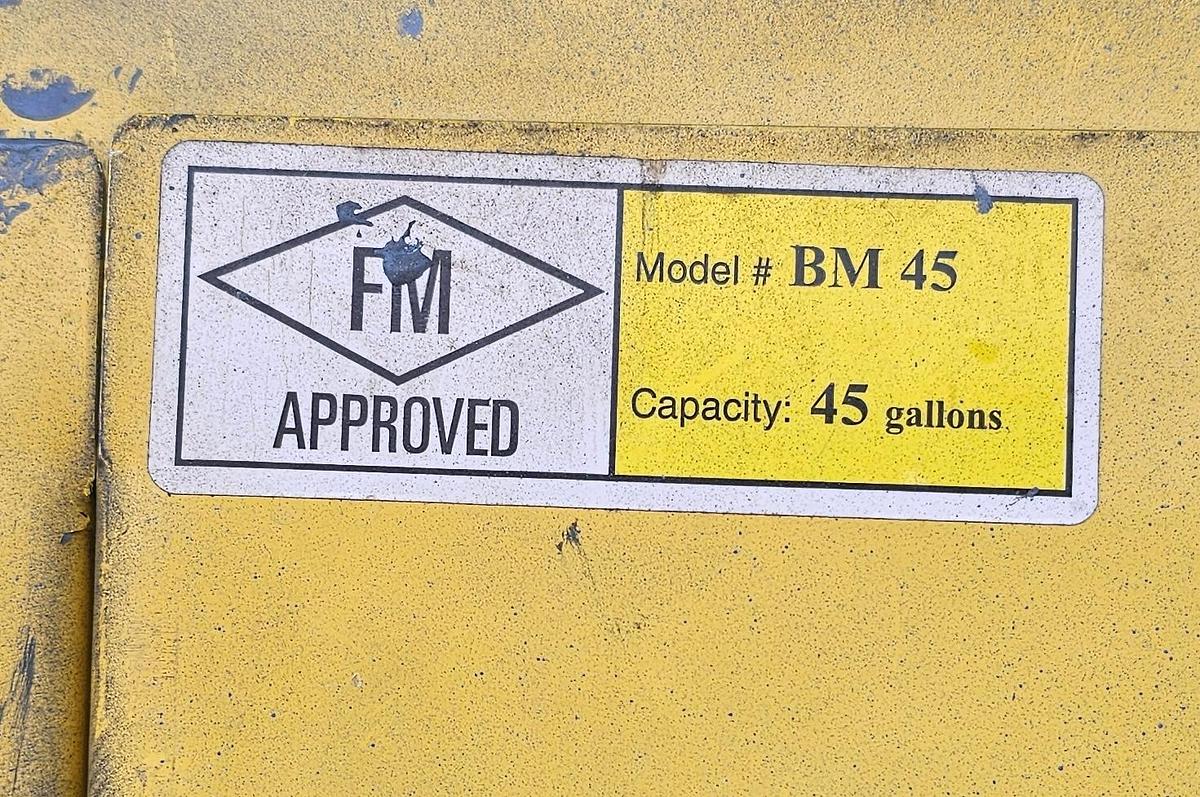

• Compliance: OSHA 29 CFR 1910.106, NFPA Code 30, FM Approved
• Approximate Weight: ~295 lbs
