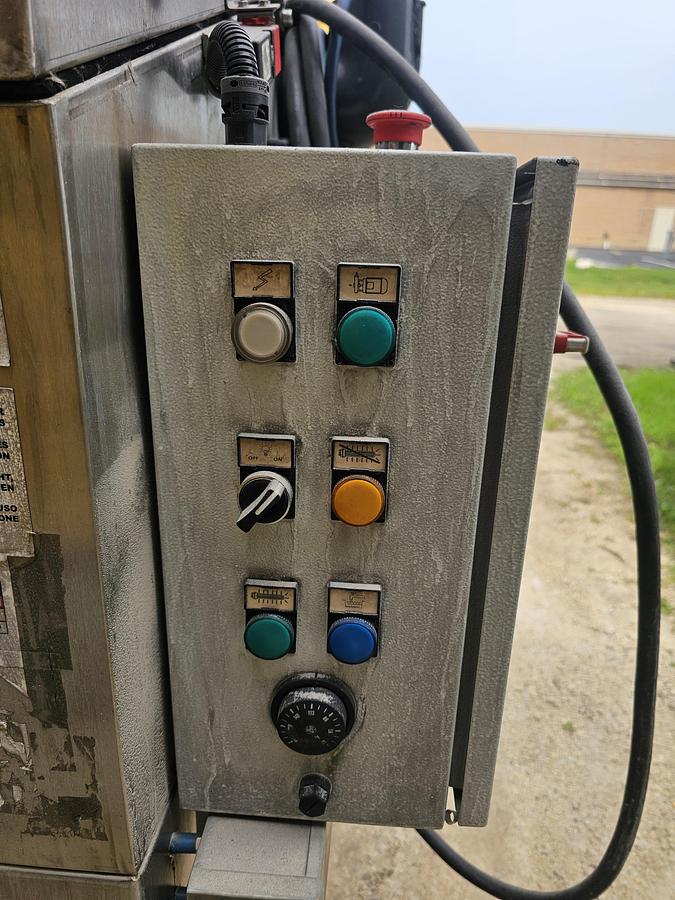

2018 Magido USA HP25M High-Pressure Heated Parts Washer

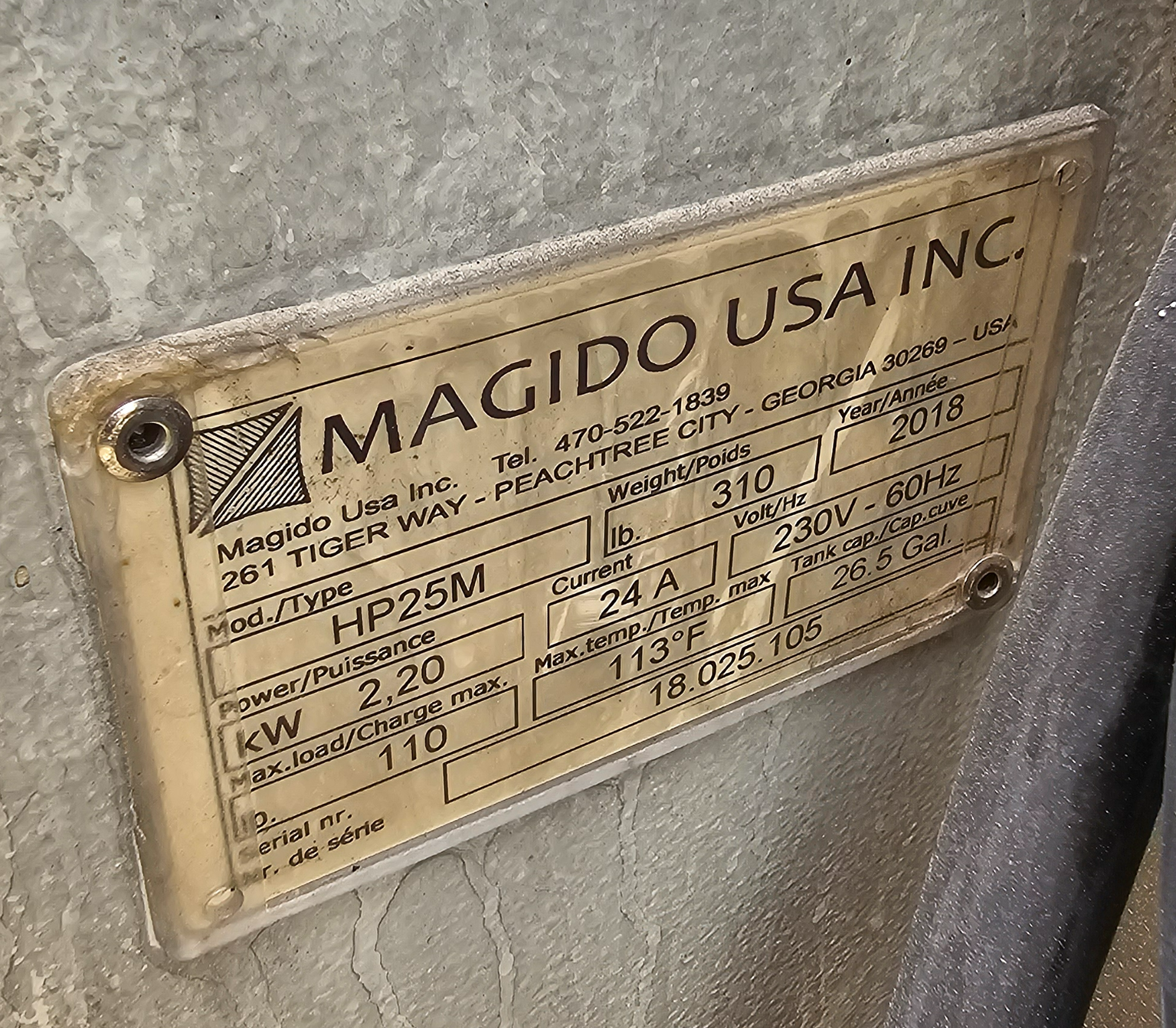

Model: HP25M (HP-25)

Year of Manufacture: 2018

Construction: 304 Stainless Steel

Overview

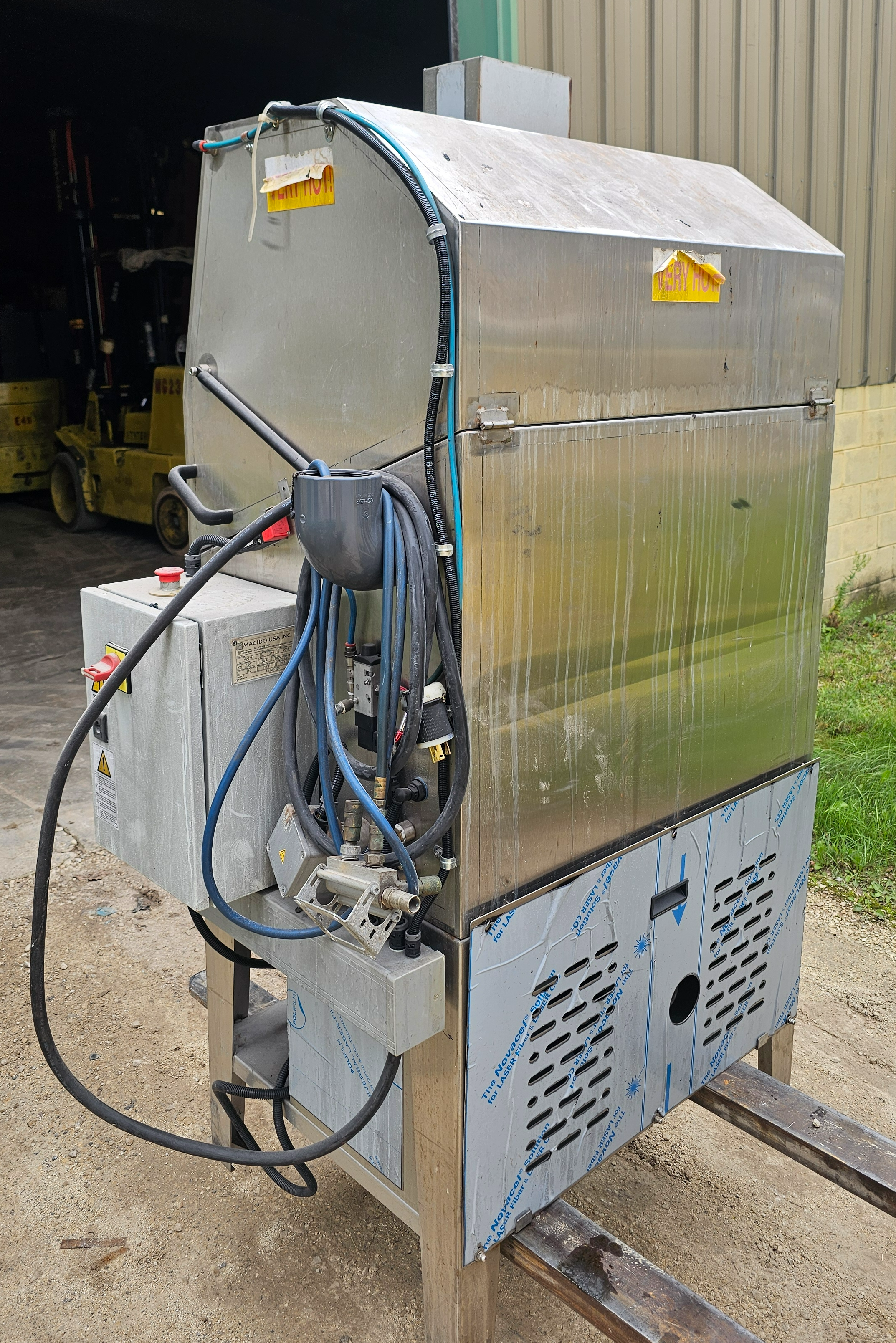

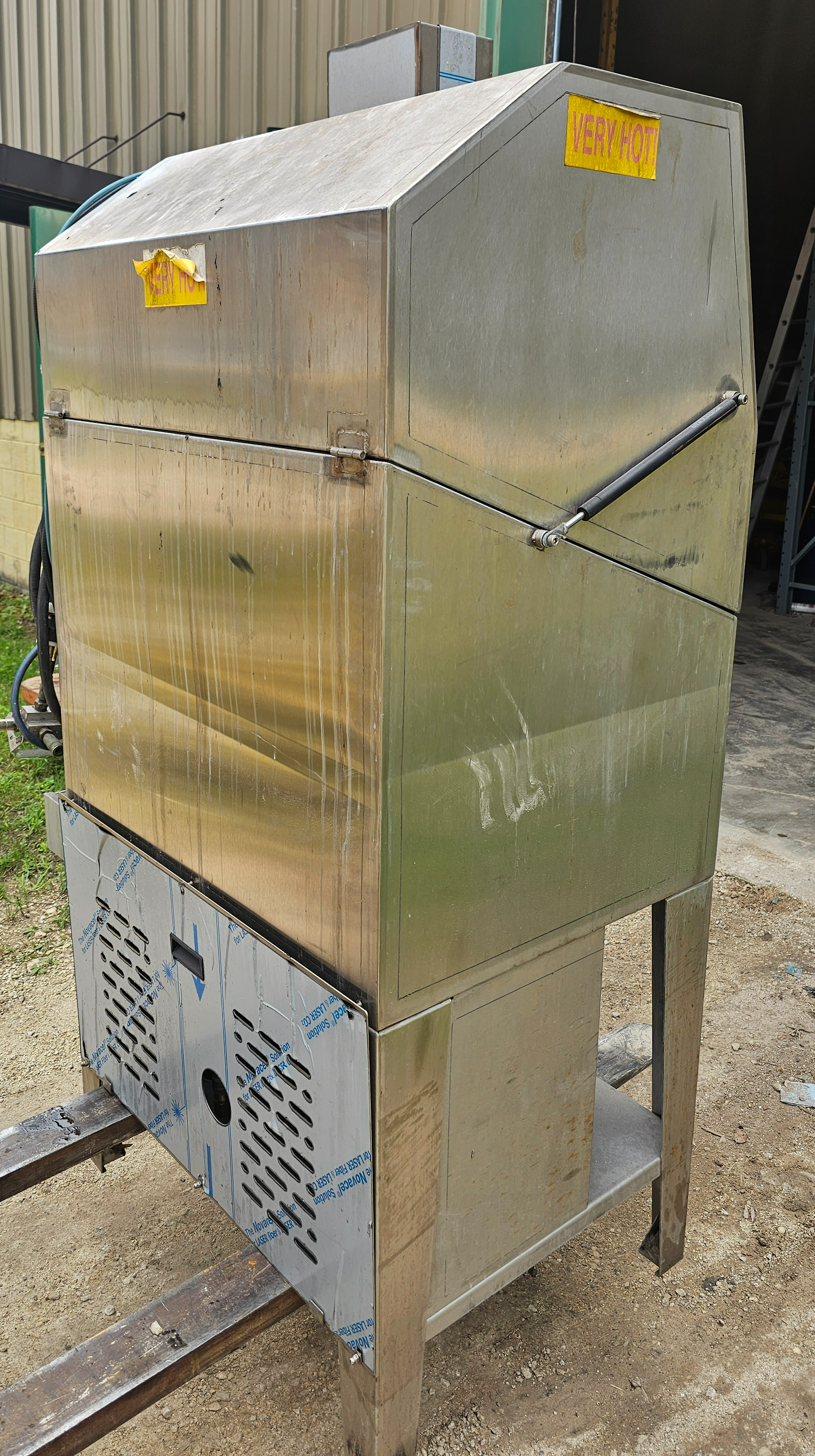

Up for sale is a 2018 Magido USA HP25M High-Pressure Heated Parts Washer. Constructed entirely of industrial-grade 304 stainless steel, this aqueous manual wash cabinet is designed for precision degreasing and rapid cleaning of heavy shop parts without using harsh solvents.

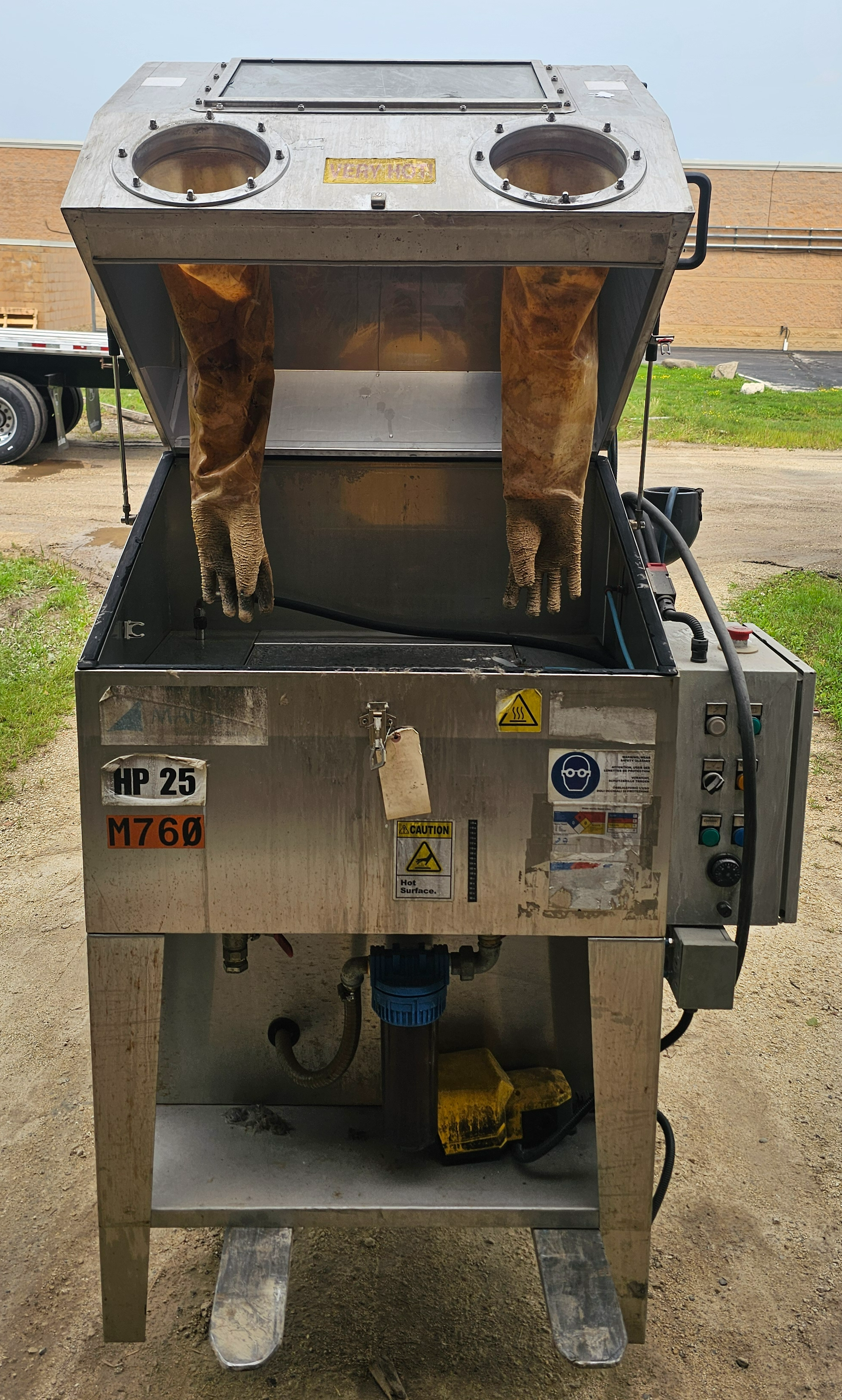

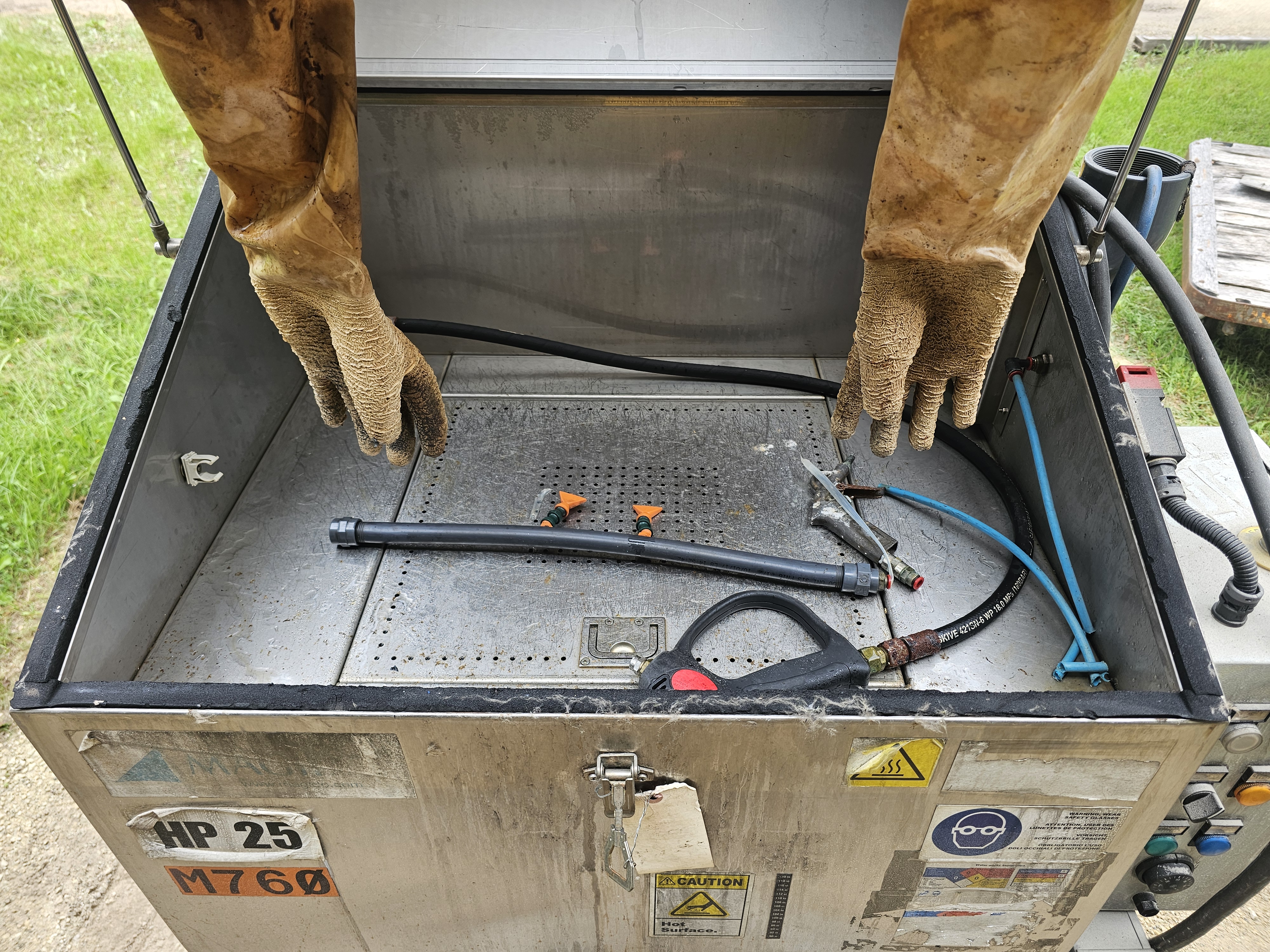

Featuring an enclosed glove-box cabinet with an internal LED-lit workspace and foot-pedal activated spray wand, the HP25M delivers up to 870 PSI of heated water-based cleaning solution directly to deep blind holes, engine blocks, castings, and machined components.

Technical Specifications

• Cabinet Material: Heavy-Gauge AISI 304 Stainless Steel
• Work Area Dimensions (L x W x H): 23.5" x 31" x 19.5"
• Load Capacity: Up to 350 lbs
• High-Pressure Pump: 2 HP Piston-Drive Pump (Up to 870 PSI @ 3.7 GPM)
• Fluid Reservoir Capacity: 38 Gallons (Recirculating Closed-Loop System)
• Heating System: 3 kW Electric Immersion Tank Heater with Adjustable Thermostat

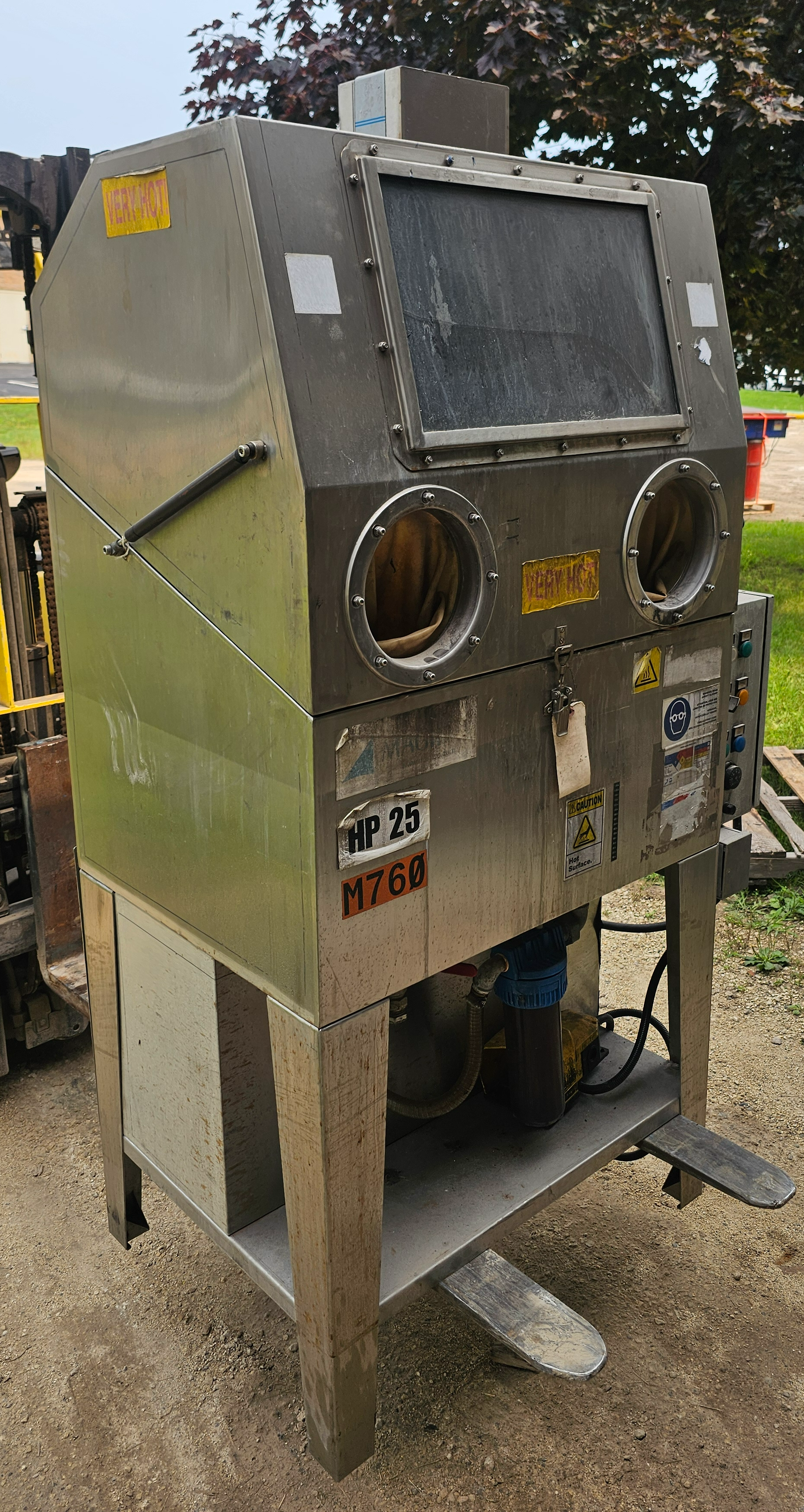

• View Window System: Sealed Glass Viewport with Window-Clearing Air Blower
• Air Auxiliary: Integrated Manual Air Blowoff Gun (Requires ~80 PSI Shop Air)

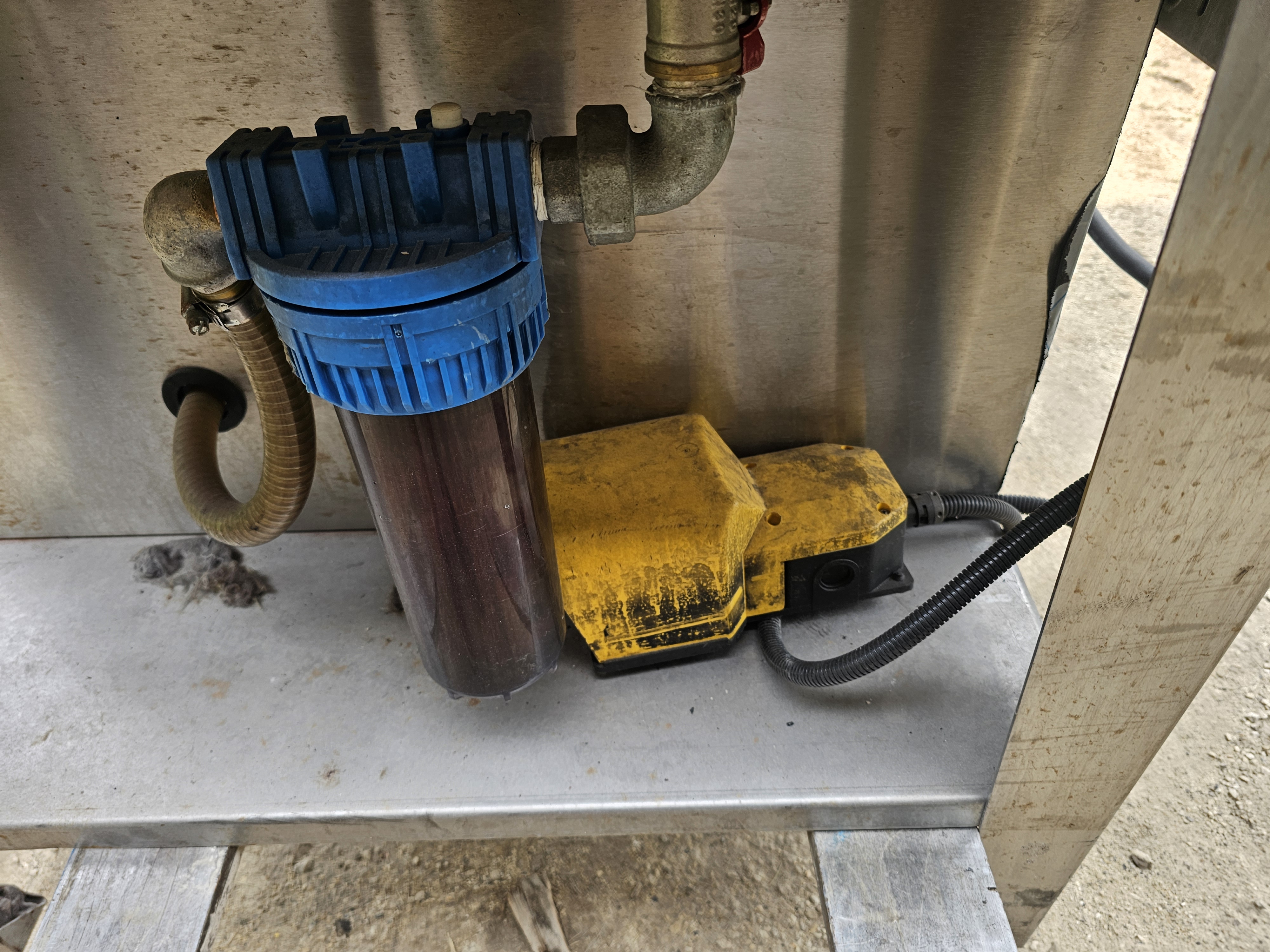

• Filtration: Inline Cartridge Filter with Lift-Out Debris Basket

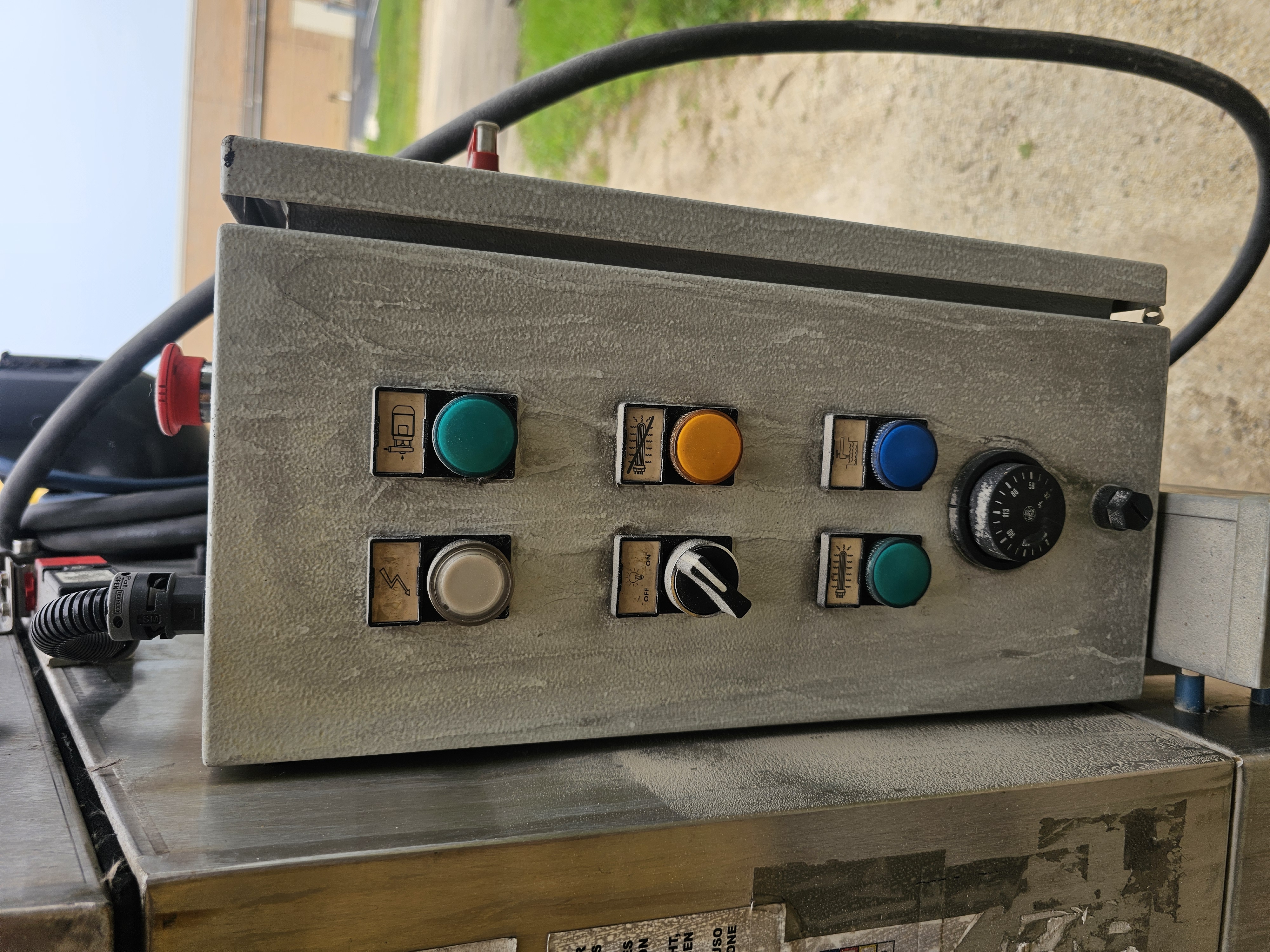

• Power Requirements: 220V / 1-Phase / 60Hz / 30A (24V Control Circuit)
• Overall Footprint (L x W x H): 37" x 45" x 79.5" (Lid Open)
• Approximate Dry Weight: ~320 lbs

Key Features

• Foot-pedal operation leaves both hands free to manipulate and wash complex parts inside the cabinet.
• 3 kW immersion heater accelerates grease and oil removal using environment-friendly aqueous detergents.
• High-pressure 870 PSI piston pump flushes out heavy sludge and machining chips rapidly.
• Window-clearing air system keeps the viewport clear of steam and overspray during high-temperature washing.
• All 304 stainless steel construction prevents rusting and extends machine life in harsh production environments.
• Includes integrated air blowoff gun for immediate part drying inside the cabinet.
