Empire Pro-Finish PF-3648 Industrial Abrasive Blast Cabinet System

With Empire DCM-80A Auto-Pulse Cartridge Dust Collector & Cyclone Reclaimer

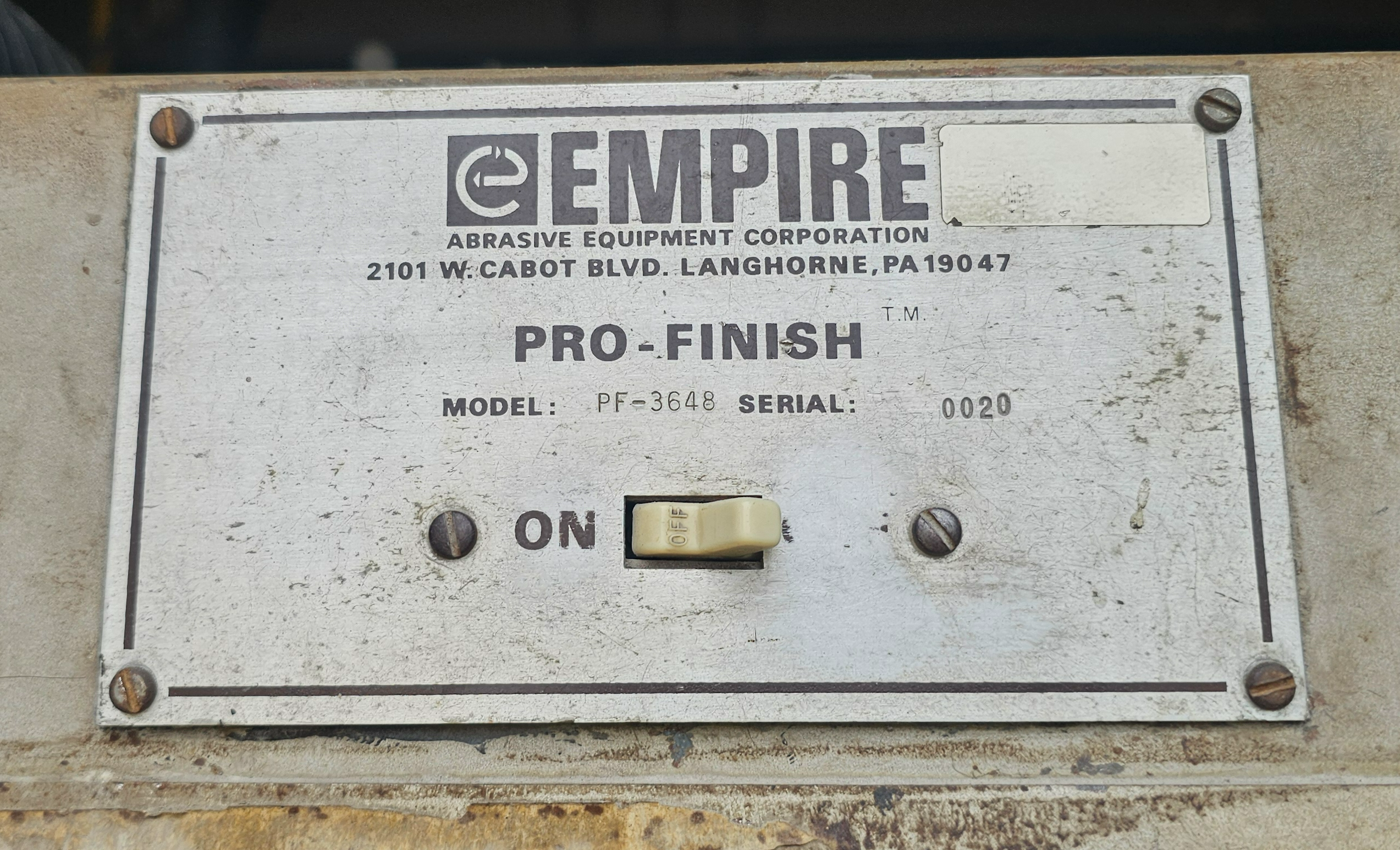

Model: Pro-Finish PF-3648

Serial Number: 0020

Dust Collector Model: DCM-80A

Work Envelope: 48" W x 36" D x 36" H

Overview

Up for sale is a complete, heavy-duty Empire Pro-Finish PF-3648 Industrial Abrasive Blast Cabinet System, Serial Number 0020, paired with an Empire DCM-80A Reverse-Pulse Cartridge Dust Collector. Engineered for production-grade surface preparation, scale removal, deburring, and precision finishing, this package represents Empire's premier setup for continuous-duty shop environments.

This industrial package includes a 48" x 36" blast cabinet with dual side access doors, a high-efficiency media reclaimer, and the upgraded DCM-80A 800 CFM dust collector. The DCM-80A features an automatic pneumatic reverse-pulse jet system that continuously cleans the primary cartridge filter during operation, maintaining maximum air turnover and crystal-clear operator visibility without losing suction.

Technical Specifications

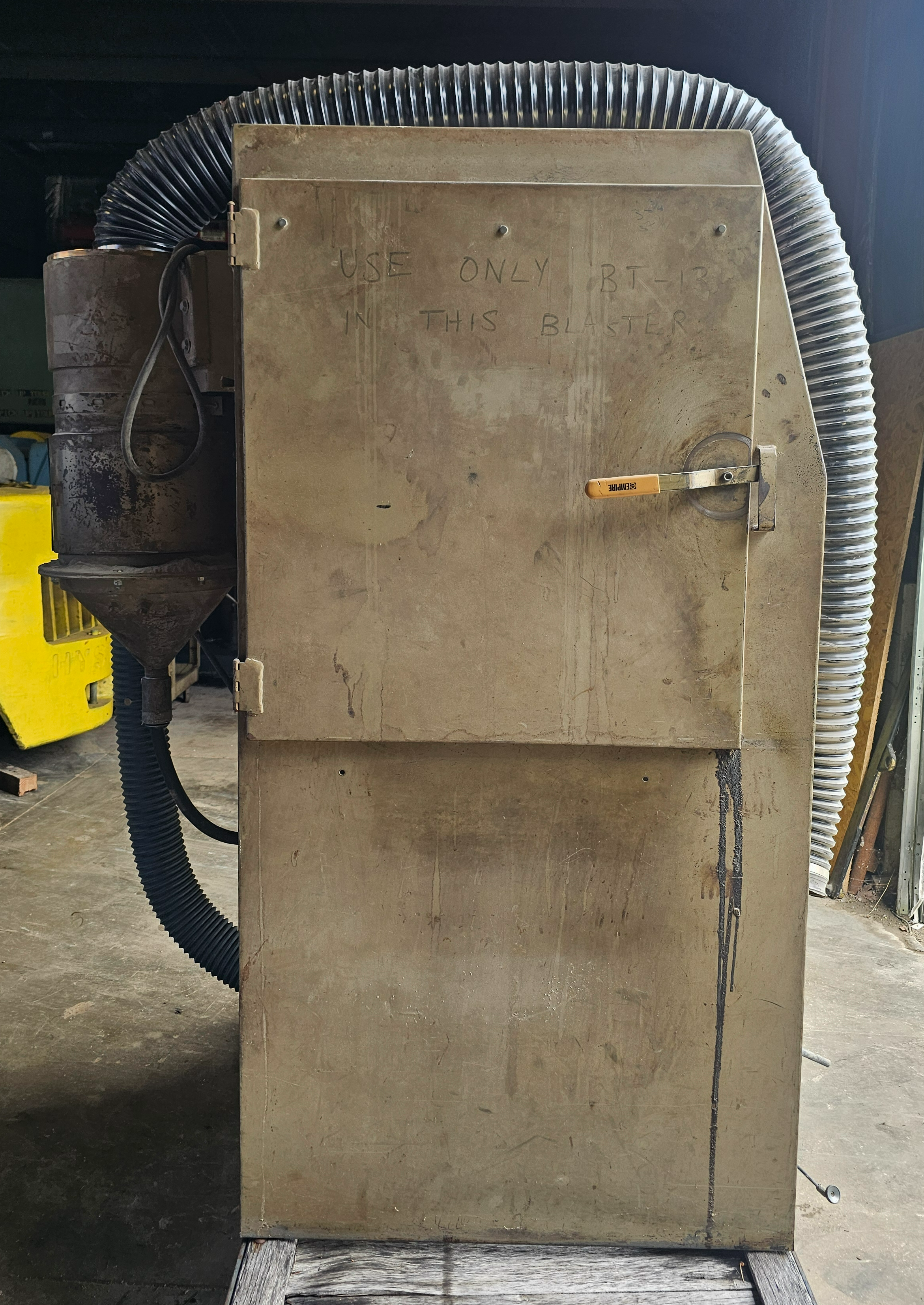

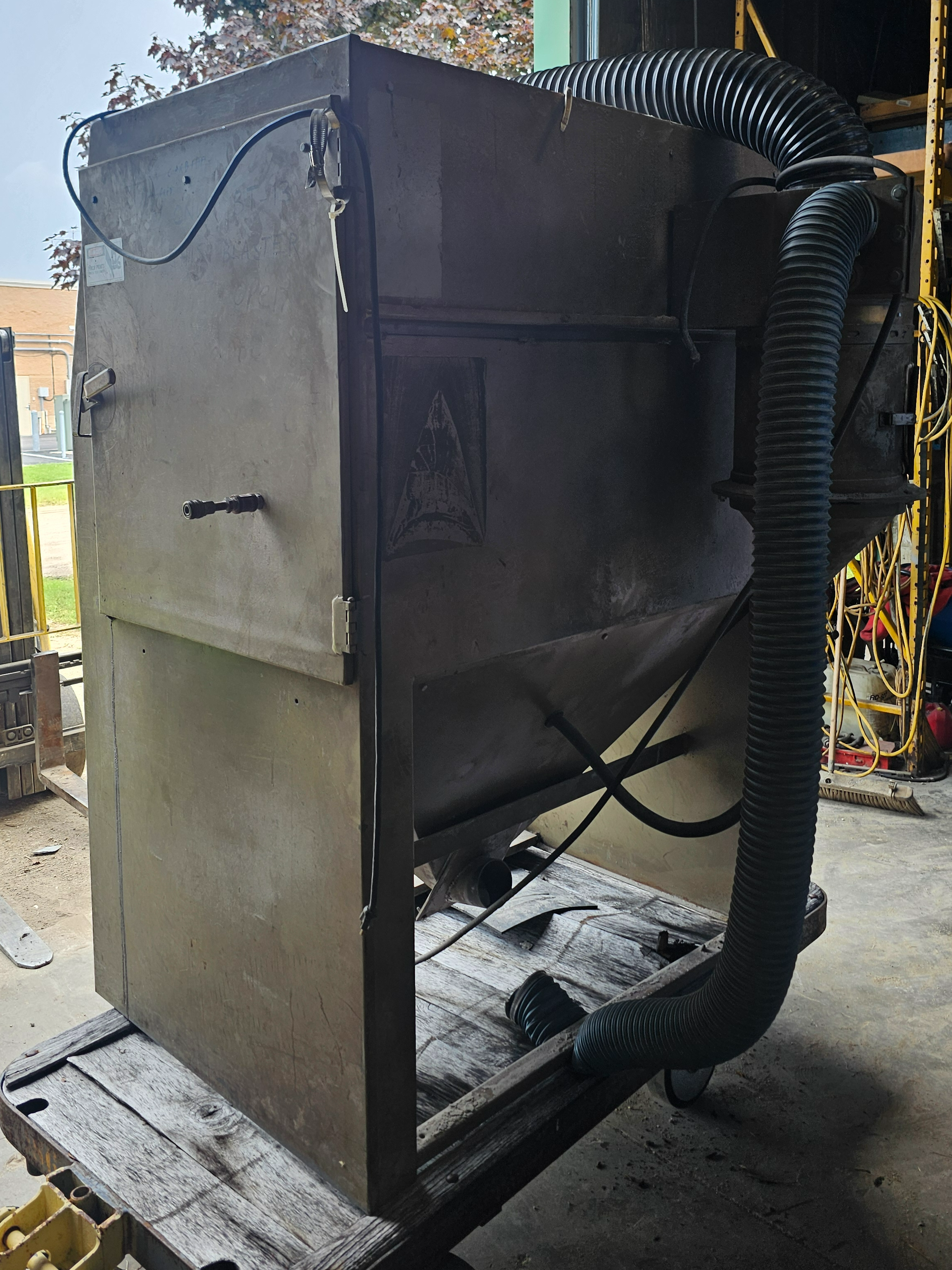

PF-3648 Blast Cabinet

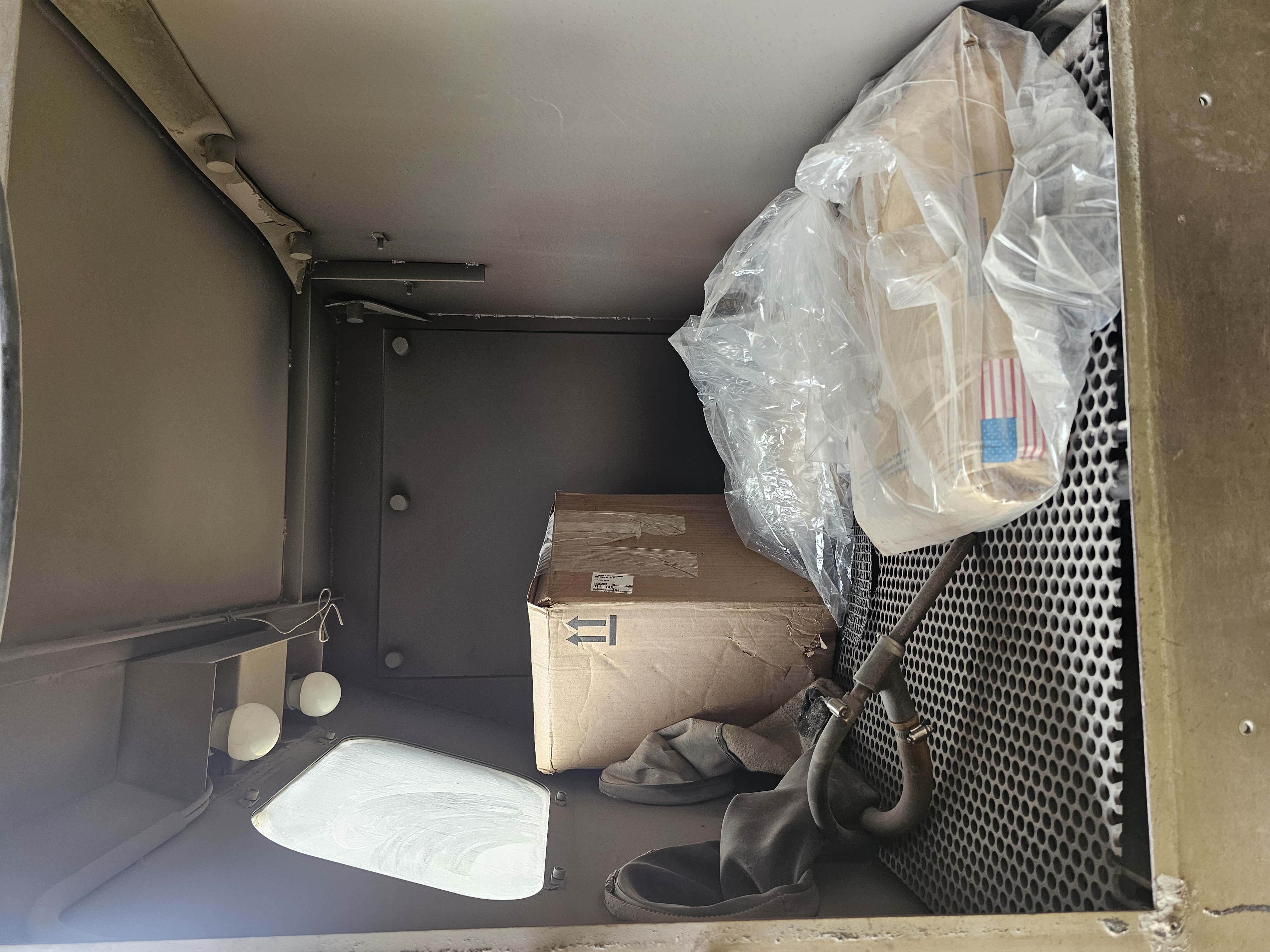

• Inside Working Dimensions: 48" W x 36" D x 36" H
• Overall Cabinet Footprint (W x D x H): Approx. 54" x 44" x 74" (excluding reclaimer/collector ducting)
• Access Doors: Dual side-loading doors equipped with safety interlocks
• Viewing Window: Safety glass viewport with quick-change protective Mylar shield
• Internal Lighting: High-output internal lighting enclosure

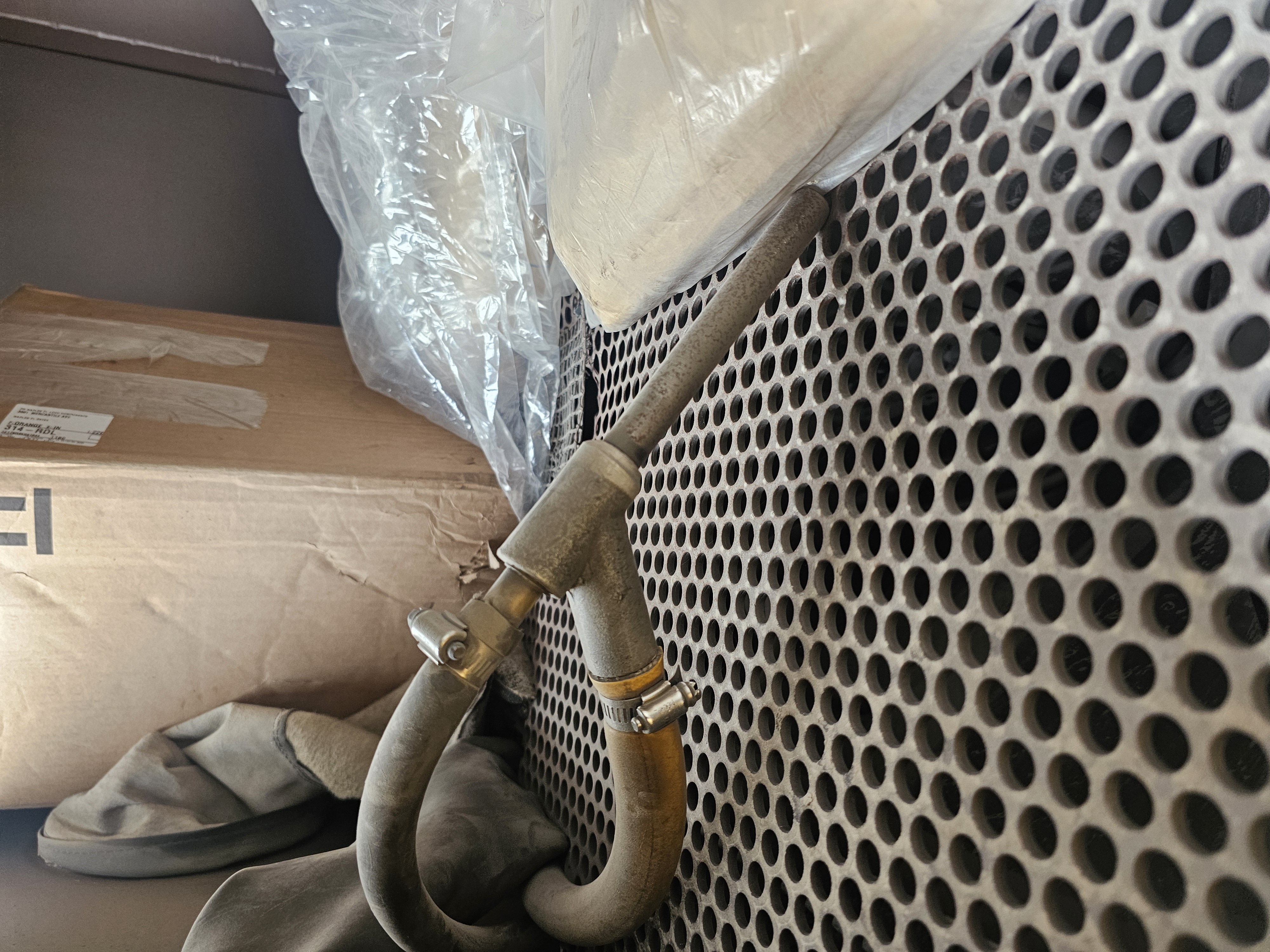

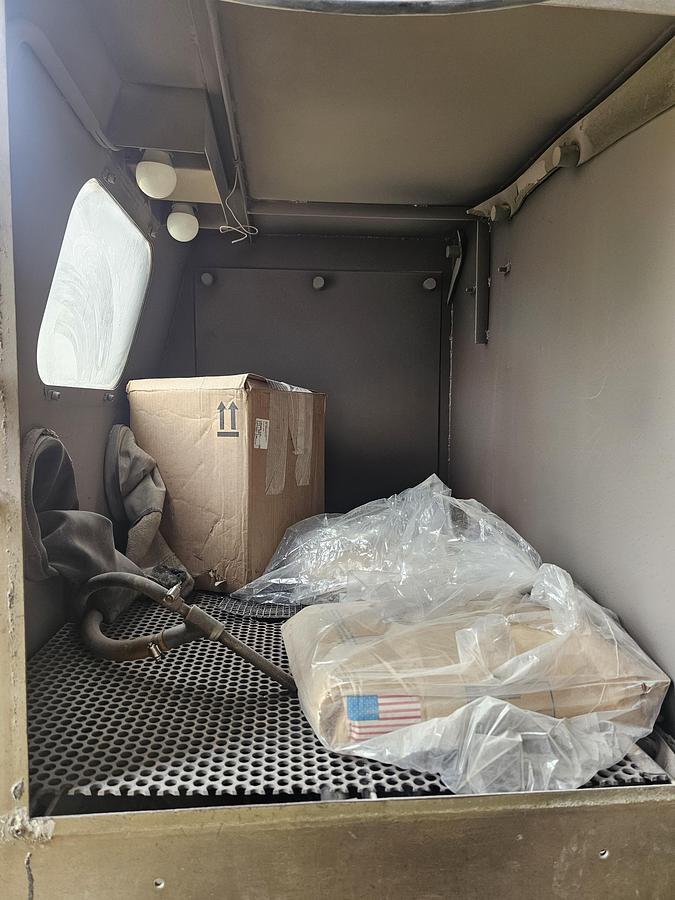

• Work Grate: Heavy-duty steel floor grating rated for heavy castings and shop fabrications
• Supported Media: Glass bead, aluminum oxide, steel shot/grit, ceramic, and plastic media

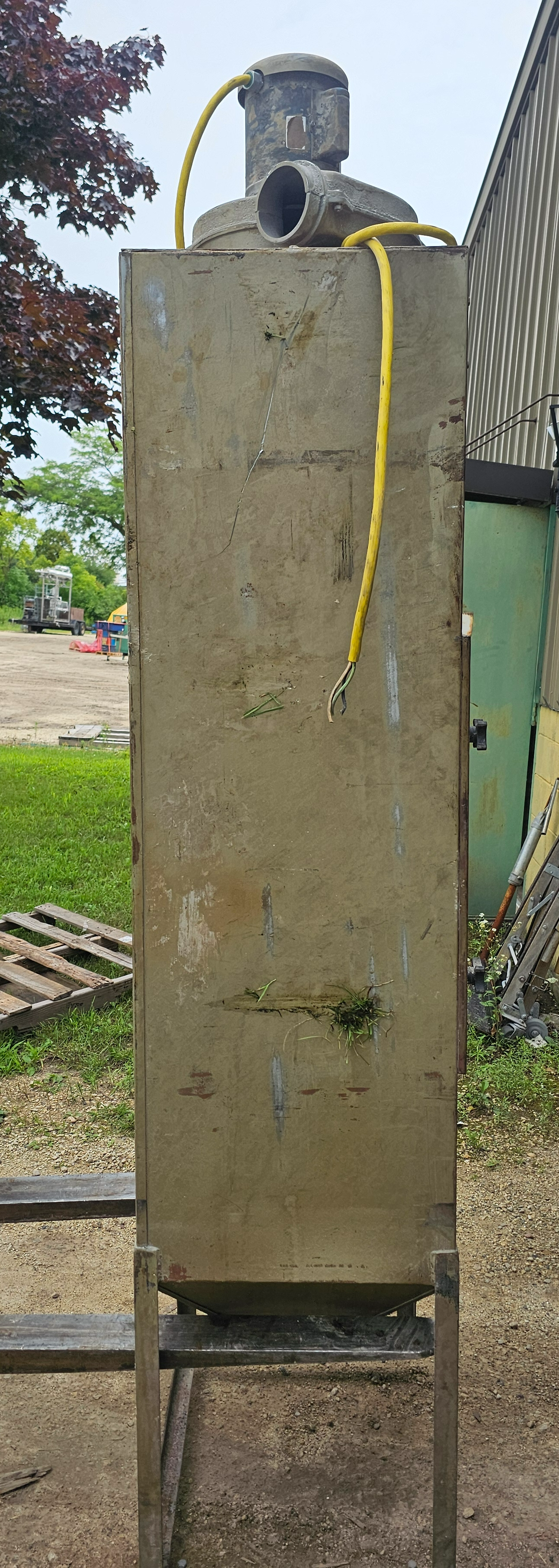

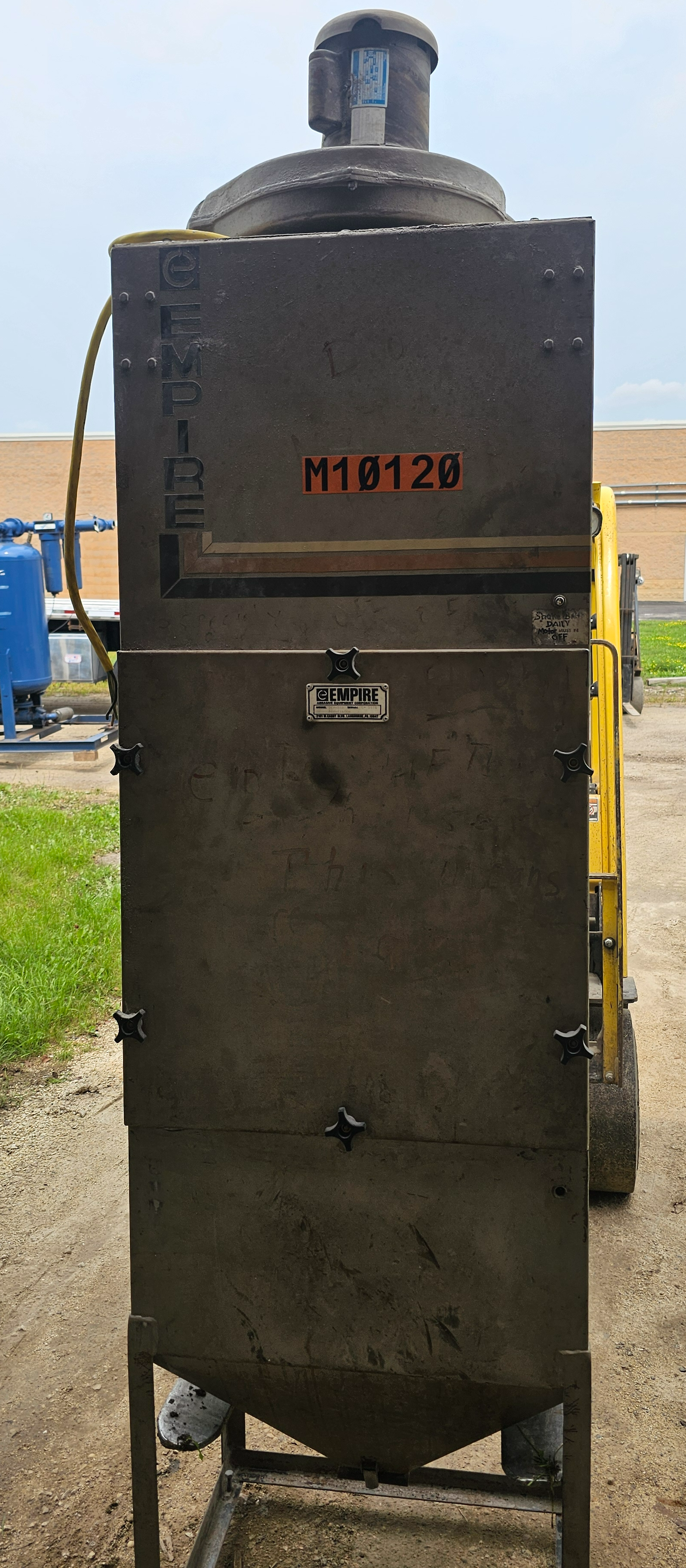

DCM-80A Dust Collector & Reclaimer System

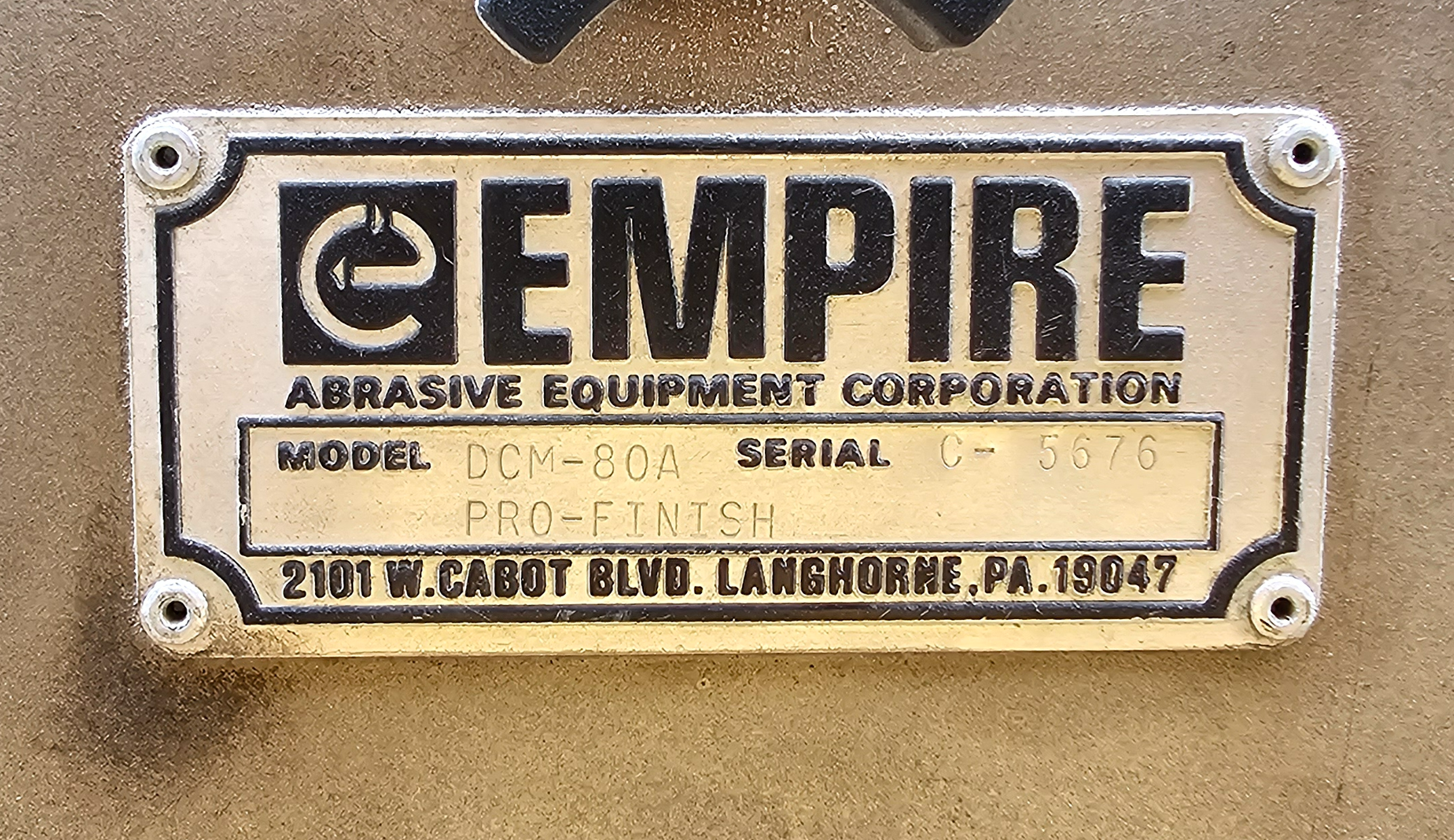

• Dust Collector Model: Empire DCM-80A
• Airflow Capacity: 800 CFM
• Filter Type: High-efficiency primary cartridge filter
• Cleaning Mechanism: Automatic pneumatic reverse-pulse jet blowdown system

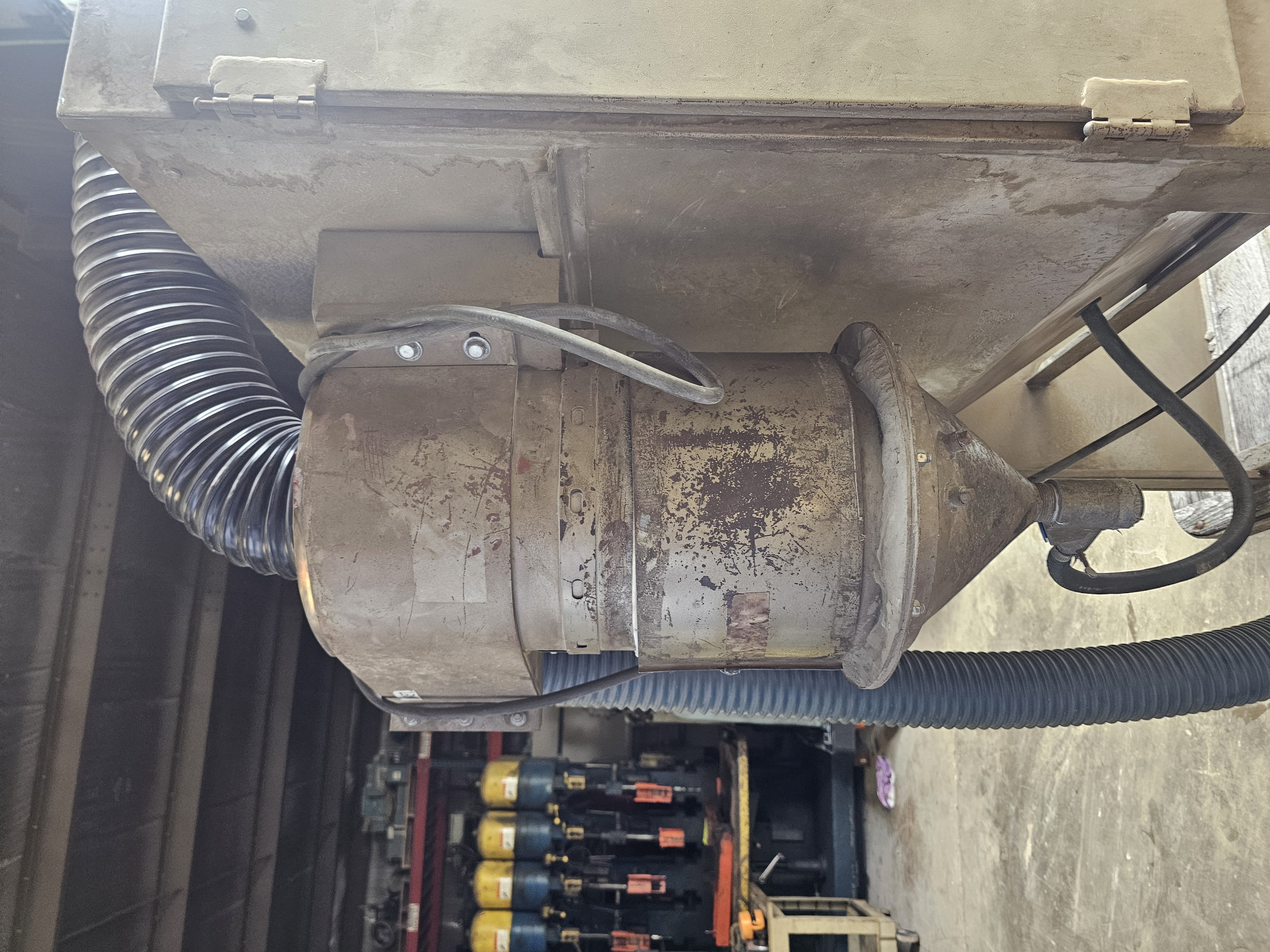

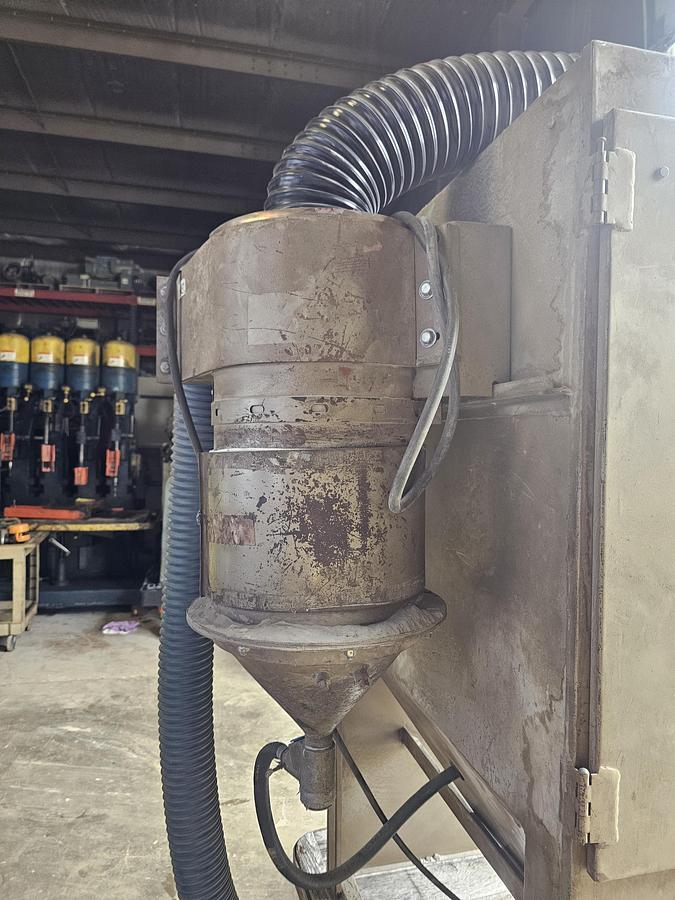

• Reclaimer: Tuned cyclone media separator for continuous media reclamation and dust extraction
• Compressed Air Requirements: 80–100 PSI (for blast delivery and automated pulse-jet cleaning)

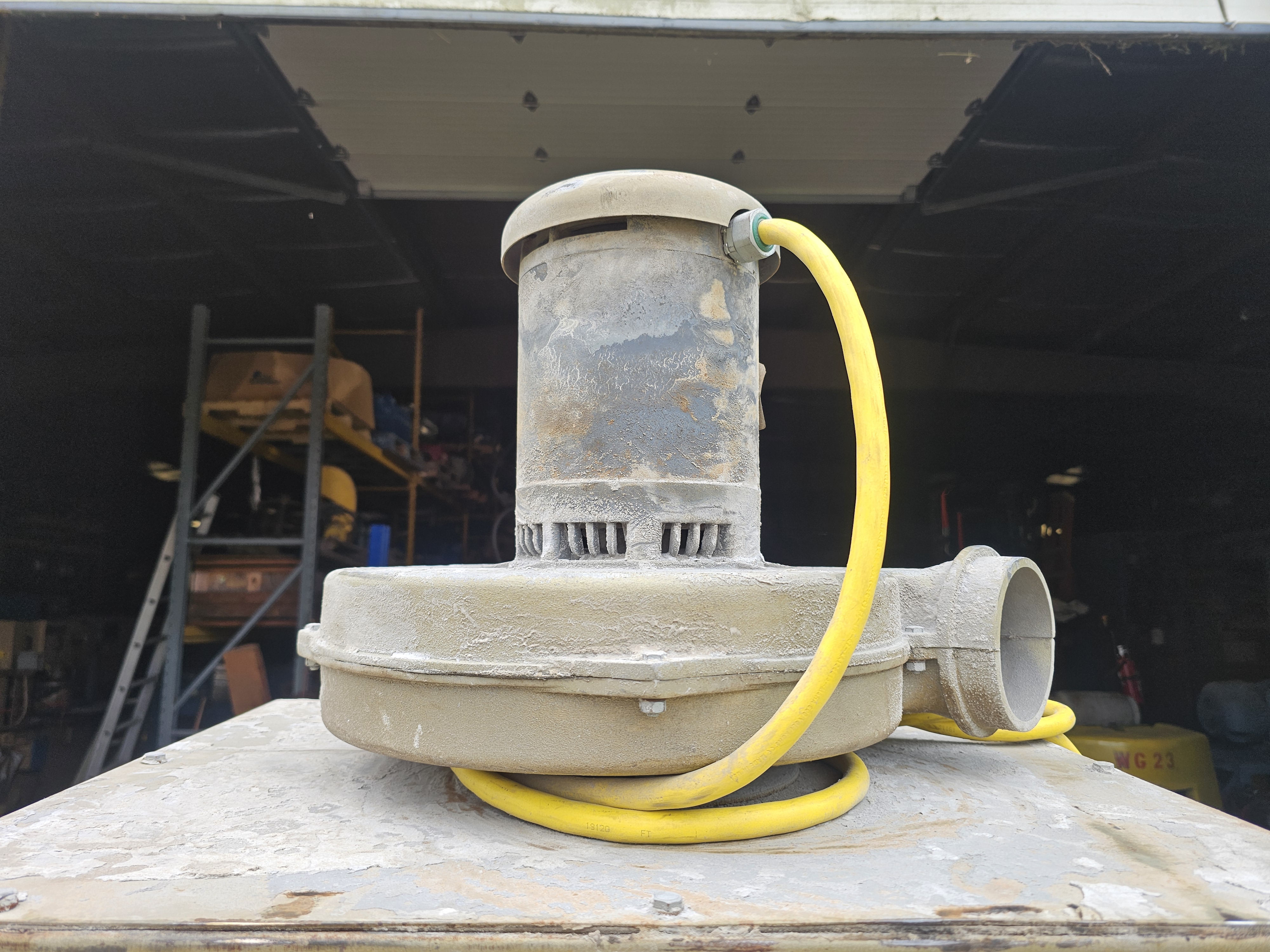

• Electrical Requirements: 115V / 230V / 460V, 3-Phase (dust collector blower motor)
• Combined System Weight: ~1,850 lbs

Key Features

• Automated Pulse-Jet Maintenance: The DCM-80A collector periodically blasts compressed air through the interior of the filter cartridge, knocking settled dust into the hopper to prevent clogging and pressure drop.
• Superior Cabinet Visibility: High 800 CFM ventilation keeps fine media dust and debris moving out of the working chamber rapidly.
• Continuous Media Reclamation: High-efficiency cyclone reclaimer separates fine dust from reusable abrasive media, significantly lowering media consumption costs.
• Heavy-Duty Construction: All-welded heavy-gauge steel cabinet body designed for long-term production use.
• Interlocked Dual Doors: Safety interlocks automatically stop media flow if a door is opened during operation.
