2-Ton Dimplex / Koolant Koolers Air-Cooled Industrial Chiller | WV0-2000-M | 460V

Dimplex Thermal Solutions (Koolant Koolers) 2-Ton Industrial Air-Cooled Chiller

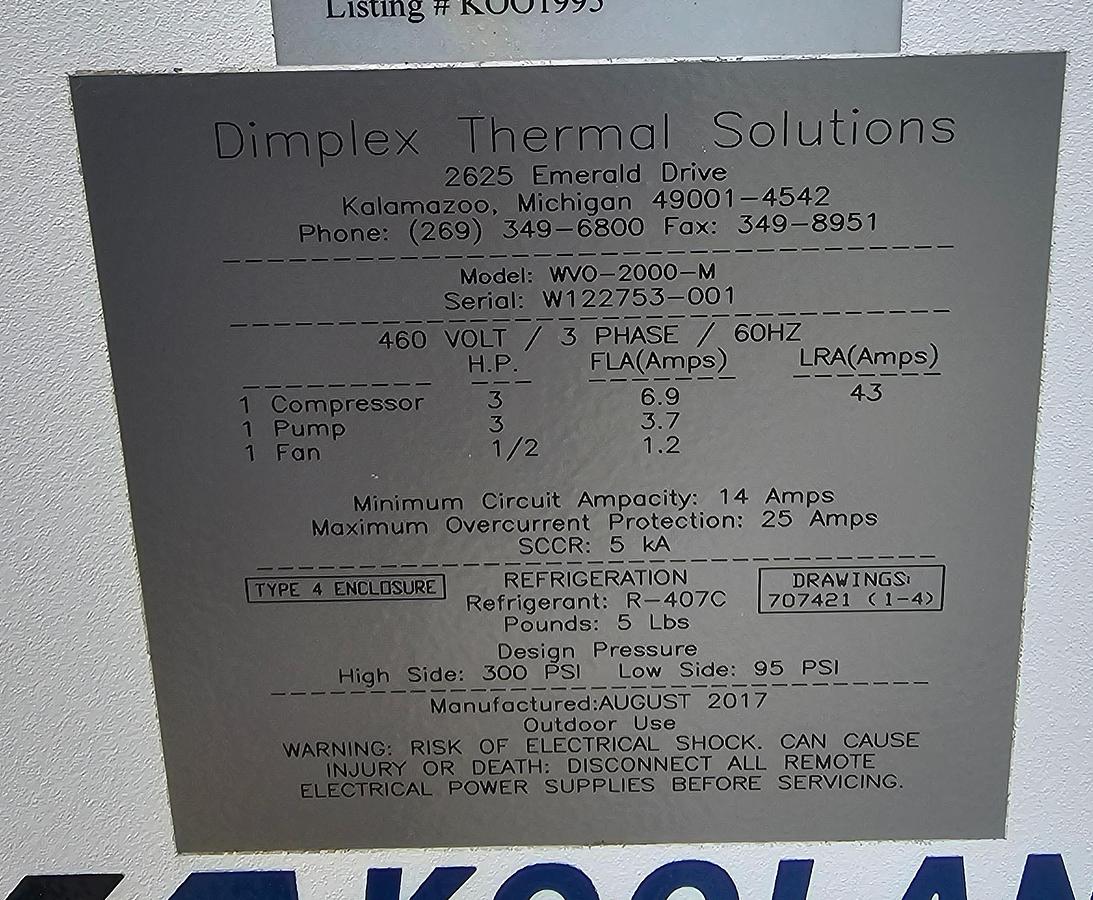

Model: WV0-2000-M

Serial Number: W122753-001

Overview

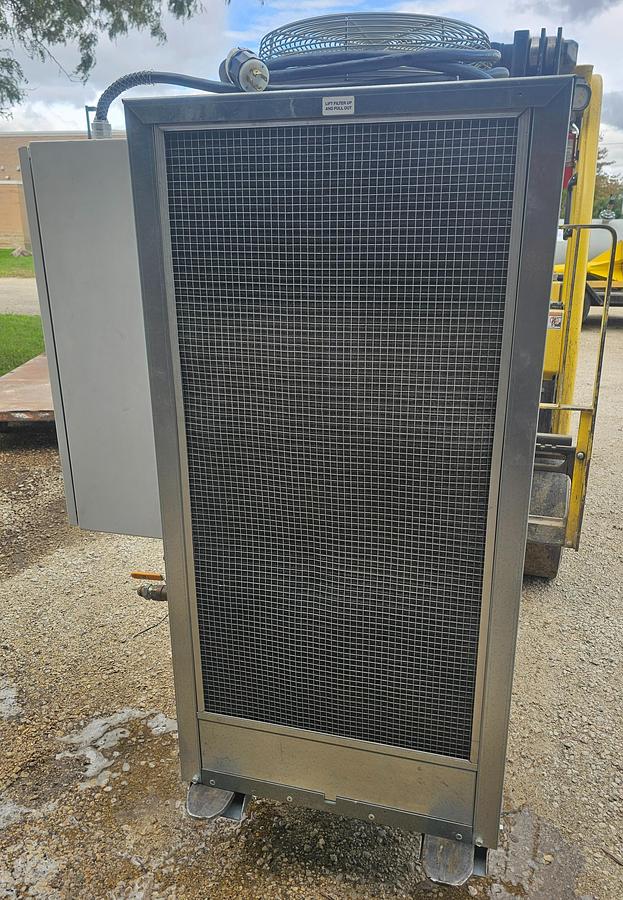

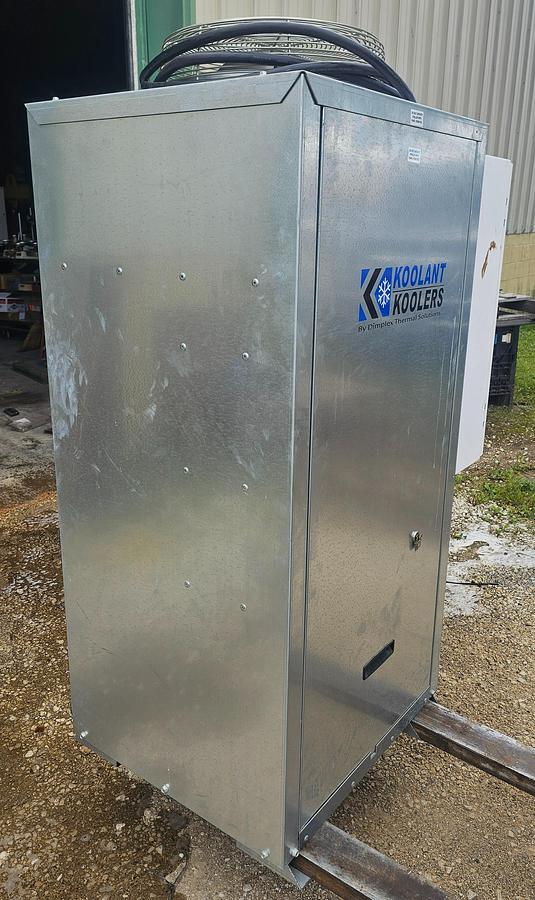

Up for sale is a heavy-duty Dimplex Thermal Solutions (Koolant Koolers) W-Series 2-Ton Industrial Fluid Chiller. Designed for demanding industrial process cooling applications, the W-Series features a closed-loop system equipped with a non-ferrous reservoir, stainless steel brazed plate evaporator, and a heavy-duty scroll compressor.

This outdoor-rated (WV0) configuration utilizes vertical air discharge and is built to deliver consistent temperature control and reliable continuous-duty operation across plastics, machining, medical, or general manufacturing processes.

Key Specifications

• Nominal Cooling Capacity: 2 Tons (~24,000–27,450 BTU/hr)
• Voltage / Electrical: 460V / 3-Phase / 60 Hz
• Full Load Amperage (FLA): ~8.6 A
• Nominal Fluid Flow Rate: 10 GPM @ 25 PSI
• Fluid Temperature Range: 50°F to 90°F (±3°F stability standard)
• Refrigerant: R-407C
• Configuration: Vertical air discharge, closed-loop recirculating, outdoor-capable cabinet
• Evaporator: Stainless Steel Brazed Plate Heat Exchanger
• Reservoir: Stainless Steel Internal Tank with Sight Glass
• Approximate Dimensions (L x W x H): 40" x 34" x 58"
• Approximate Shipping Weight: 700 lbs

Features

• Scroll Compressor: Reliable, high-efficiency cooling under varying heat loads.
• Non-Corrosive Fluid Loop: Stainless steel reservoir and brazed plate heat exchanger prevent rust and fluid contamination.
• Microprocessor Temperature Control: Digital display with straightforward setpoint management and built-in diagnostic fault indicators.
• Safety Interlocks: Equipped with low fluid flow monitoring, high/low pressure cutouts, and phase monitoring.
• Heavy-Gauge Cabinet: Powder-coated industrial enclosure suitable for plant-floor or outdoor pad deployment.
