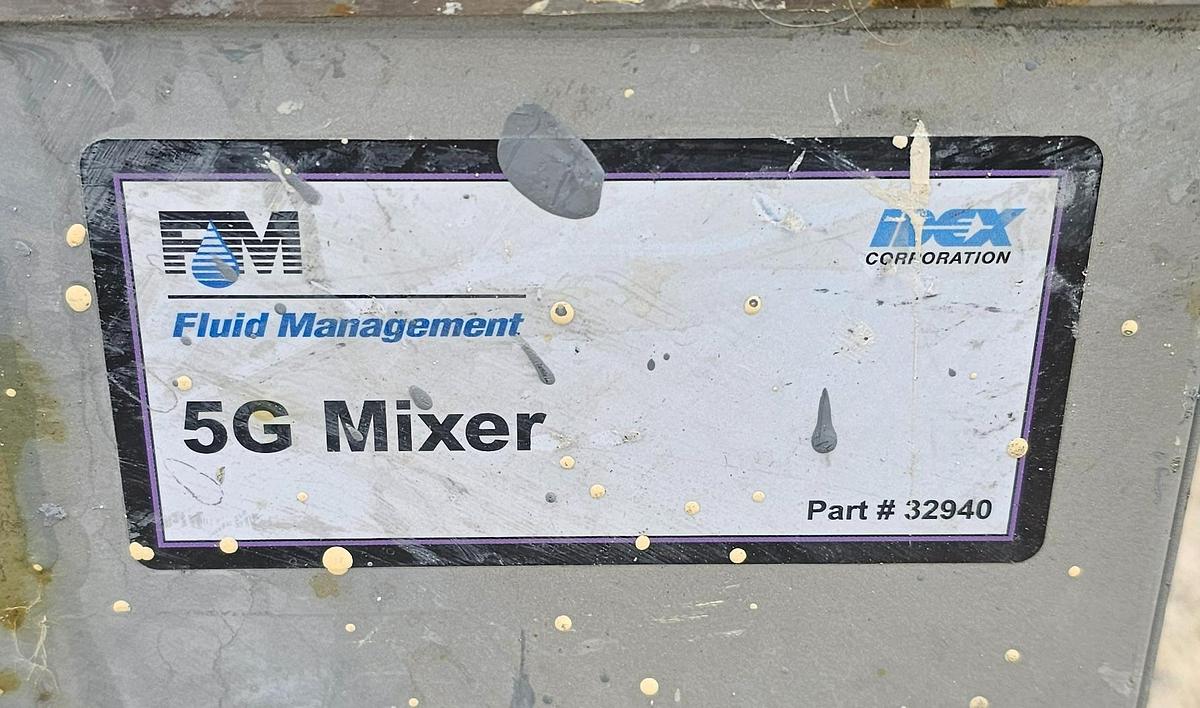

Fluid Management (Harbil) 5G Heavy-Duty Industrial Paint Shaker / Mixer

Model: 5G

Part Number: 32940

Overview

Up for sale is a heavy-duty Fluid Management (Harbil) 5G Industrial Paint & Fluid Shaker / Mixer (Part #: 32940). Recognized as an industry standard in retail paint centers and industrial batch operations, the Harbil 5G is engineered for high-vibration, continuous-duty mixing of high-viscosity coatings, paints, and specialty industrial fluids.

Equipped with a heavy-duty crankshaft assembly, dynamic balancing frame, and multi-size container clamp, this mixer handles everything from single 5-gallon pails down to cases of 1-gallon cans with minimal operating vibration.

Key Specifications

• Container Capacity: (1) 5-Gallon Pail, or up to (4) 1-Gallon Cans, or Case of Quarts/Pints

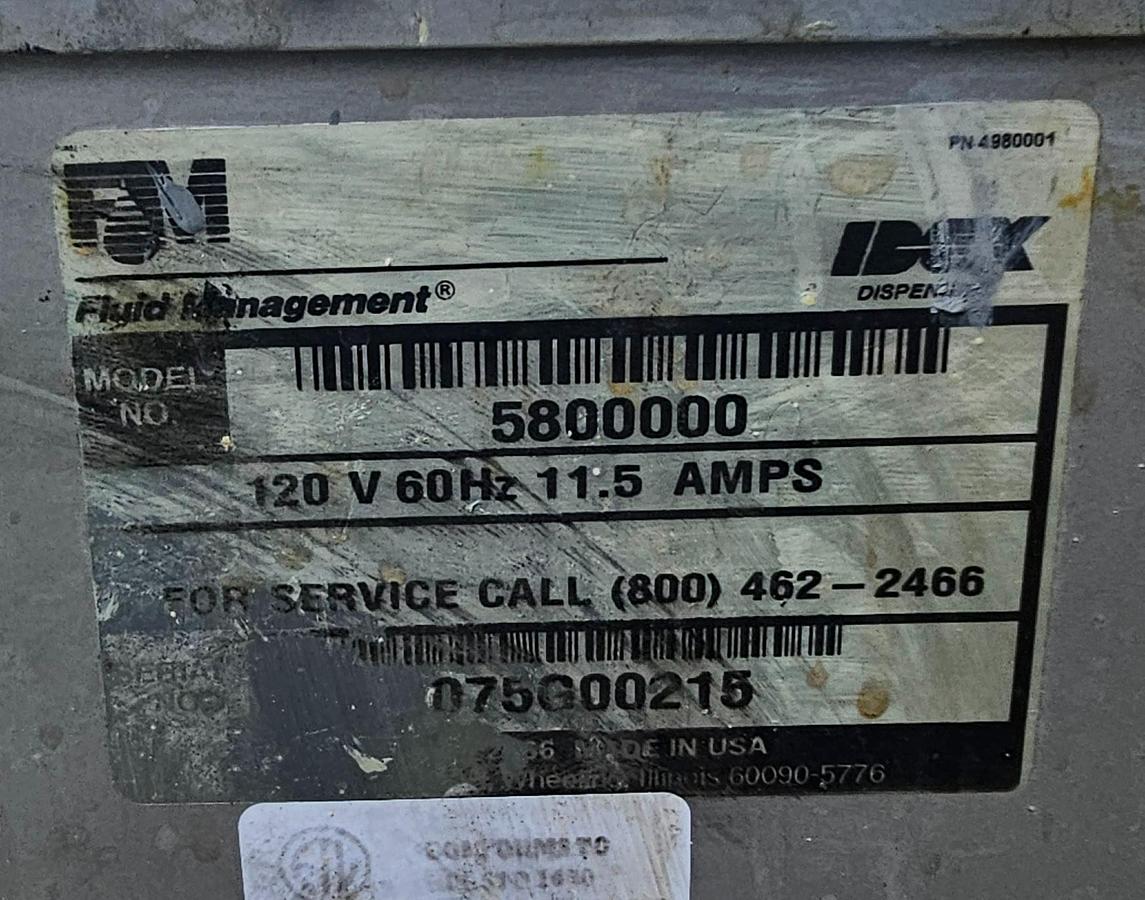

• Voltage / Electrical: 110V–115V / 1-Phase / 60 Hz
• Operating Amperage: ~10 A
• Drive Mechanism: Heavy-Duty Motor with Eccentric Crankshaft & Connecting Rod Drive

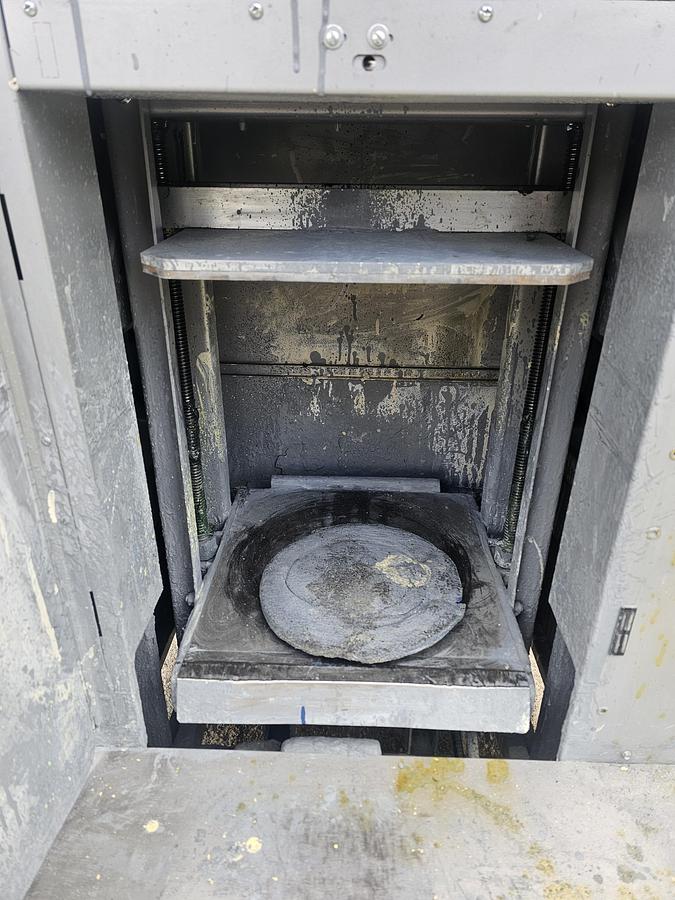

• Clamping Mechanism: Manual Lead-Screw Top Platen with Roller Loading Tray
• Timer Control: 0 to 8-Minute Adjustable Mechanical/Digital Timer

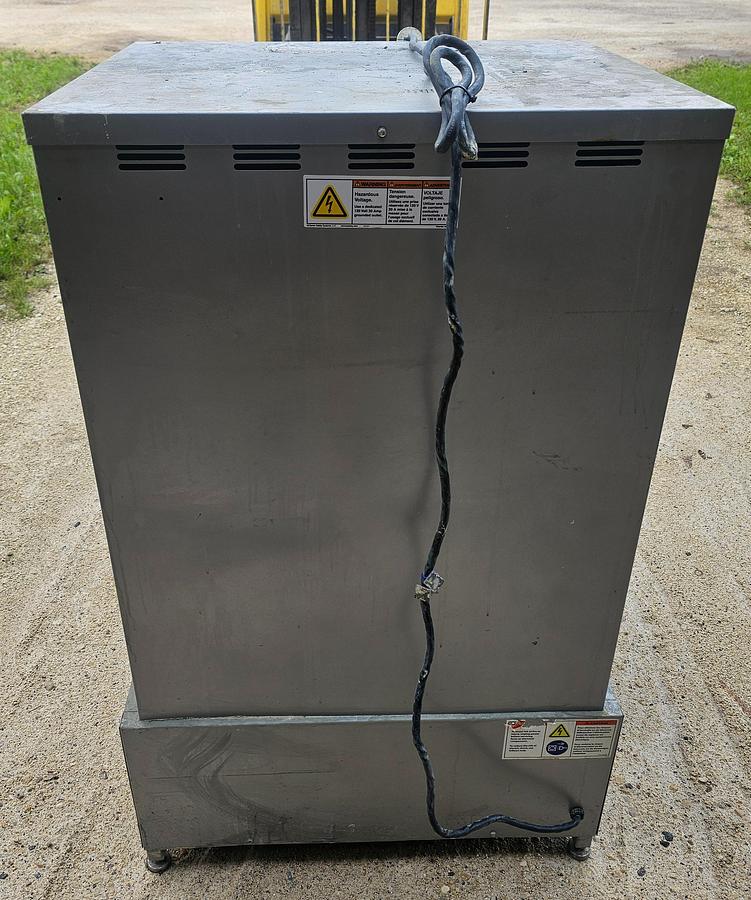

• Cabinet Configuration: Fully Enclosed Steel Safety Cabinet with Interlocking Door
• Approximate Dimensions (L x W x H): 28" x 28" x 46"
• Approximate Shipping Weight: 450 lbs

Features

• Patented Low-Vibration Drive: Heavy-duty counterbalanced shaking frame reduces frame stress and prevents walking during operation.
• Easy-Load Roller Base: Lower platen features integrated steel rollers to allow smooth sliding of heavy 5-gallon pails into the clamp.
• Safety Interlocking Door: Enclosed cabinet prevents operation while the door is open and stops movement immediately if opened during a cycle.
• Versatile Multi-Can Adaptability: Easily adjusts to accommodate varying container heights and configurations without extra tooling.
