Aircel 1-Ton Industrial Air-Cooled Chiller

Model: HC-010

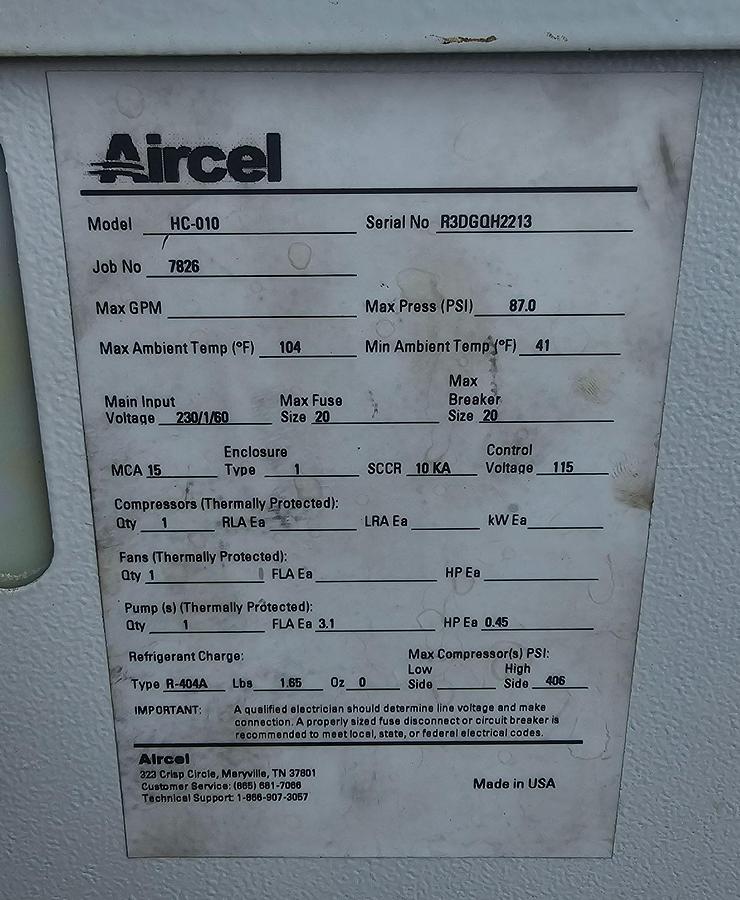

Serial Number: R3DGQH2213

Overview

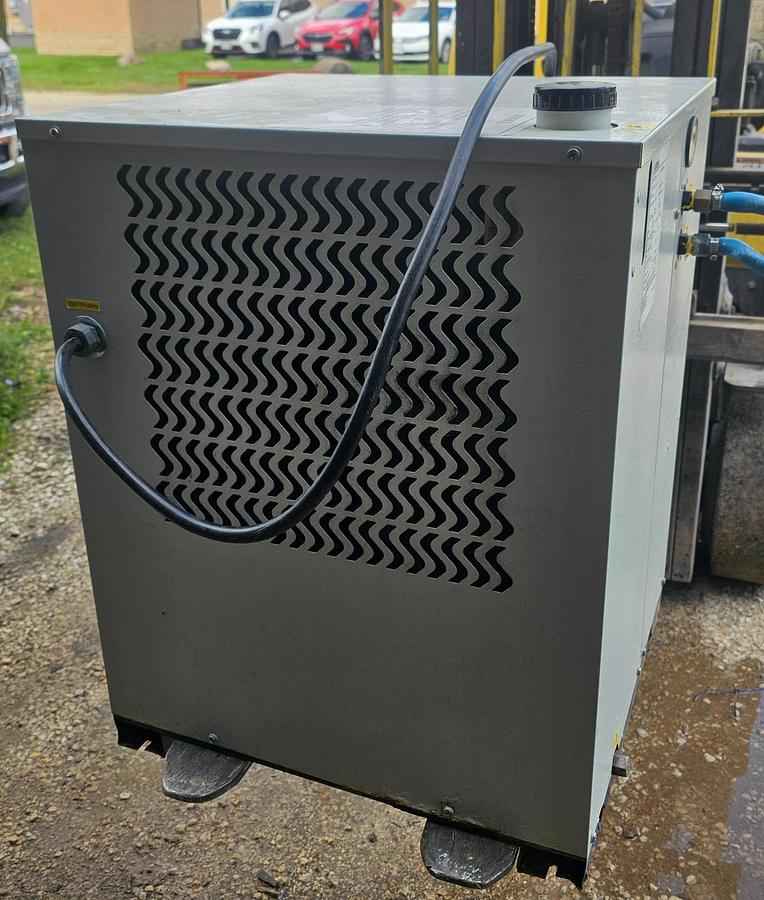

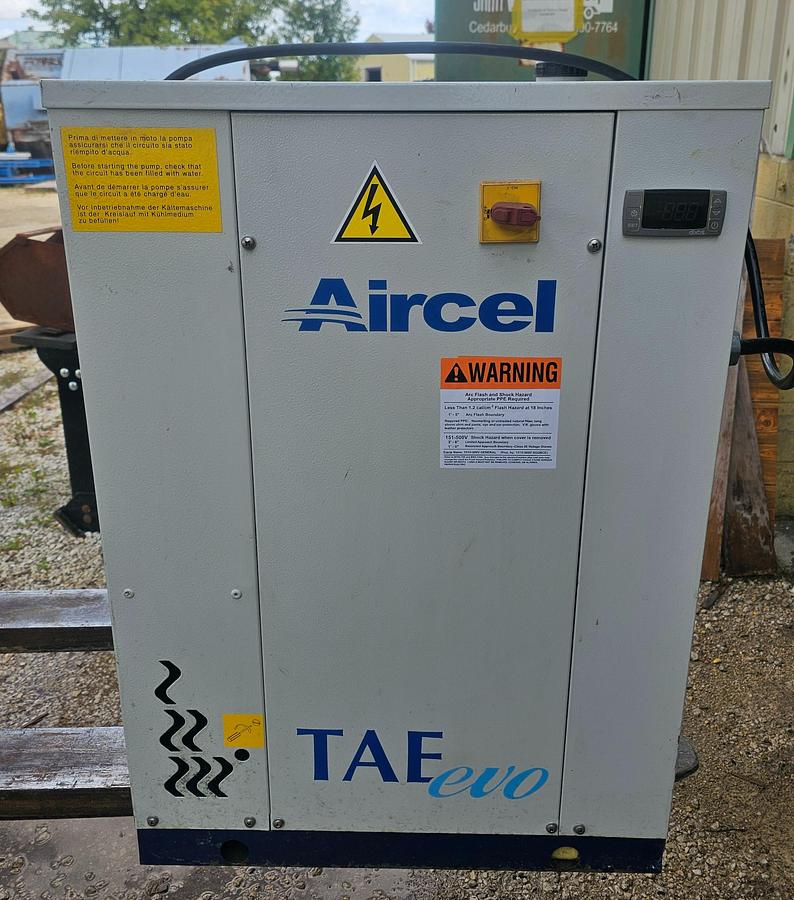

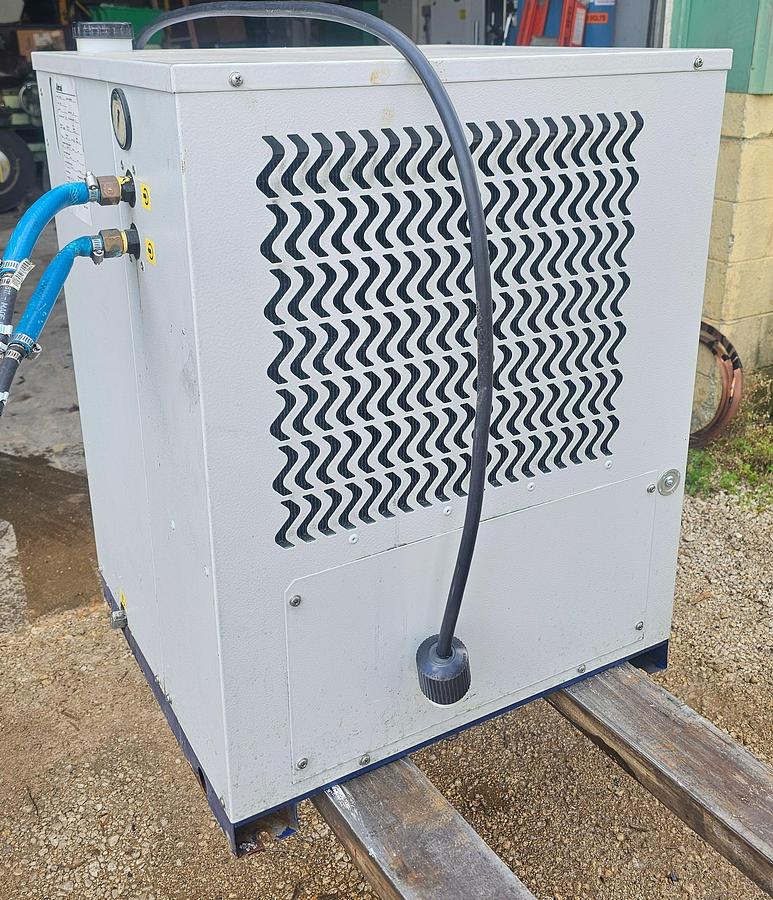

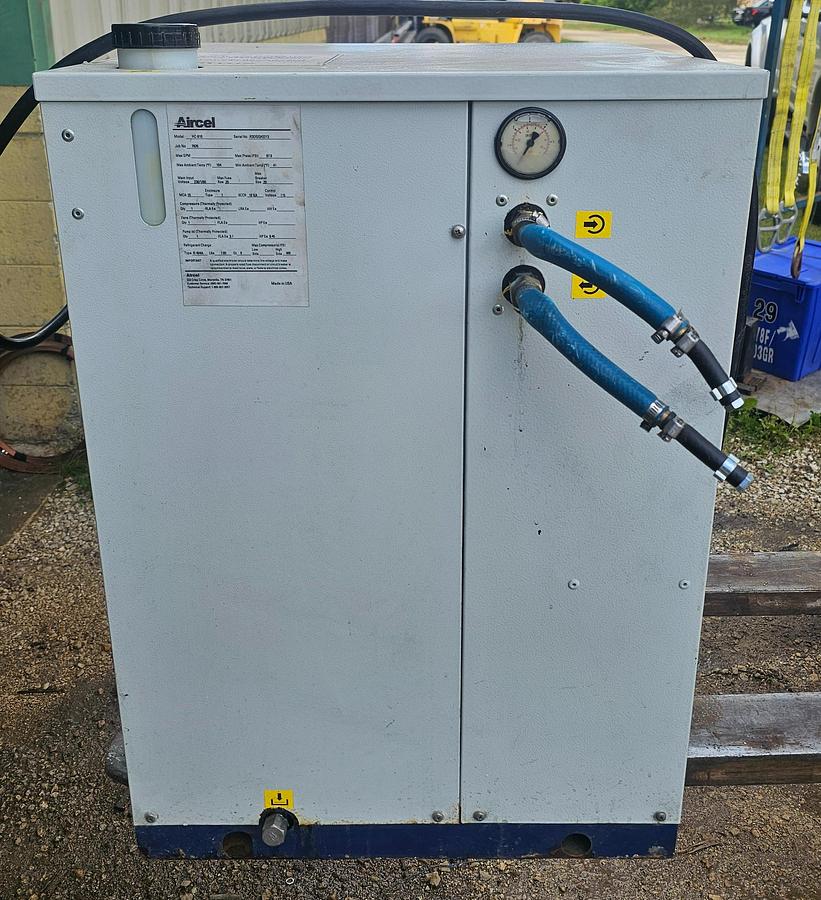

Up for sale is an Aircel HC-010 Industrial Air-Cooled Fluid Chiller (Serial: R3DGQH2213). Engineered for reliable process temperature control, the Aircel HC series provides compact, self-contained closed-loop liquid chilling for industrial manufacturing, plastic processing, laser cutting, and machinery cooling applications.

Built with a heavy-duty scroll compressor, integrated circulation pump, internal fluid reservoir, and digital microprocessor controller, the HC-010 delivers efficient, continuous-duty cooling in a compact footprint.

Key Specifications

• Nominal Cooling Capacity: 1 Ton (~12,000 BTU/hr / ~3.5 kW)
• Voltage / Electrical: 230V or 460V / 3-Phase / 60 Hz (See machine data plate to verify exact voltage)
• Power Type: Air-Cooled Condenser with Integrated Fan
• Compressor Type: Hermetic Scroll Compressor
• Fluid Reservoir: Integrated Stainless Steel Internal Tank
• Controls: Digital Microprocessor Controller with Setpoint & Temperature Display
• Refrigerant: R-407C or R-134a
• Approximate Dimensions (L x W x H): 32" x 28" x 42"
• Approximate Shipping Weight: 350–400 lbs

Features

• Compact Self-Contained Design: Includes integrated compressor, pump, reservoir, and air-cooled condenser in a single enclosed cabinet.
• Non-Corrosive Fluid Loop: Features stainless steel heat exchanger/reservoir components to eliminate internal rust and maintain fluid purity.
• Microprocessor Control Panel: Easy-to-read digital readout with precise setpoint regulation and built-in diagnostic fault protection.
• Built-In Pump & Bypass: Integrated circulation pump ensures continuous flow through process lines with internal bypass protection.
