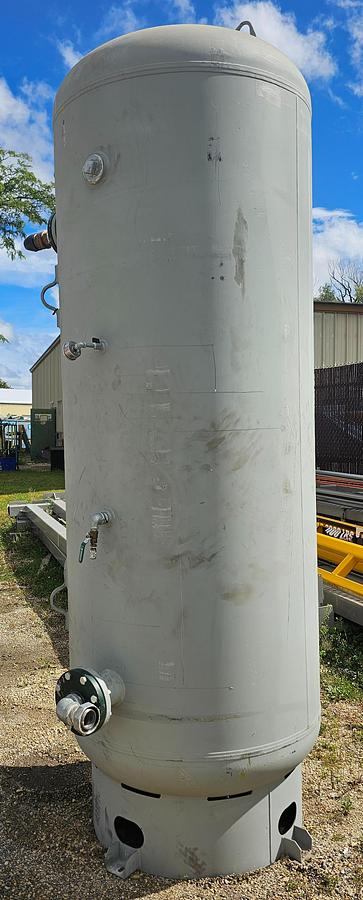

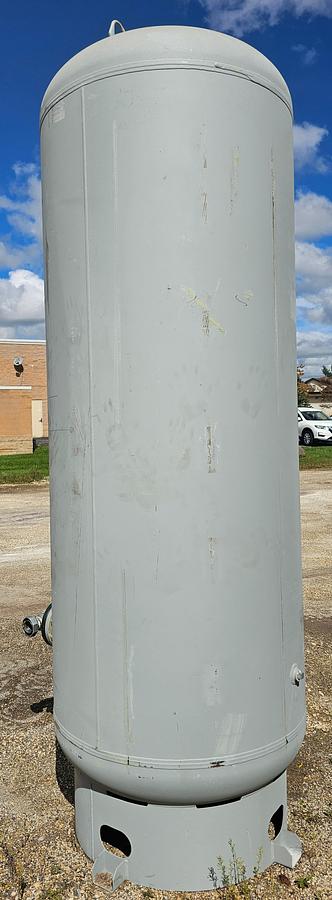

Samuel Pressure Vessel Group 660-Gallon Vertical Air Receiver Tank

Model / Volume: 660 Gallon

Manufacturer: Samuel Pressure Vessel Group

Year of Manufacture: 2019

Overview

Up for sale is a heavy-duty 2019 Samuel Pressure Vessel Group 660-Gallon Vertical Air Receiver Tank. Engineered for heavy industrial compressed air storage, this ASME-certified vertical air receiver acts as a vital surge buffer to stabilize system pressure, drop out moisture, and reduce load cycling on large rotary screw or reciprocating air compressors.

Built to ASME Section VIII, Division 1 standards and rated for 200 PSI maximum allowable working pressure (MAWP), this tank features a durable exterior primer/coating, a stable skirt/leg base, and multiple top, side, and bottom NPT threaded ports for easy system integration, safety relief valves, and automatic drain valves.

Key Specifications

• Tank Capacity: 660 Gallons
• Orientation: Vertical
• Maximum Allowable Working Pressure (MAWP): 200 PSI @ 400°F
• Minimum Design Metal Temperature (MDMT): -20°F @ 200 PSI
• ASME Code Stamped: Yes (Section VIII, Div 1)

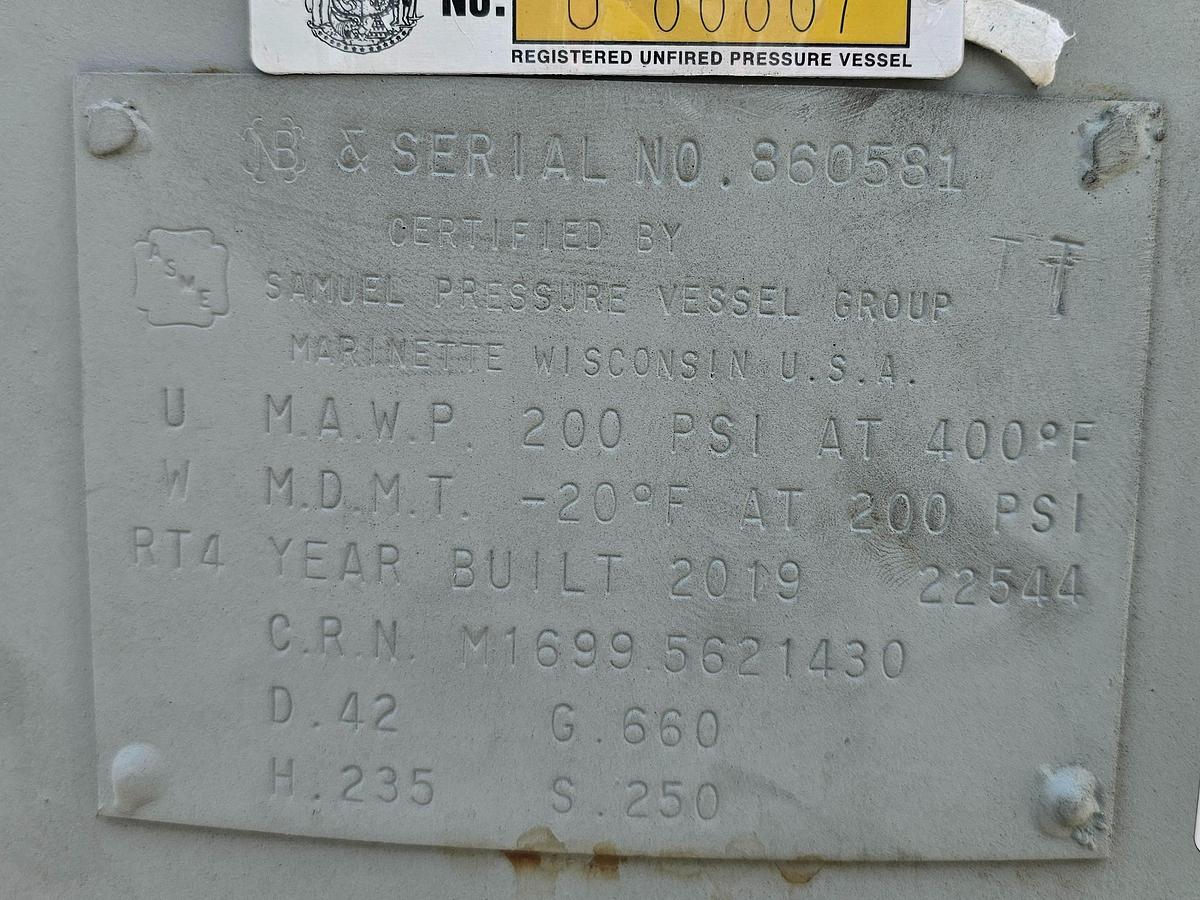

• National Board Number: Stamped on Nameplate
• Year Built: 2019
• Shell & Head Material: Carbon Steel
• Connections: Multiple Top/Side NPT Service Ports, Safety Valve Port, Gauge Port, and Bottom Drain Port

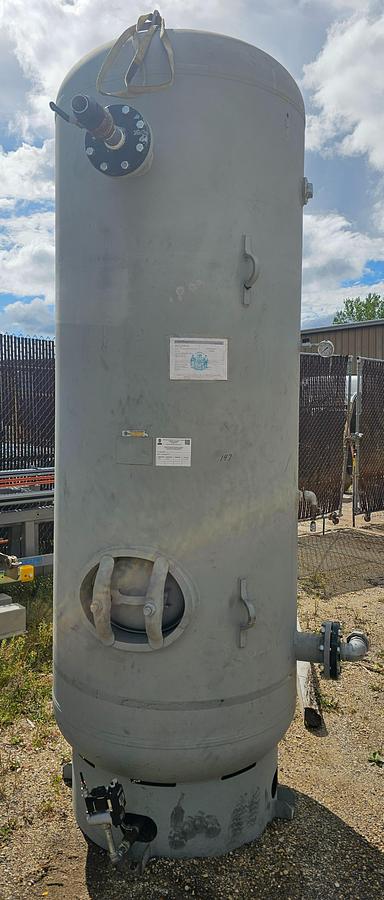

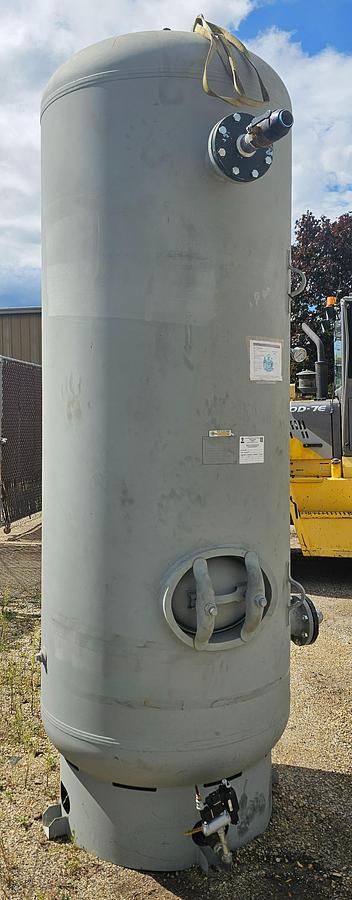

• Inspection Openings: Standard Inspection Ports / Handhole
• Approximate Dimensions (Diameter x Height): ~42" W x ~118" H
• Approximate Shipping Weight: ~1,850 lbs

Features

• ASME Section VIII Certified: Stamped nameplate ensures full compliance with local municipal, state, and OSHA industrial pressure vessel safety codes.
• Pressure Stabilization: Dampens pressure pulsation and provides large-volume demand storage during peak compressed air usage.
• Moisture Separation: Helps cool compressed air, allowing heavy moisture and oil droplets to settle at the bottom drain port before reaching downstream piping or dryers.
• Heavy-Duty Vertical Footprint: Maximizes floor space utilization while offering a secure, skid-style skirt base for floor anchoring.
