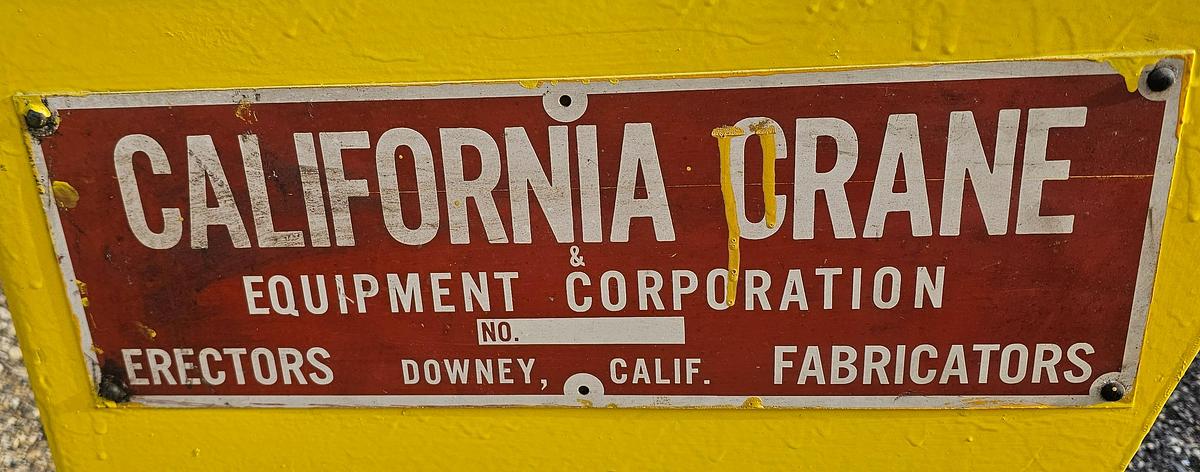

California Crane 1/4-Ton Industrial Pillar Jib Crane with Demag DCM-PRO Manulift Hoist

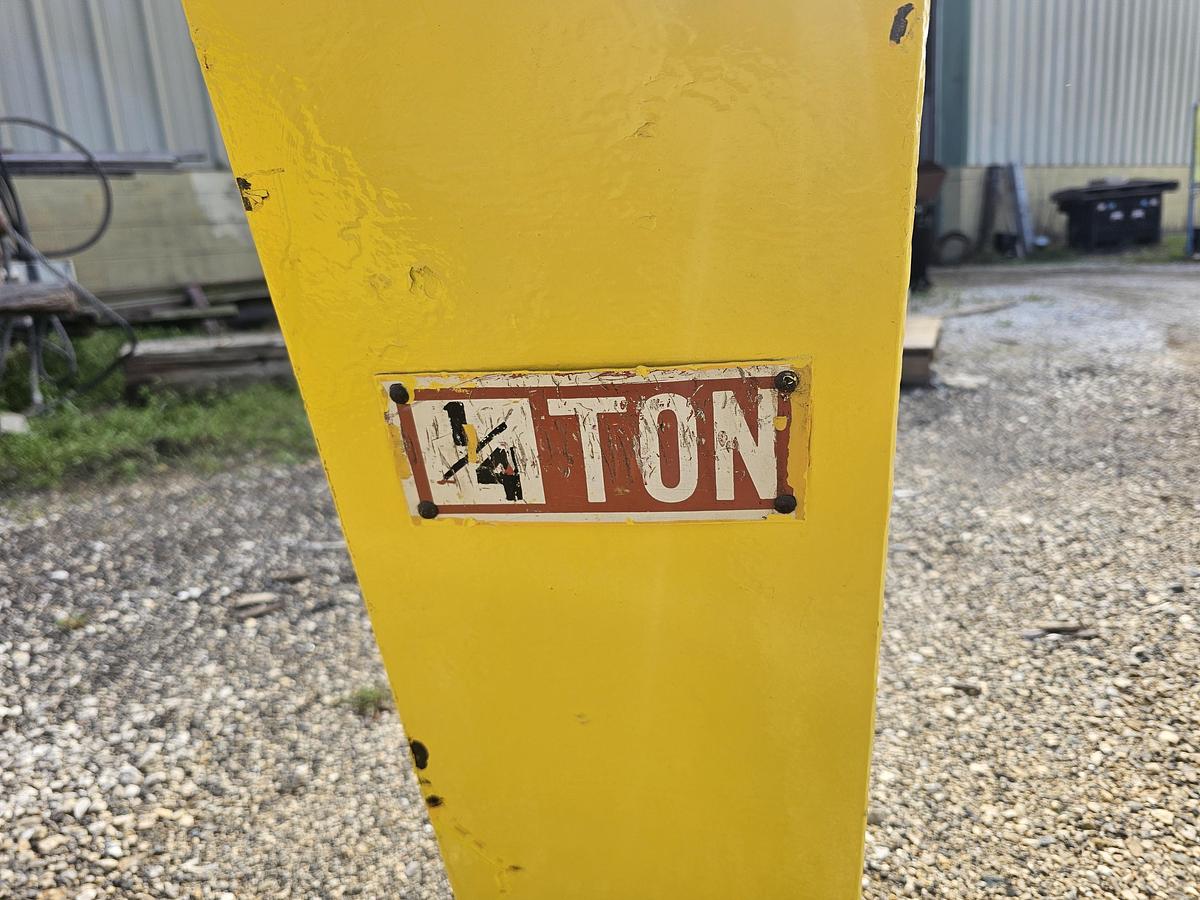

Jib Capacity: 1/4 Ton (500 lbs)

Span / Arm Length: 136 Inches (~11' 4")

Post Height: 120 Inches (10 Feet Overall Height)

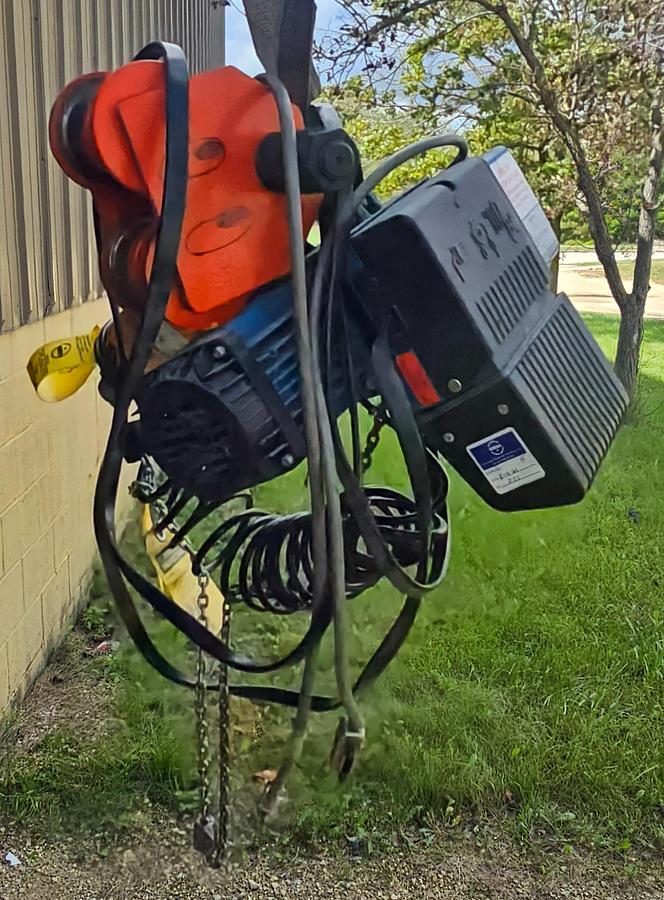

Included Hoist: Demag DCM-PRO 1-125 Manulift Electric Chain Hoist

Overview

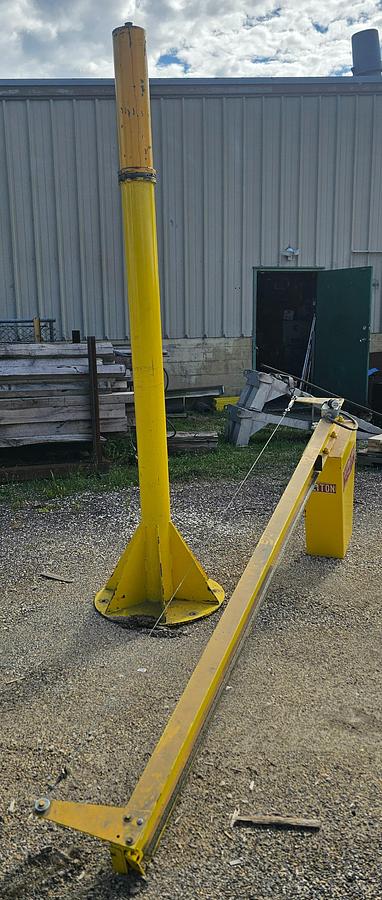

Up for sale is a complete ergonomic lifting package featuring a California Crane 1/4-Ton Free-Standing Pillar Jib Crane equipped with a premium Demag DCM-PRO 1-125 Manulift Electric Chain Hoist. Designed for high-efficiency workstation material handling, this system provides 360-degree rotation across a 136-inch (11' 4") horizontal reach.

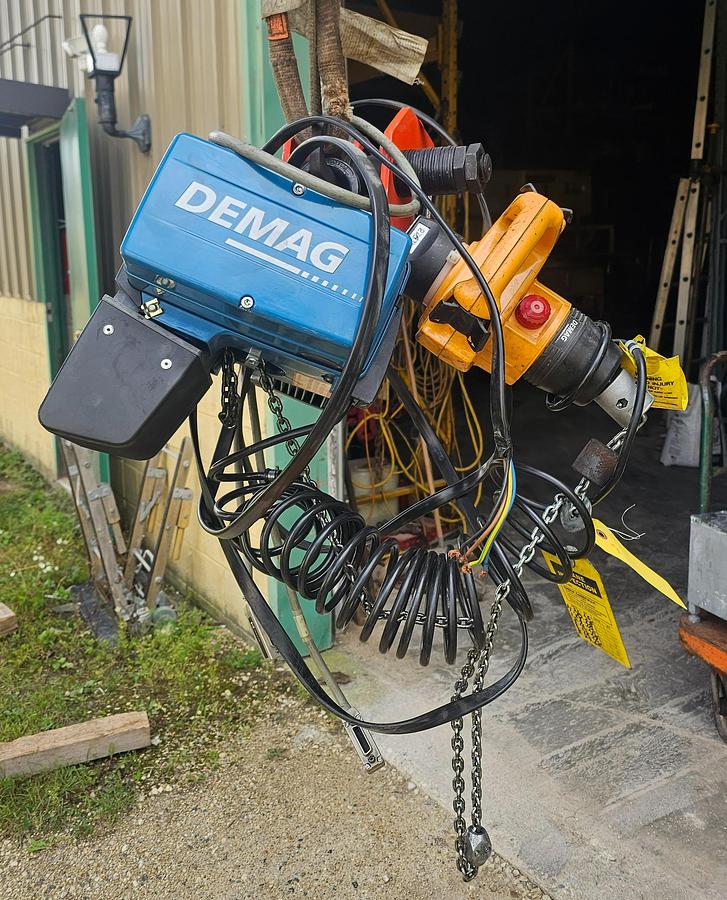

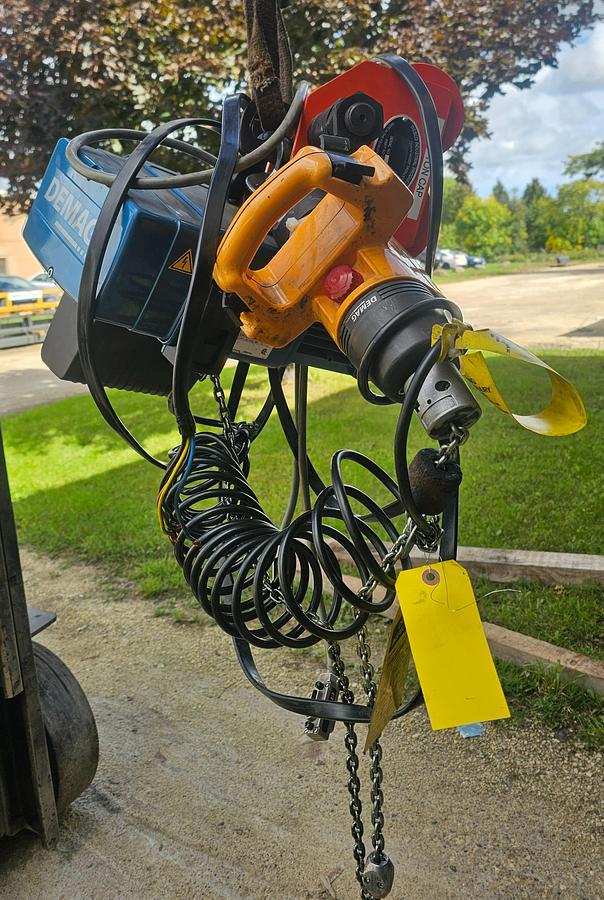

The included Demag Manulift features an integrated one-handed rocker-switch control grip, allowing the operator to lift, lower, and position loads effortlessly with a single hand.

Key Specifications

• Jib Capacity: 1/4 Ton (500 lbs)

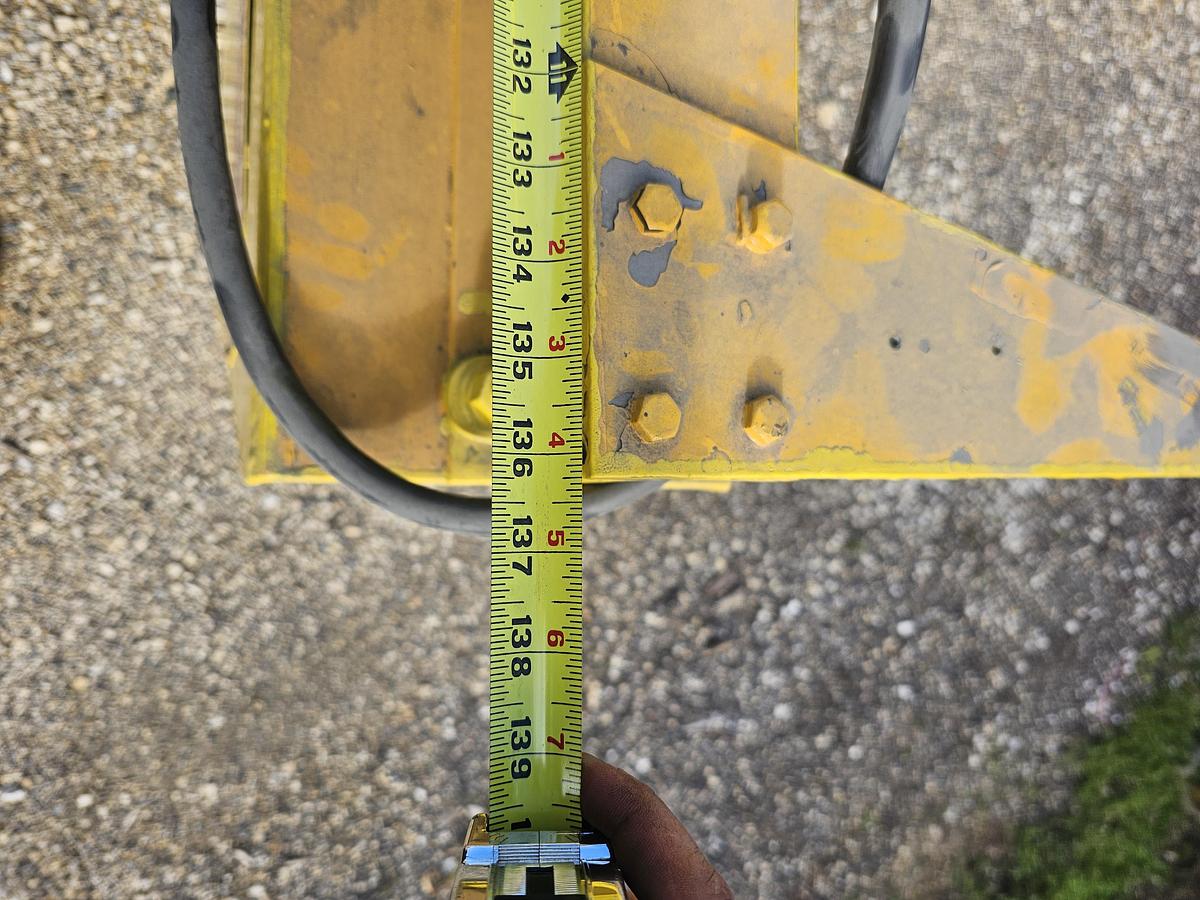

• Horizontal Boom Length (Span): 136 Inches (~11' 4")

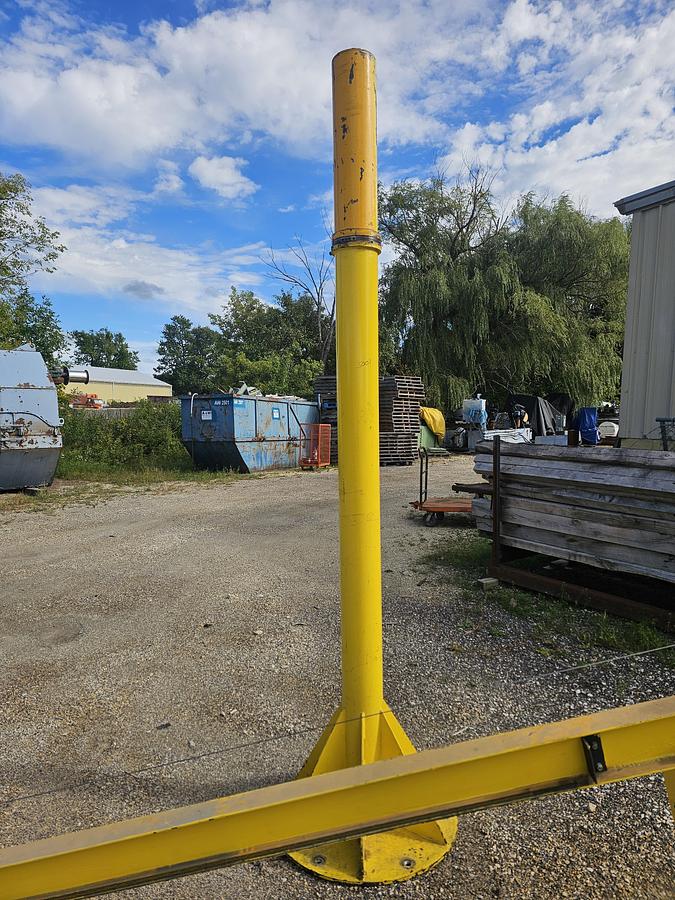

• Vertical Post Height (Overall Height): 120 Inches (10 Feet)
• Rotation: 360-Degree Continuous Rotation
• Base Mounting: Heavy-Duty Steel Anchor Base Plate with Reinforced Gussets

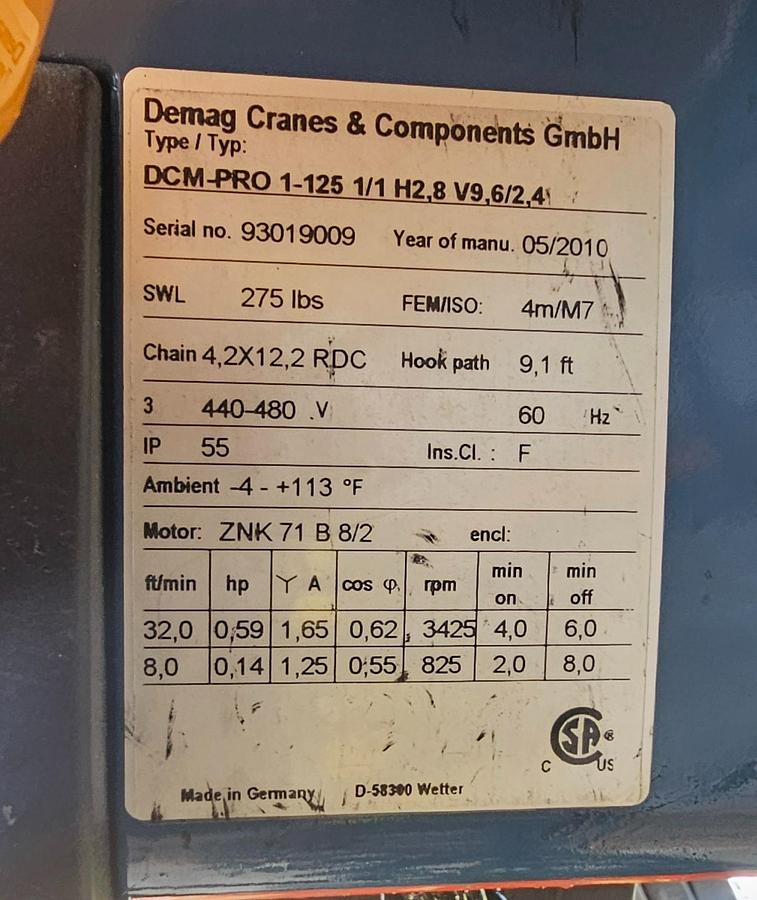

• Hoist Model: Demag DCM-PRO 1-125 (1/1 Reeving, H2.8 Lift Height ~9 ft.)
• Hoist Capacity: 275 lbs (125 kg)
• Hoist Speeds: Two-Speed Variable Lifting (9.6 / 2.4 FPM @ 60 Hz)
• Hoist Electrical: 460V or 230V / 3-Phase / 60 Hz

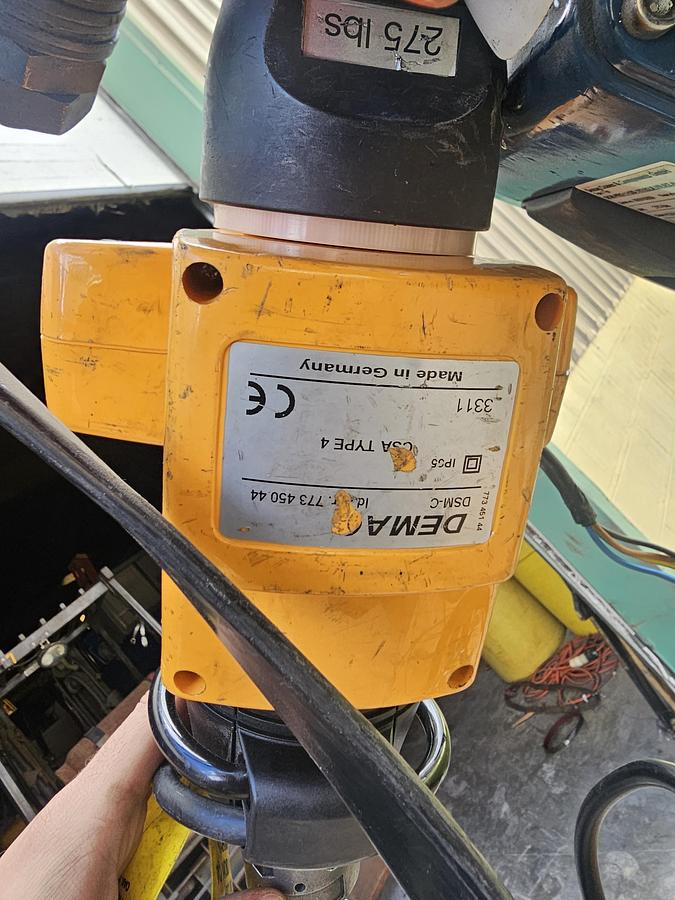

• Control Unit: Integrated DSM-C One-Handed Control Handle

Features

• One-Handed Load Handling: Demag Manulift control grip lets the operator trigger lifting/lowering and guide the load simultaneously with one hand.
• Full 360-Degree Work Radius: Free-standing pillar design provides complete circular coverage across the cell footprint.
• Two-Speed Precision Lifting: Fast main speed for rapid positioning and fine creep speed for delicate alignment into CNC fixtures or machinery.
• Industrial Safety Systems: Features built-in operating limit switches, 24V contactor control, and maintenance-free slipping clutch/brake system.
