CM Loderail 1-Ton Freestanding Workstation Crane System

Manufacturer: Columbus McKinnon (CM) Loderail

Capacity: 1 Ton (2,000 lbs)

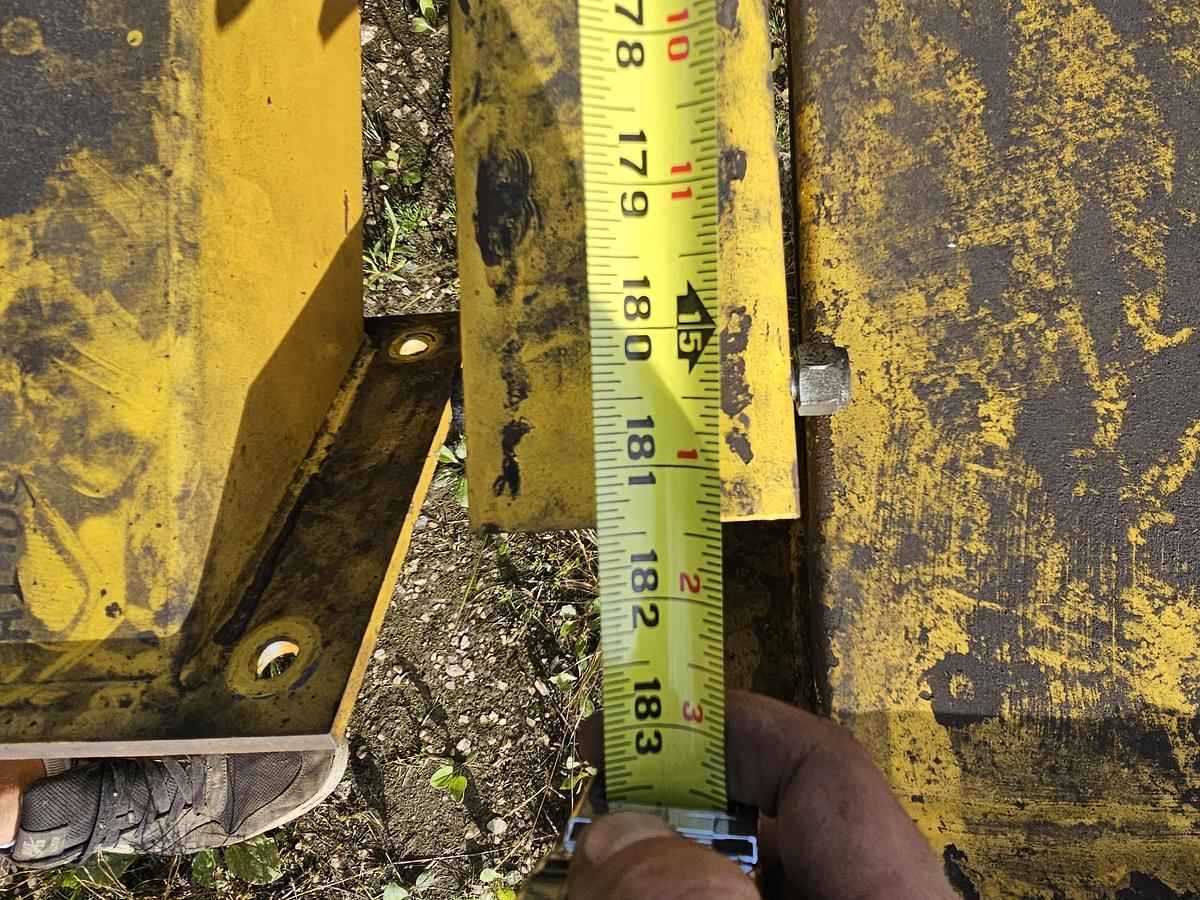

Bridge Span: 15 Feet (180")

Runway Length: 33.5 Feet (~33' 6" / 402")

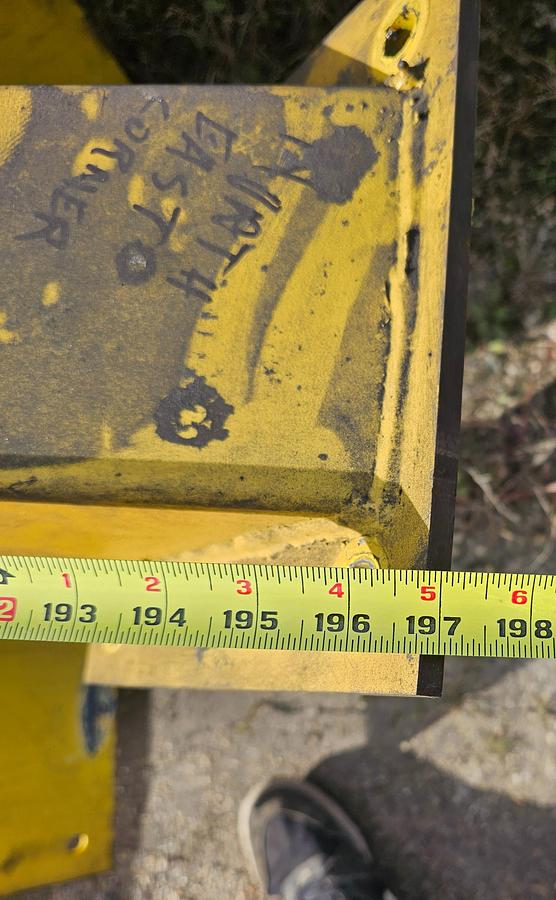

Cross Support Width: 197 Inches (~16' 5")

Upright Column Height: 154 Inches (~12' 10" Overall Height)

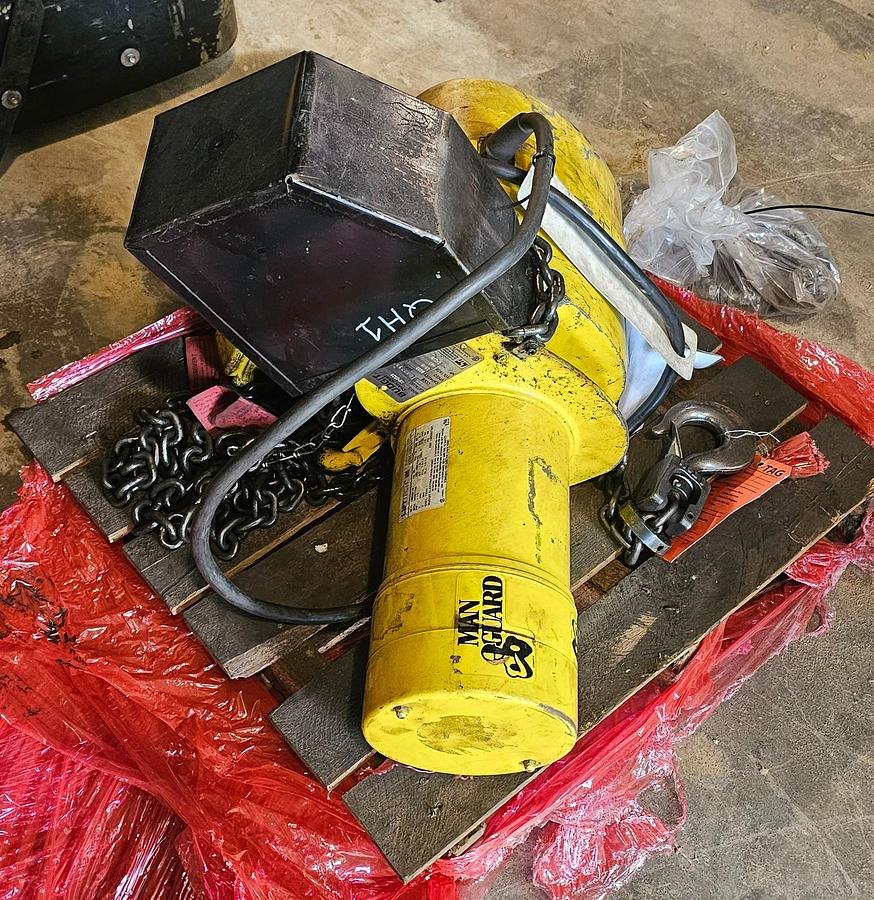

Included Hoist: Budgit 1-Ton Electric Chain Hoist (Model: BEH0116 / BEHC0116)

Overview

Up for sale is a complete overhead material handling package featuring a CM Loderail 1-Ton Freestanding Workstation Bridge Crane System paired with a heavy-duty Budgit 1-Ton Electric Chain Hoist (Model BEH0116). Built by Columbus McKinnon, this modular enclosed-track crane provides 2,000 lbs of lifting coverage across a large 15-foot wide by 33.5-foot long rectangular work footprint.

Featuring an independent free-standing steel support structure with 154" vertical columns and 197" overhead cross headers, this system installs directly onto standard reinforced concrete shop floors without requiring tie-ins to roof trusses or building support columns. The included Budgit BEH0116 industrial electric chain hoist delivers reliable 16 FPM lifting speed, complete with an ergonomic push-button pendant control.

Key Specifications

Bridge Crane System:

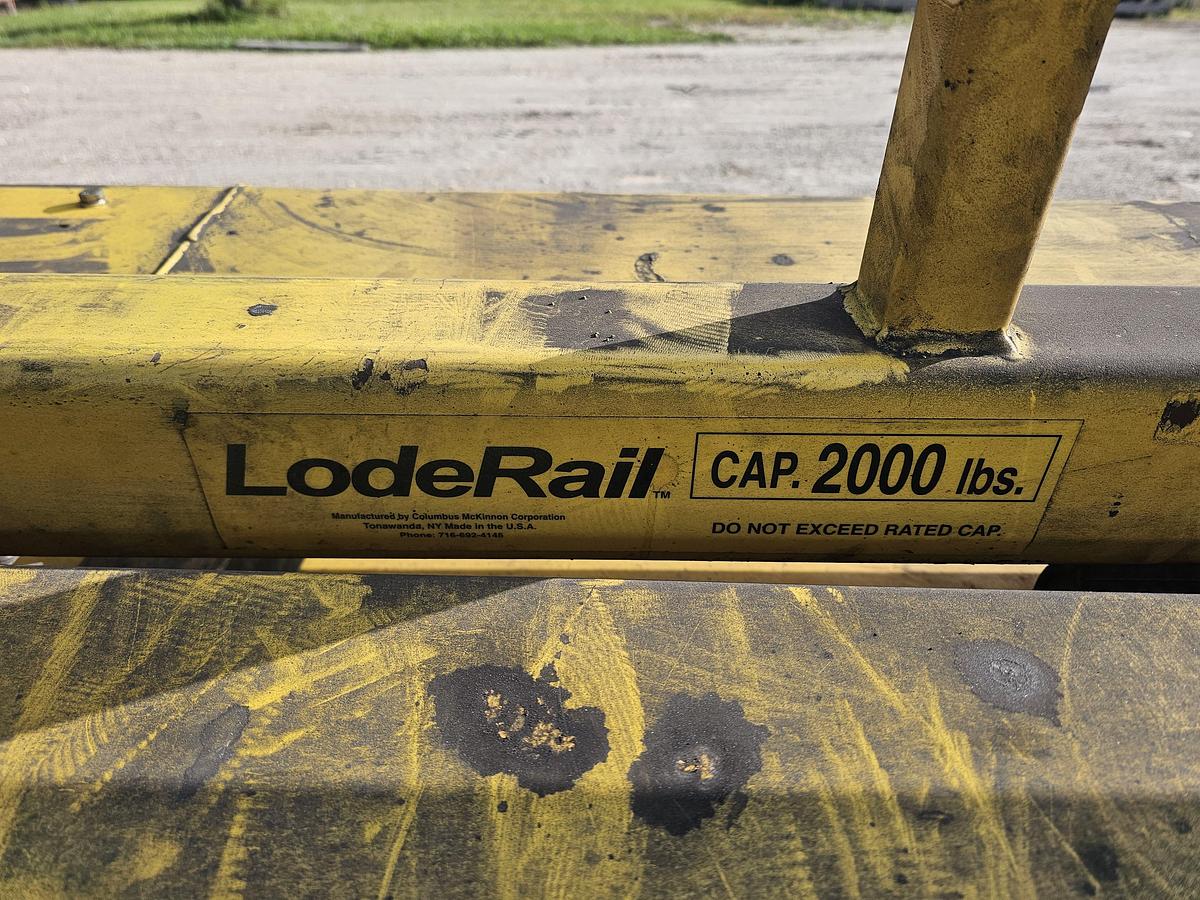

• Lifting Capacity: 1 Ton (2,000 lbs)
• Configuration: Free-Standing Modular Structural Steel Framework
• Bridge Span: 15 Feet (Center-to-Center)
• Runway Length: 33.5 Feet (Total Travel Coverage)
• Cross Support Header Length: 197 Inches (~16 Feet 5 Inches)

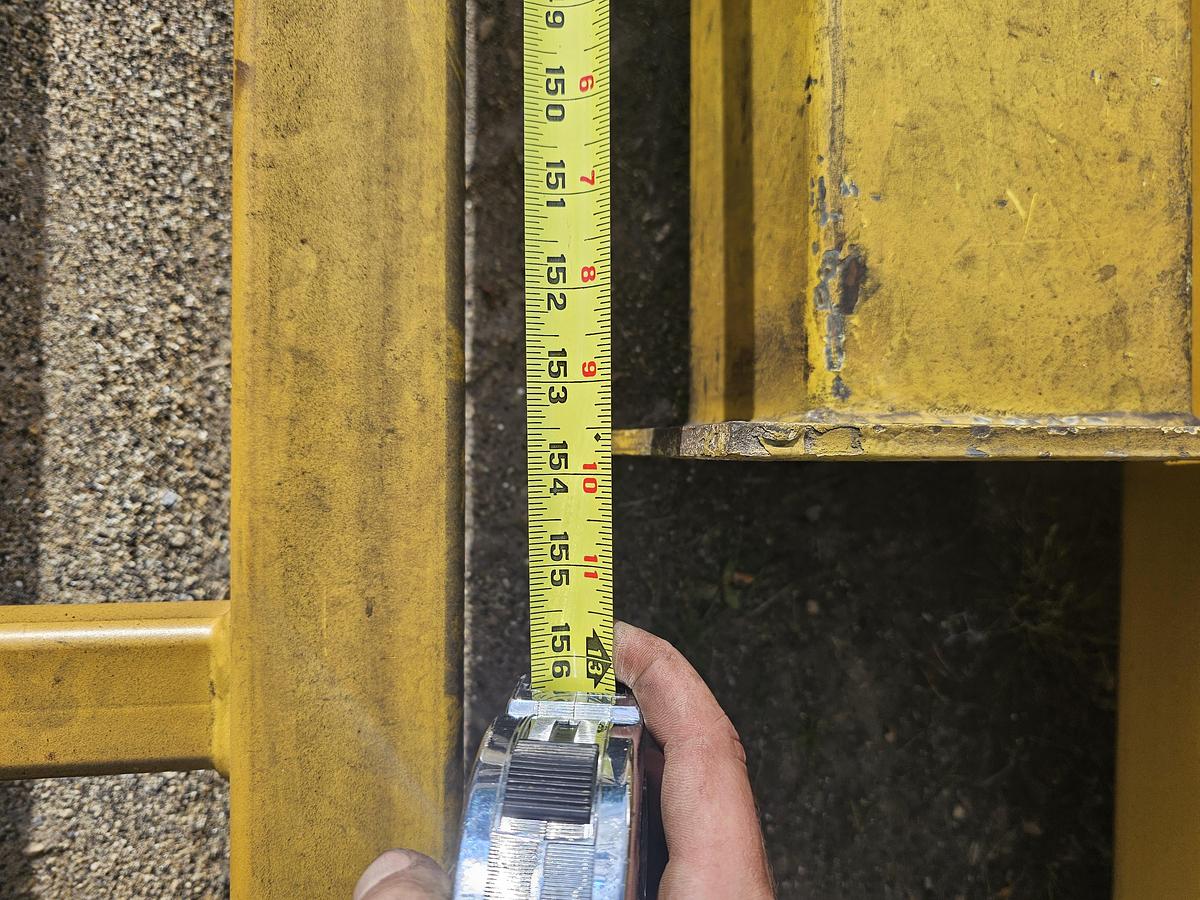

• Upright Column Height: 154 Inches (~12 Feet 10 Inches)
• Usable Height Under Hook: ~10.5 Feet to 11 Feet (depending on hoist headroom clearance)
• Track Type: Enclosed Steel Track (Low Rolling Resistance)
• Operation: Manual Push/Pull Bridge & Trolley Travel

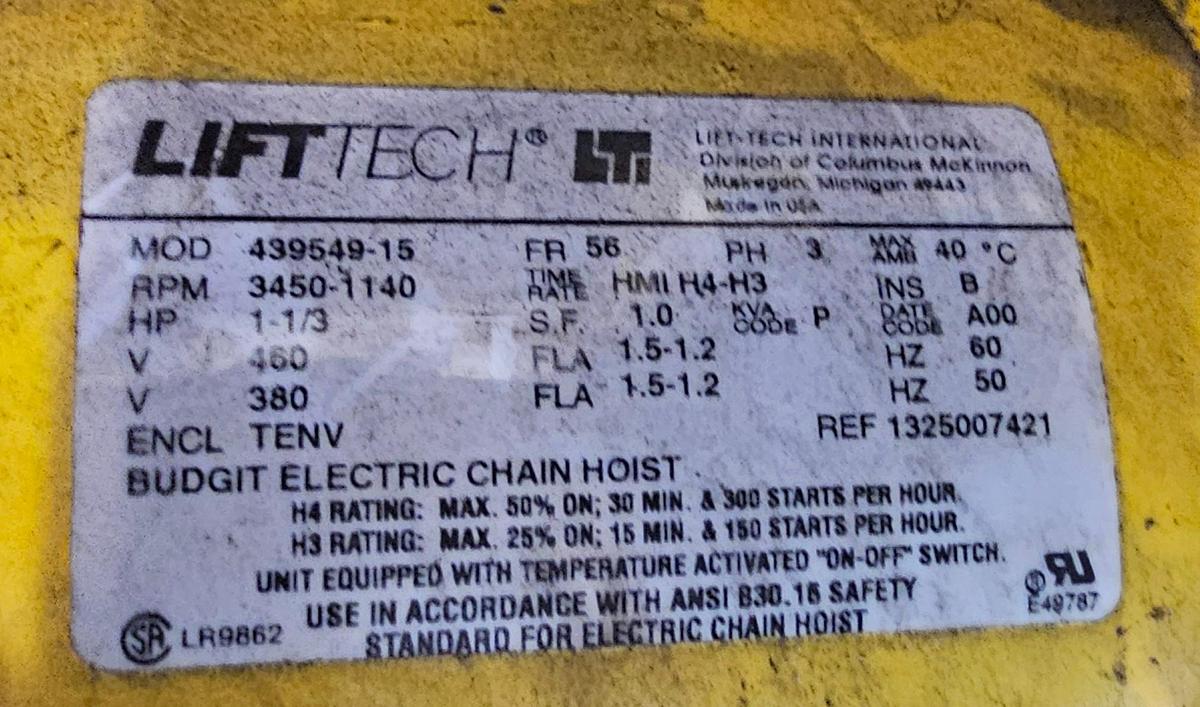

Included Budgit Hoist Specs:

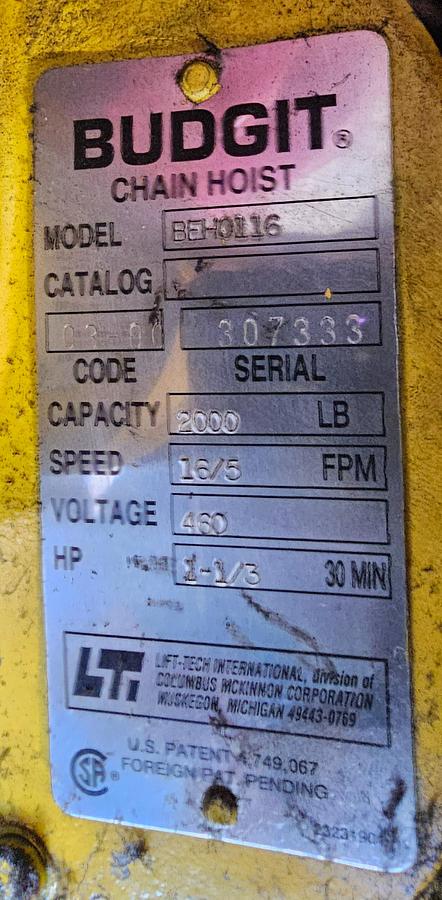

• Hoist Model: Budgit BEH0116 / BEHC0116
• Hoist Capacity: 1 Ton (2,000 lbs)
• Lifting Speed: 16 Feet Per Minute (FPM)
• Motor Power: 1 HP Industrial Duty Motor
• Electrical Voltage: 230/460V / 3-Phase / 60 Hz (Dual Voltage Reconnectable)
• Duty Rating: HMI H4 Industrial Duty Classification
• Control: Ergonomic NEMA-4X Push-Button Pendant Control Station

Features

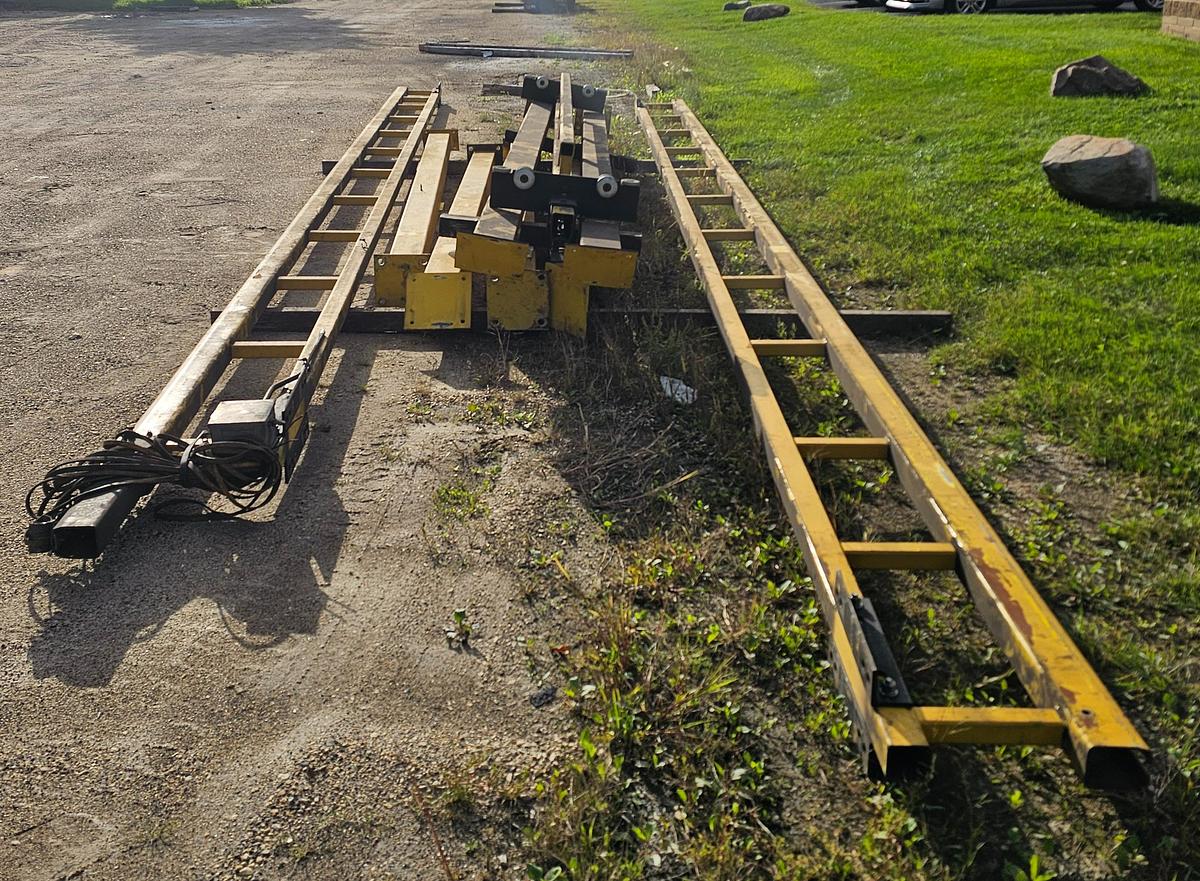

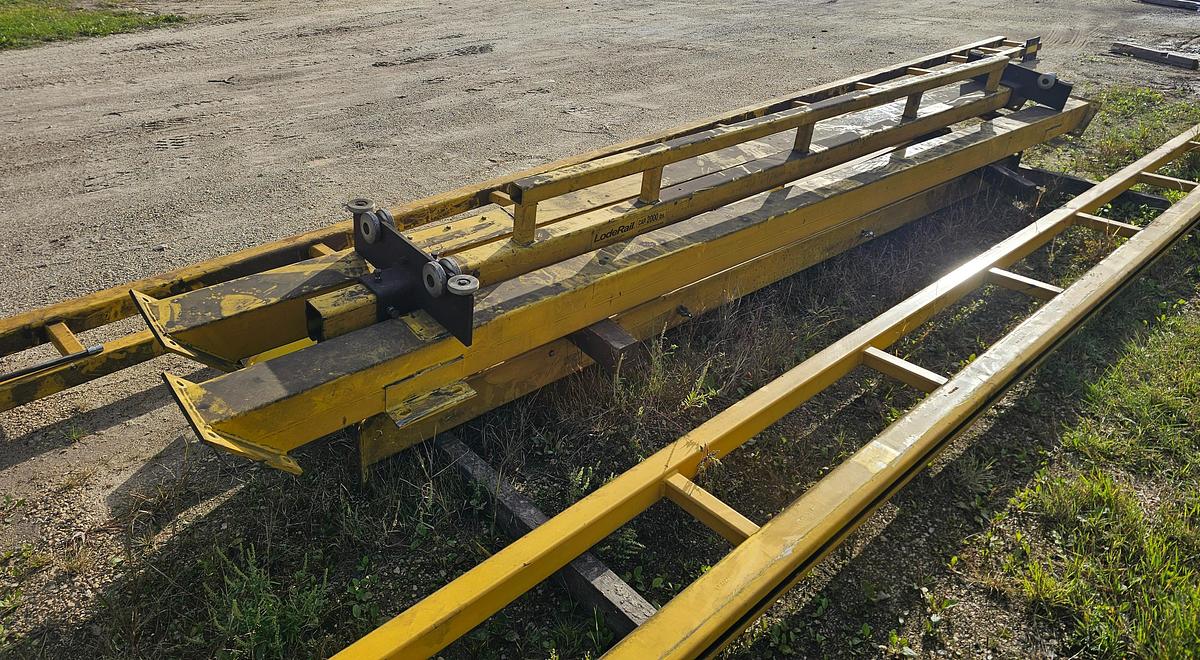

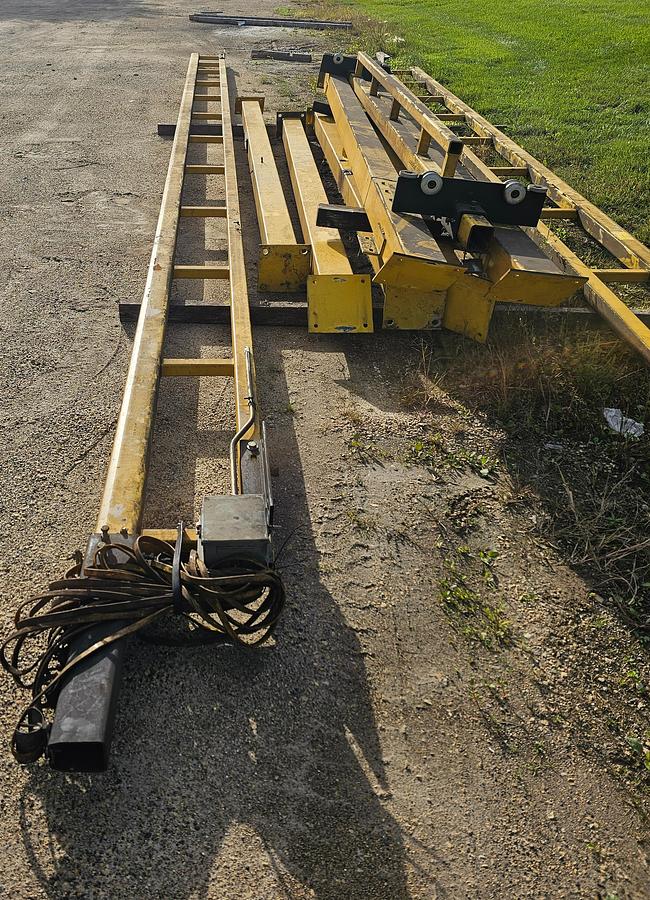

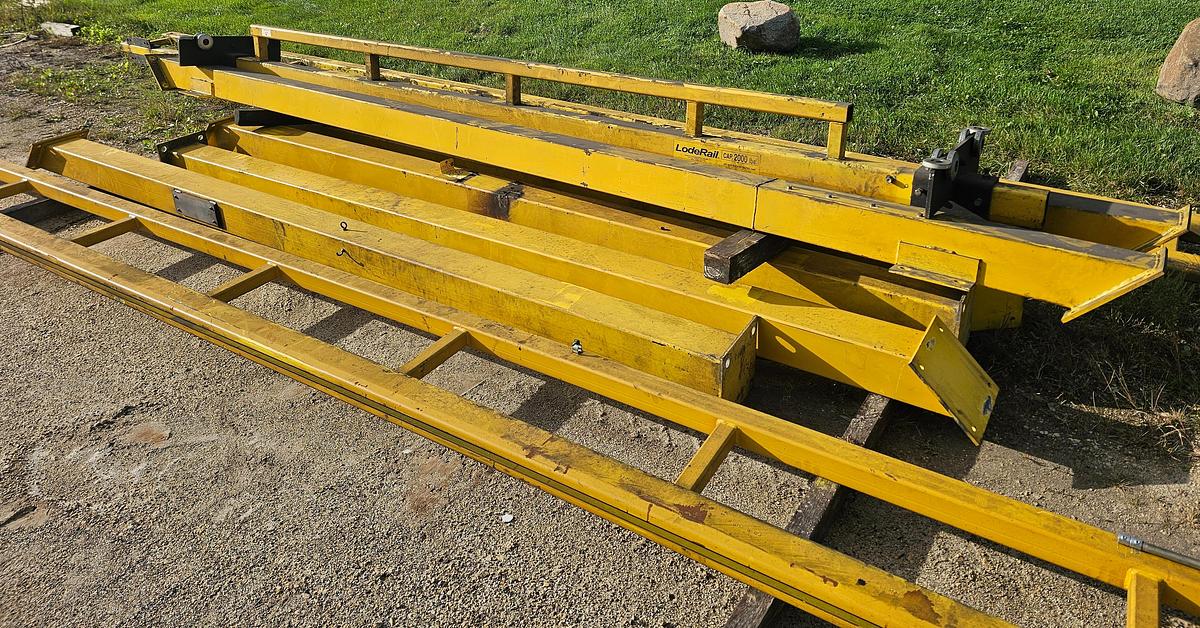

• Turnkey Lifting Package: Includes all structural steel uprights, overhead cross headers, runway track, 15' bridge, trolley, end trucks, and a matching Budgit 1-ton electric chain hoist.
• Independent Modular Structure: Free-standing floor-mounted layout avoids costly structural building engineering, ceiling mounting, or facility roof-truss modifications.
• Enclosed Track Efficiency: Smooth enclosed track profile prevents dust and debris buildup on running surfaces, minimizing rolling resistance under full 2,000 lb loads.
• Reliable Hoist Engineering: Budgit hoists feature totally enclosed oil-bath gear lubrication, Manguard overload protection, and an AC spring-set disc brake system.
