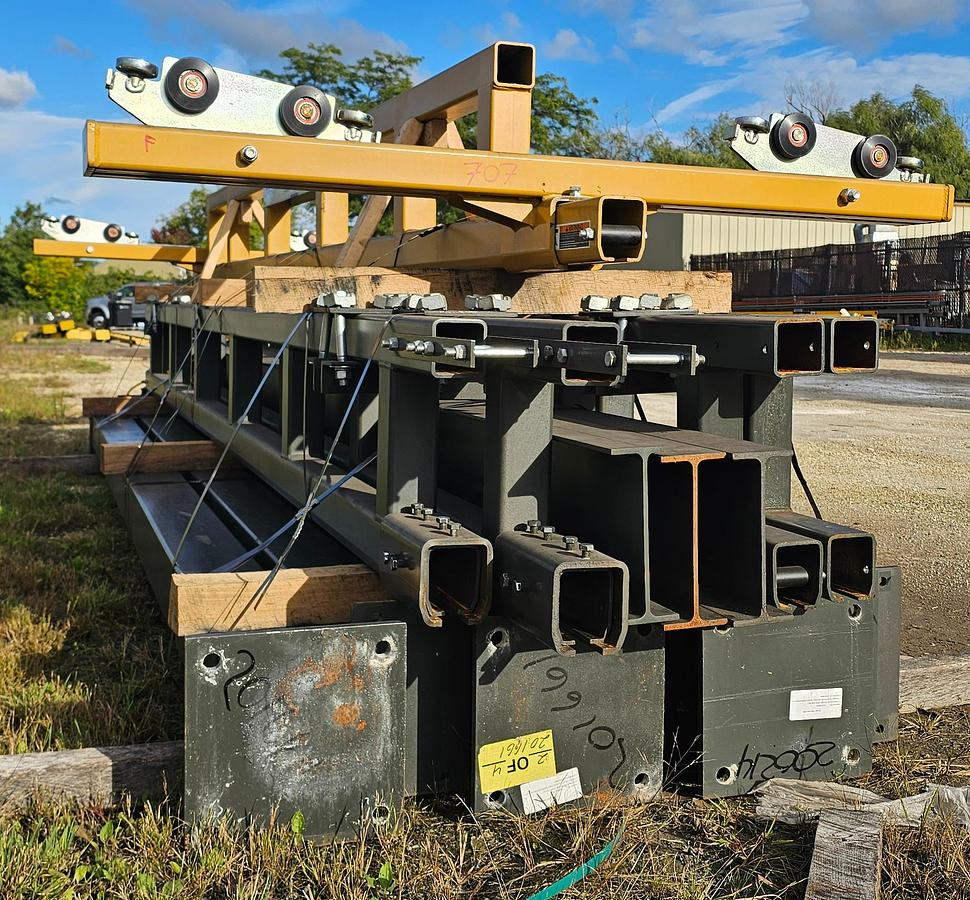

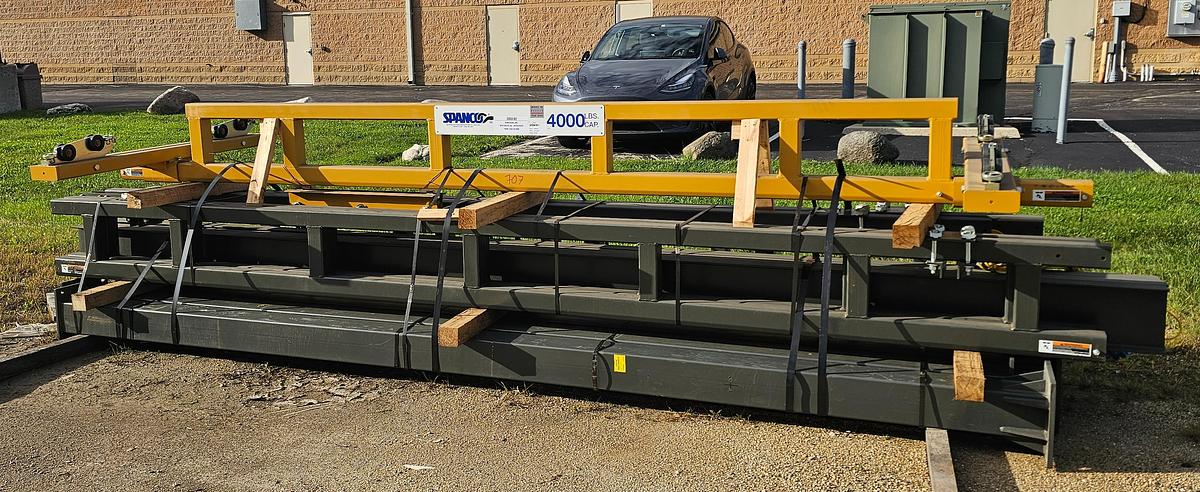

2020 Spanco 2-Ton High-Clearance Freestanding Workstation Crane System

Year of Manufacture: 2020

Manufacturer: Spanco

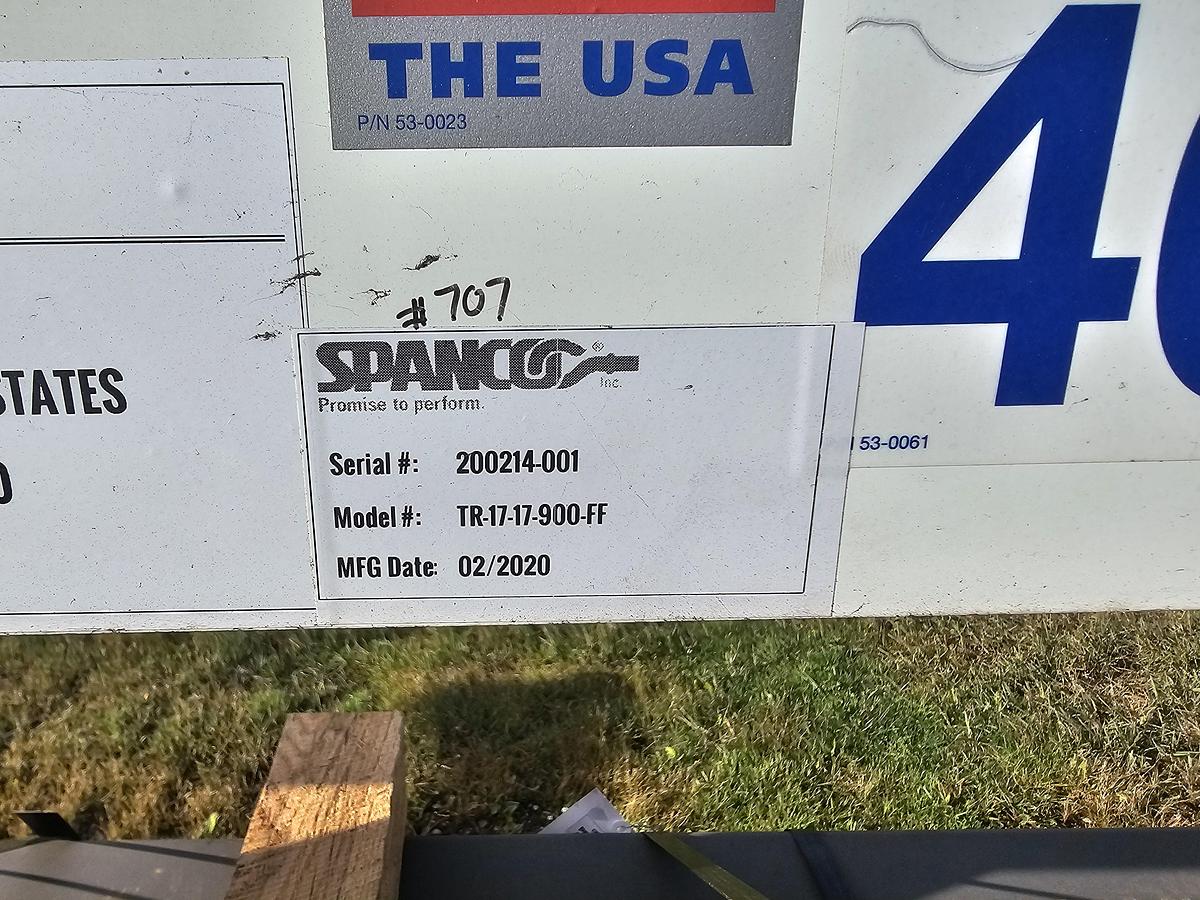

Model Code: TR-17-17-900-FF (Expanded 6-Column Layout)

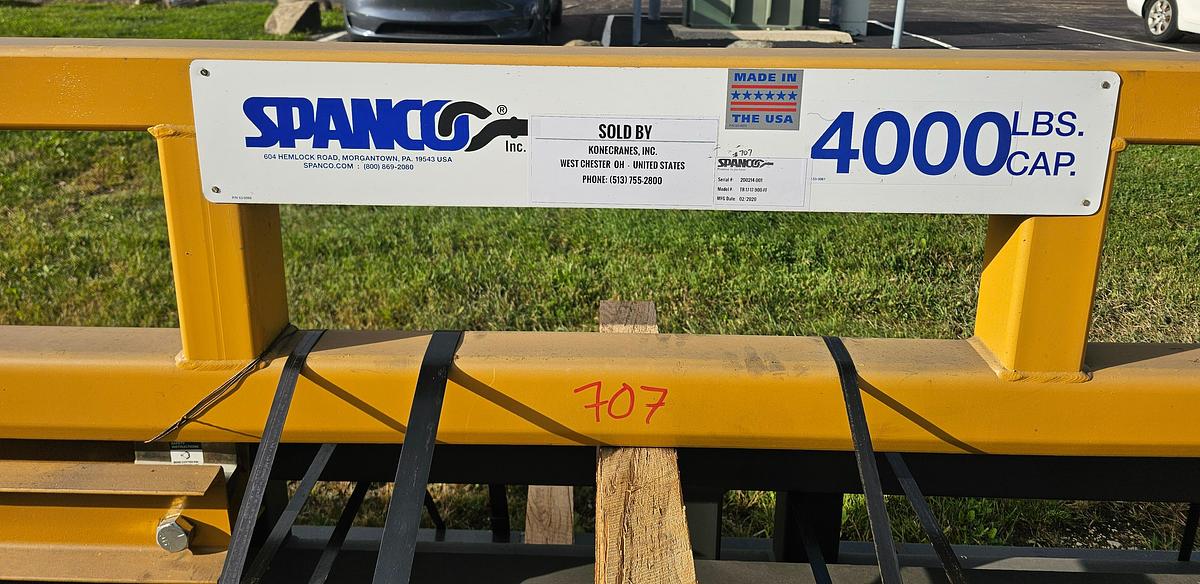

Capacity: 2 Tons (4,000 lbs)

Bridge Span: 17 Feet

Runway Travel Coverage: 34 Feet Continuous Travel (68 Total Lineal Feet of Track / 4 x 17' Sections)

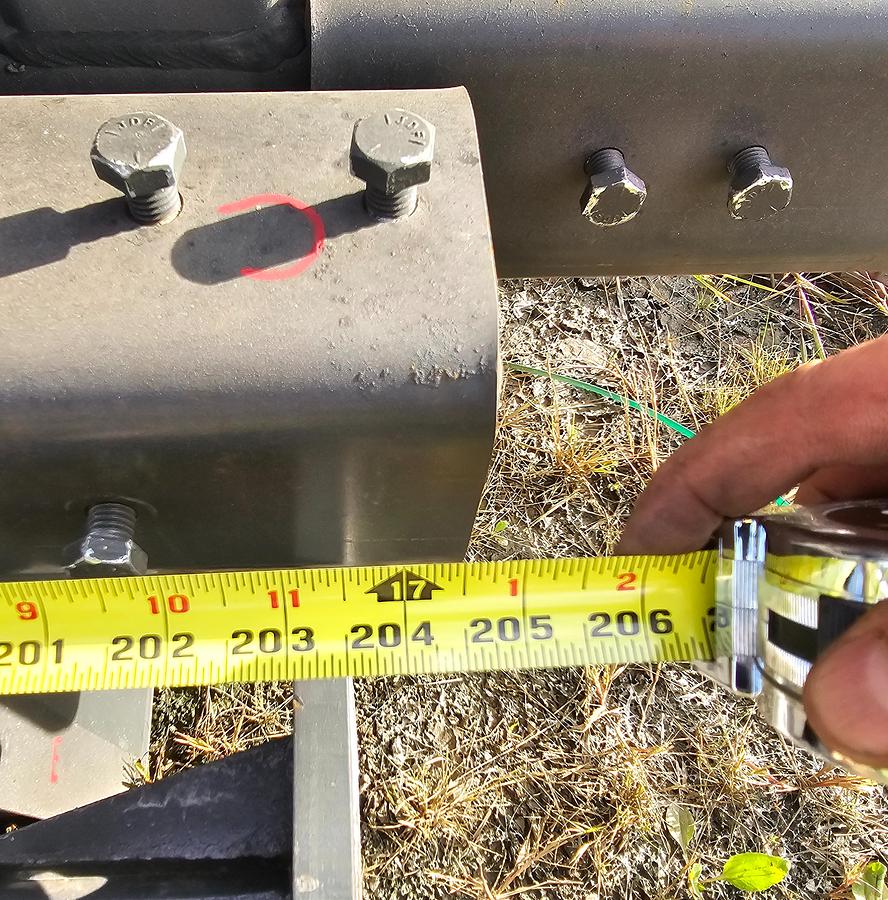

Upright Columns: (6) 199-Inch Structural Steel Uprights (~16' 7" Overall Height)

Cross Headers: (3) Heavy Structural Top Cross Support Beams

Track Series: Spanco 900 Series Heavy-Duty Enclosed Steel Track

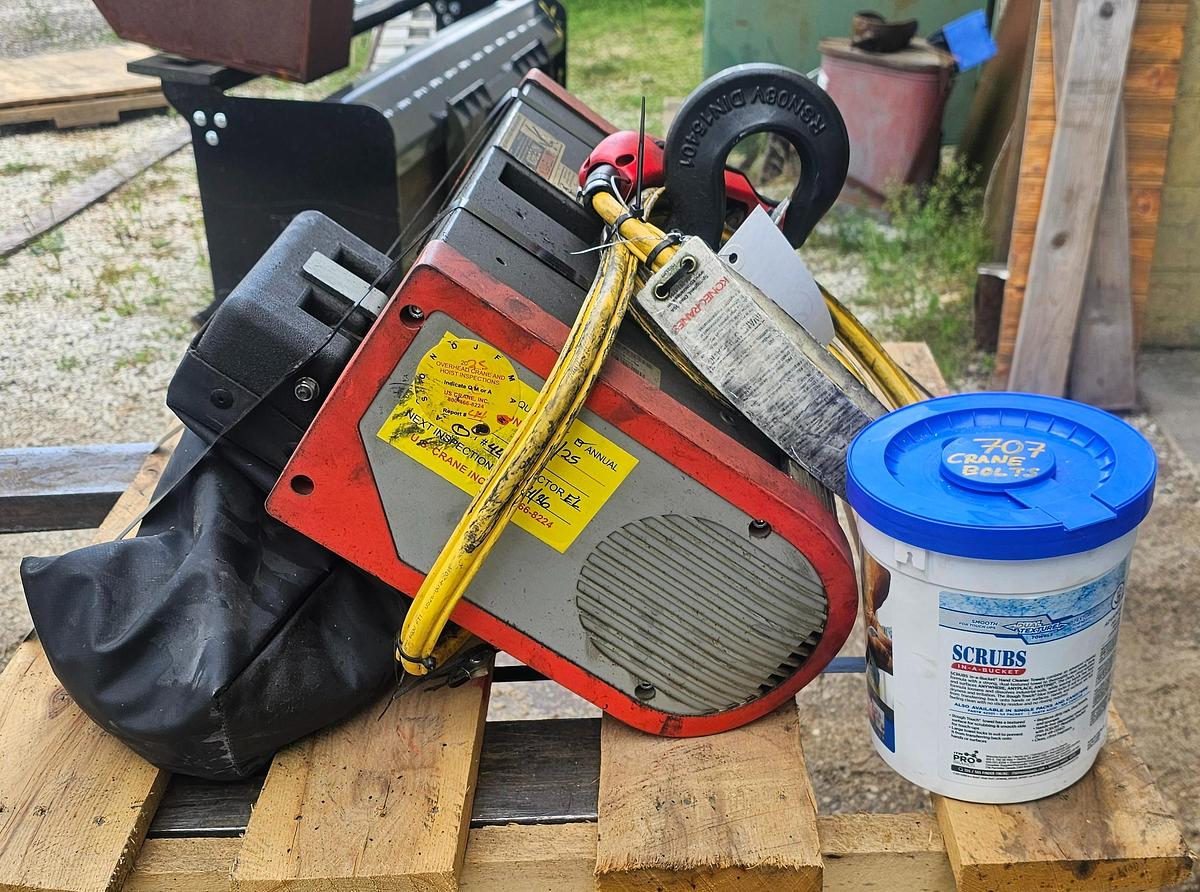

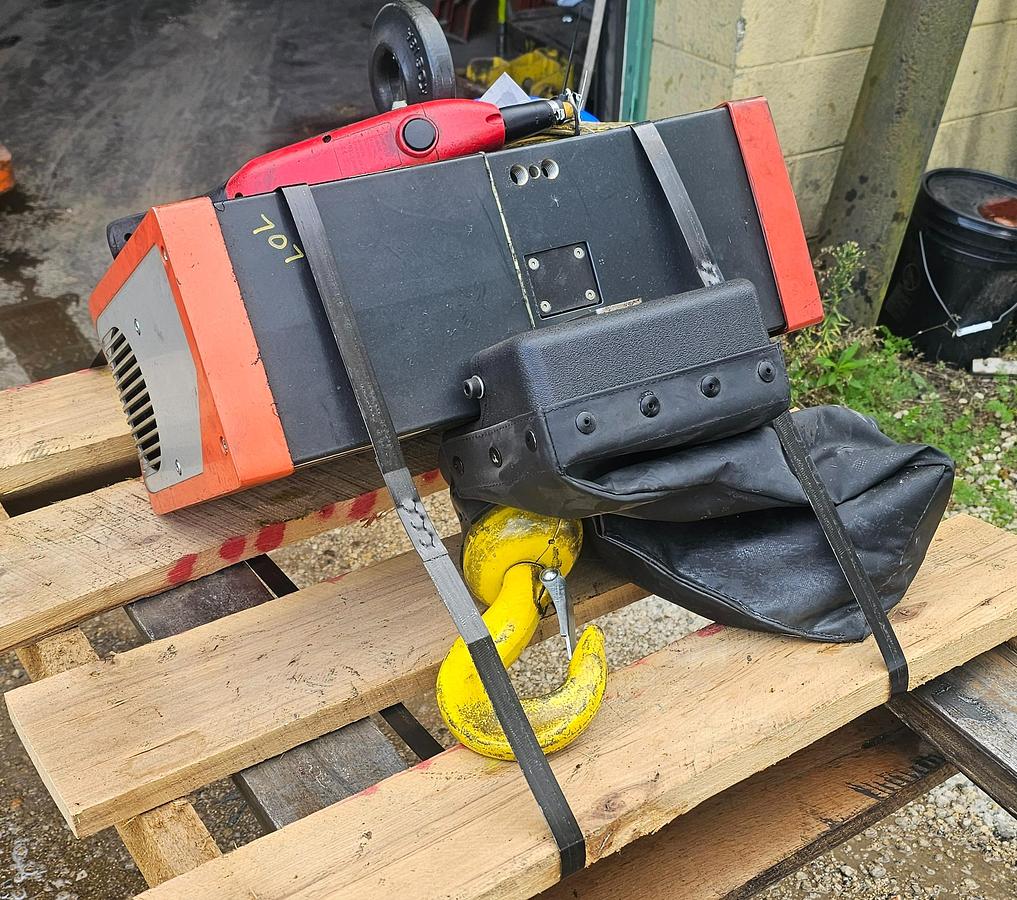

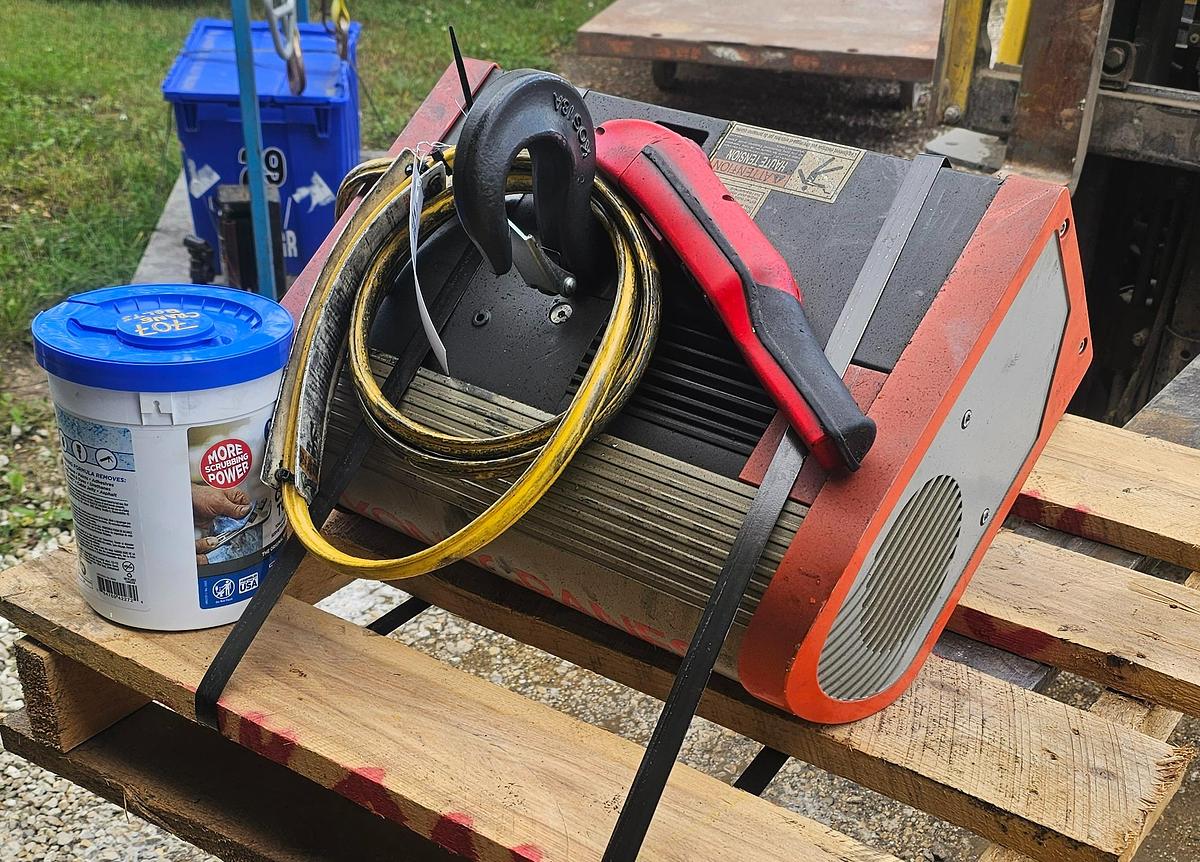

Included Hoist: 2020 Konecranes CLX 2-Ton Electric Chain Hoist (Model: CLX10042200M6038B046FH000466BC)

Overview

Up for sale is a late-model 2020 Spanco 2-Ton Freestanding Workstation Bridge Crane System equipped with a matching 2020 Konecranes CLX 2-Ton Electric Chain Hoist. Built with a heavy-duty 6-column / 3-header-beam structural frame, this modular crane system delivers 4,000 lbs of overhead lifting coverage across a 17-foot wide bridge and a 34-foot long travel runway (68 total feet of Spanco 900-series rail).

The tall 199-inch (16' 7") upright columns and 3 top cross support headers provide exceptionally rigid overhead support and high under-hook elevation (~14.5 to 15 feet usable lift height). Designed for standalone installation on standard reinforced concrete shop floors, it requires zero ties to roof trusses or overhead ceiling structures. The included 2020 Konecranes CLX electric hoist offers smooth, two-speed industrial hoisting with minimal service hours.

Key Specifications

Bridge Crane System:

• Year Built: 2020
• Lifting Capacity: 2 Tons (4,000 lbs)
• Model Designation: TR-17-17-900-FF
• Bridge Span: 17 Feet
• Runway Travel Length: ~34 Feet Continuous Travel (2 Parallel 34' Runs)
• Runway Track Supplied: (4) 17-Foot Sections — 68 Total Lineal Feet of 900 Series Track

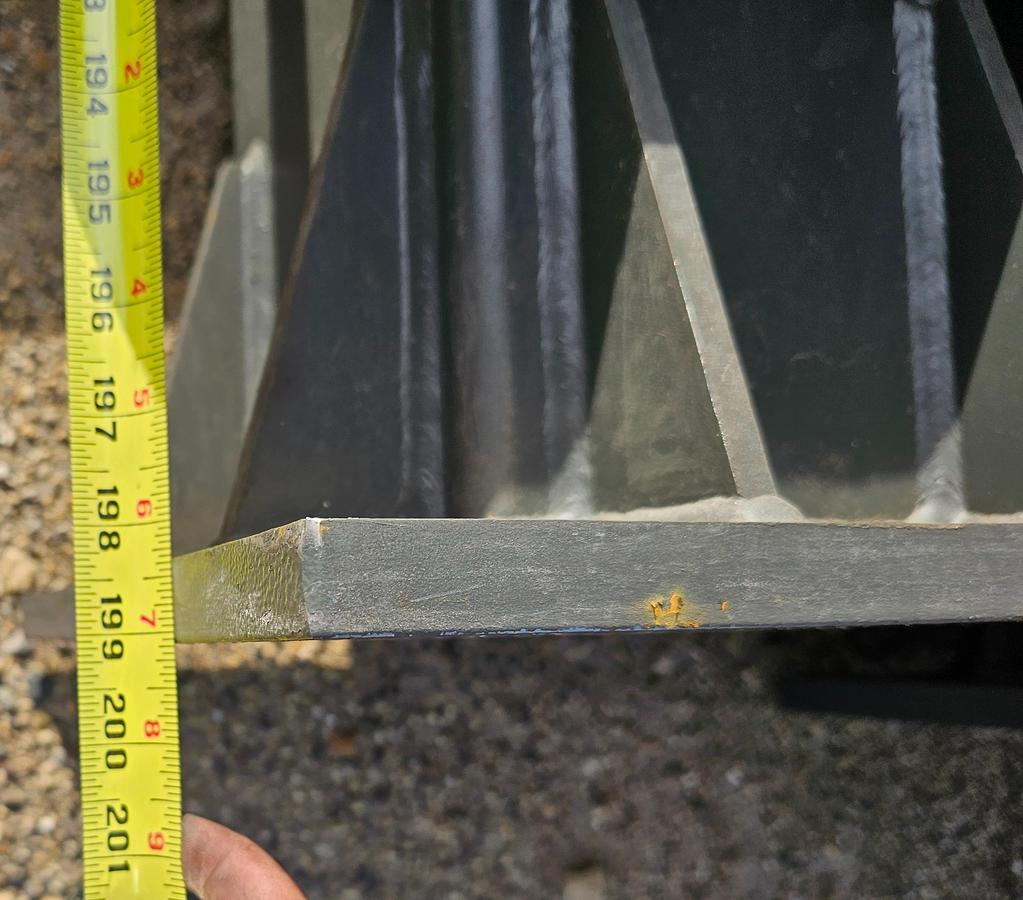

• Structural Upright Columns: (6) 199-Inch Heavy Structural Columns (~16 Feet 7 Inches)
• Overhead Cross Headers: (3) Top Cross Support Beams (~17 Foot Span)
• Estimated Usable Under-Hook Height: ~14.5 Feet to 15 Feet (depending on hoist headroom)
• Track Profile: Spanco 900 Series Enclosed Cold-Rolled Steel Track
• Operation: Manual Push/Pull Bridge & Trolley Travel

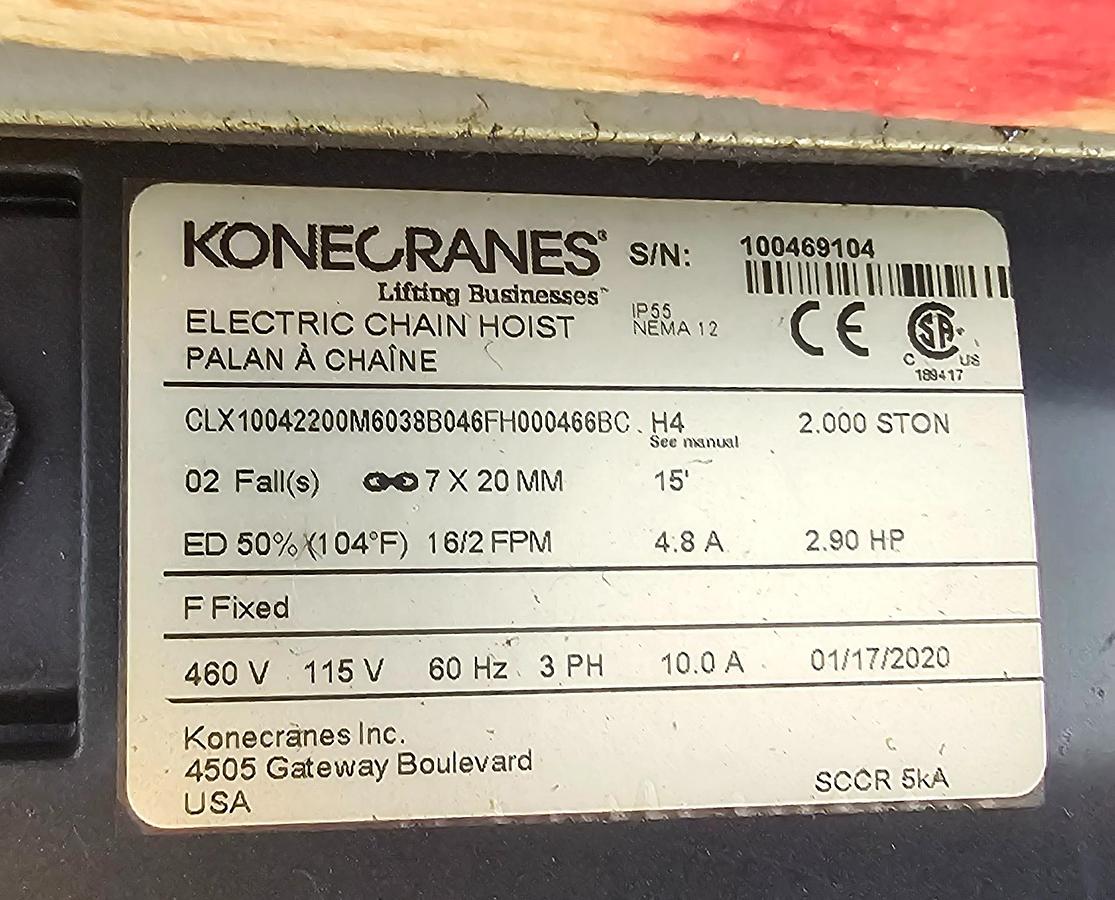

Included Konecranes Hoist Specs:

• Hoist Year: 2020
• Hoist Model / Part: CLX10042200M6038B046FH000466BC
• Series: Konecranes CLX Industrial Electric Chain Hoist
• Capacity: 2 Tons (4,000 lbs)
• Electrical Voltage: 460V / 3-Phase / 60 Hz
• Lift Speeds: 2-Speed Dual Hoisting Speed Control
• Control: Pendant Push-Button Control Station

Features

• Late-Model 2020 System: Clean, modern equipment with minimal structural wear, smooth track interiors, and fresh hoist mechanics.

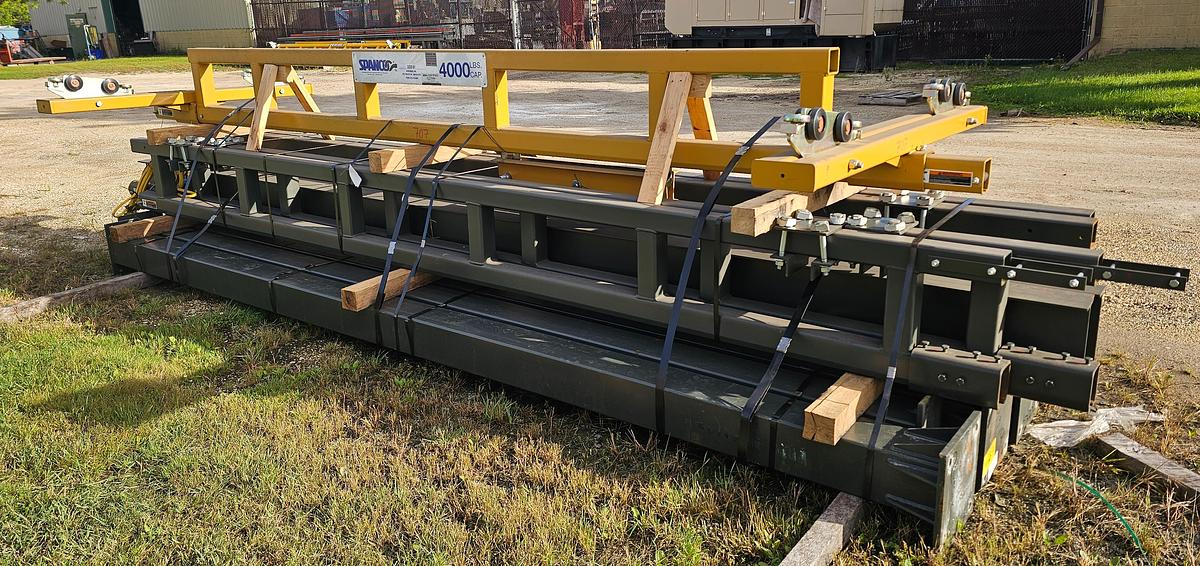

• Turnkey Lifting System: Includes the 6-post structural framework, 3 top headers, 68' of 900-series rail, 17' bridge, end trucks, trolley, and a matching 2-ton Konecranes CLX electric hoist.
• 6-Column Structural Rigidity: 3 top cross headers stabilize the 34-foot runway into two 17-foot support bays, preventing column sway and minimizing beam deflection under full 4,000 lb loads.
• High-Clearance 199" Elevation: Tall vertical clearance accommodates large CNC machinery, vertical boring mills, injection molding presses, and tall structural weldments.
• Premium German/Finnish Hoist Engineering: Konecranes CLX series features a compact aluminum frame, self-adjusting brake, patented chain drive design, and thermal motor protection for high-cycle industrial use.
