Manning, Maxwell & Moore 25-Ton x 60' Span Freestanding Double Girder Bridge Crane System

Manufacturer: Manning, Maxwell & Moore (Shaw-Box Crane & Hoist Division)

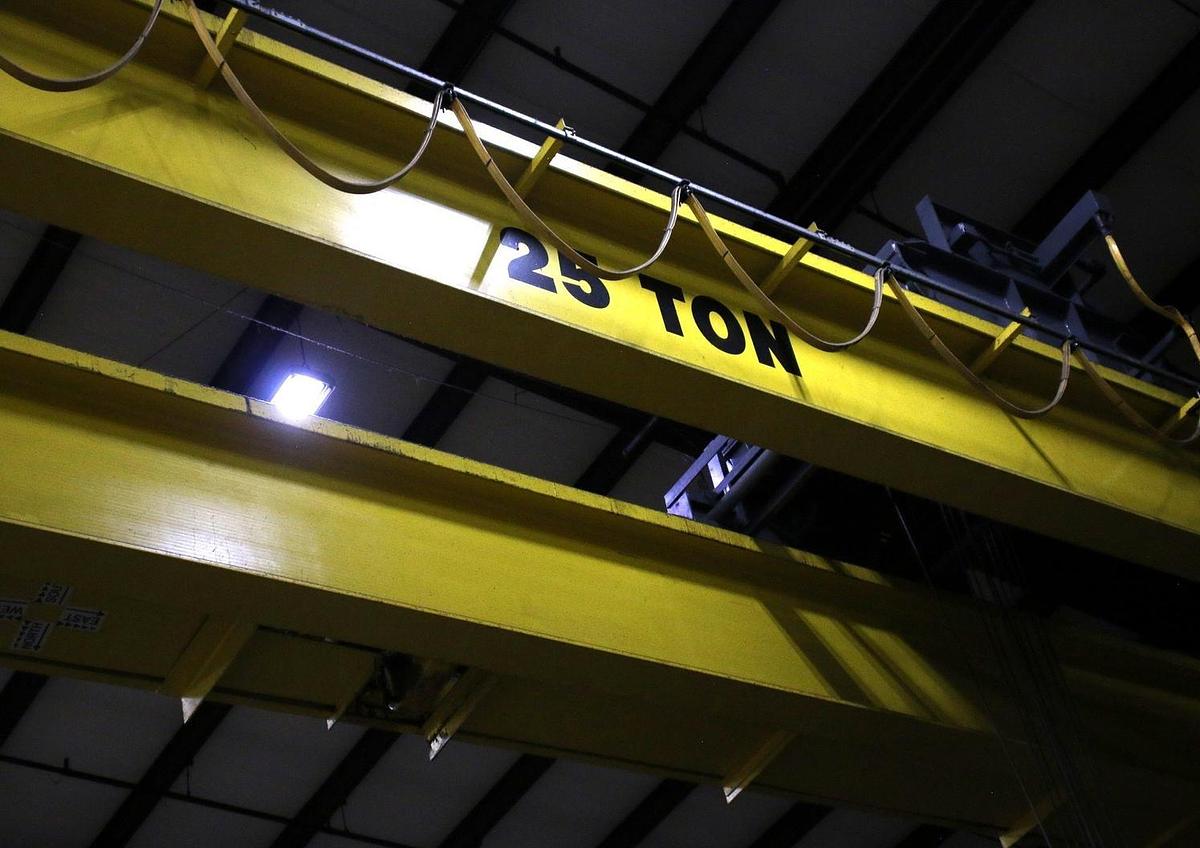

Capacity: 25 Tons (50,000 lbs)

Bridge Span: 60 Feet

Runway Travel Length: 210 Feet Continuous Travel (420 Lineal Feet of Heavy Runway Rail)

Crane Type: Freestanding Structural Steel Top-Running Bridge Crane System

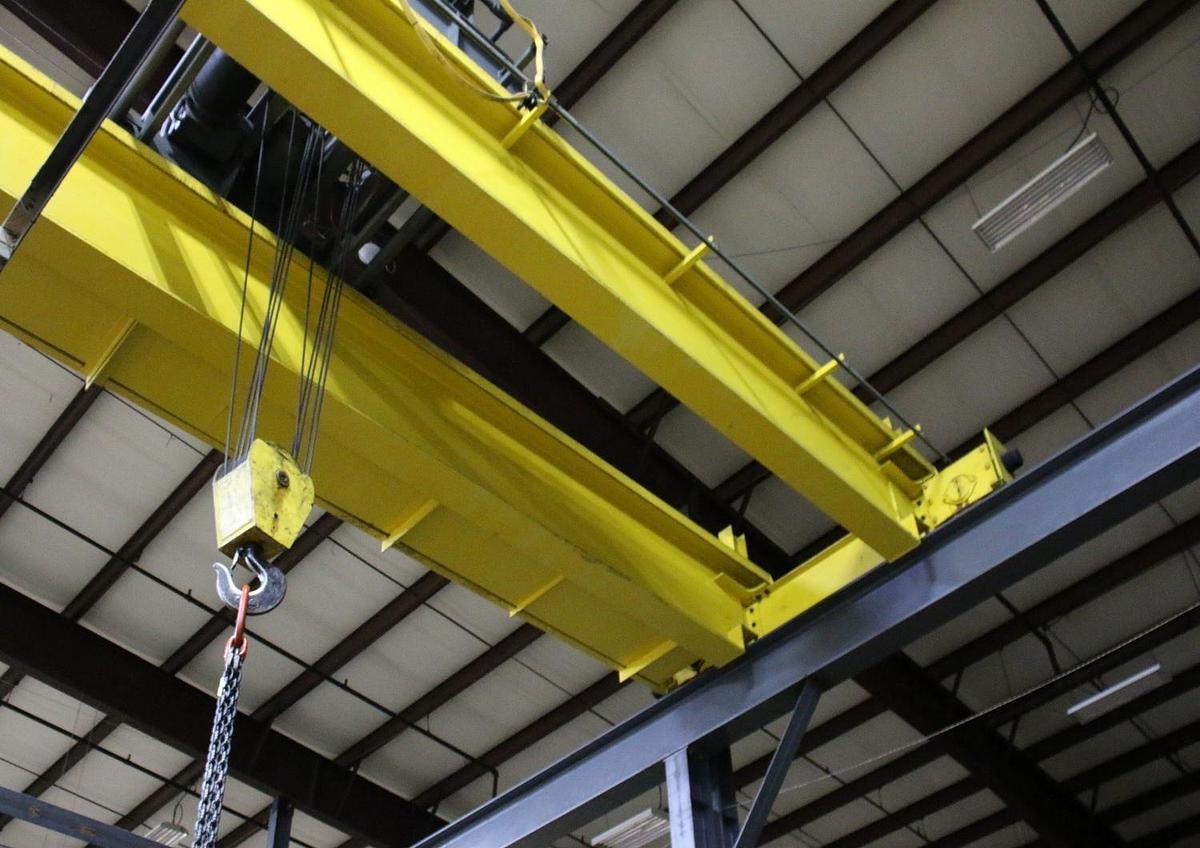

Bridge Configuration: Heavy-Duty Double Girder Construction

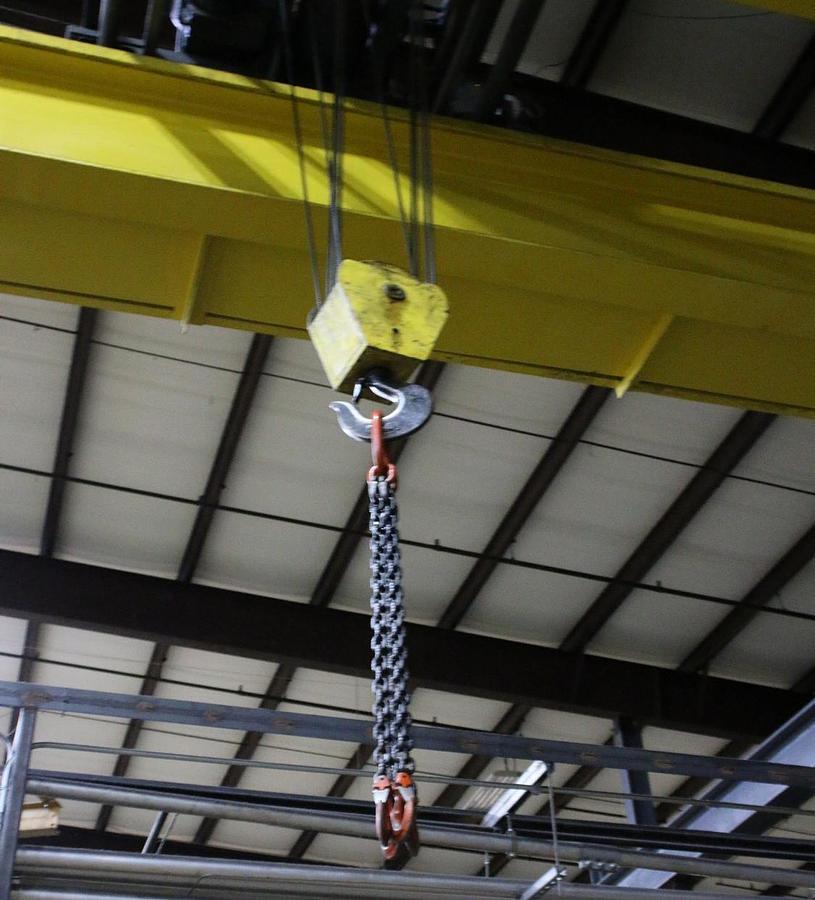

Hoist / Trolley Type: Top-Running Double-Girder Electric Wire Rope Hoist

Control System: Wireless Industrial Radio Remote Control System + Backup Push-Button Pendant

Overview

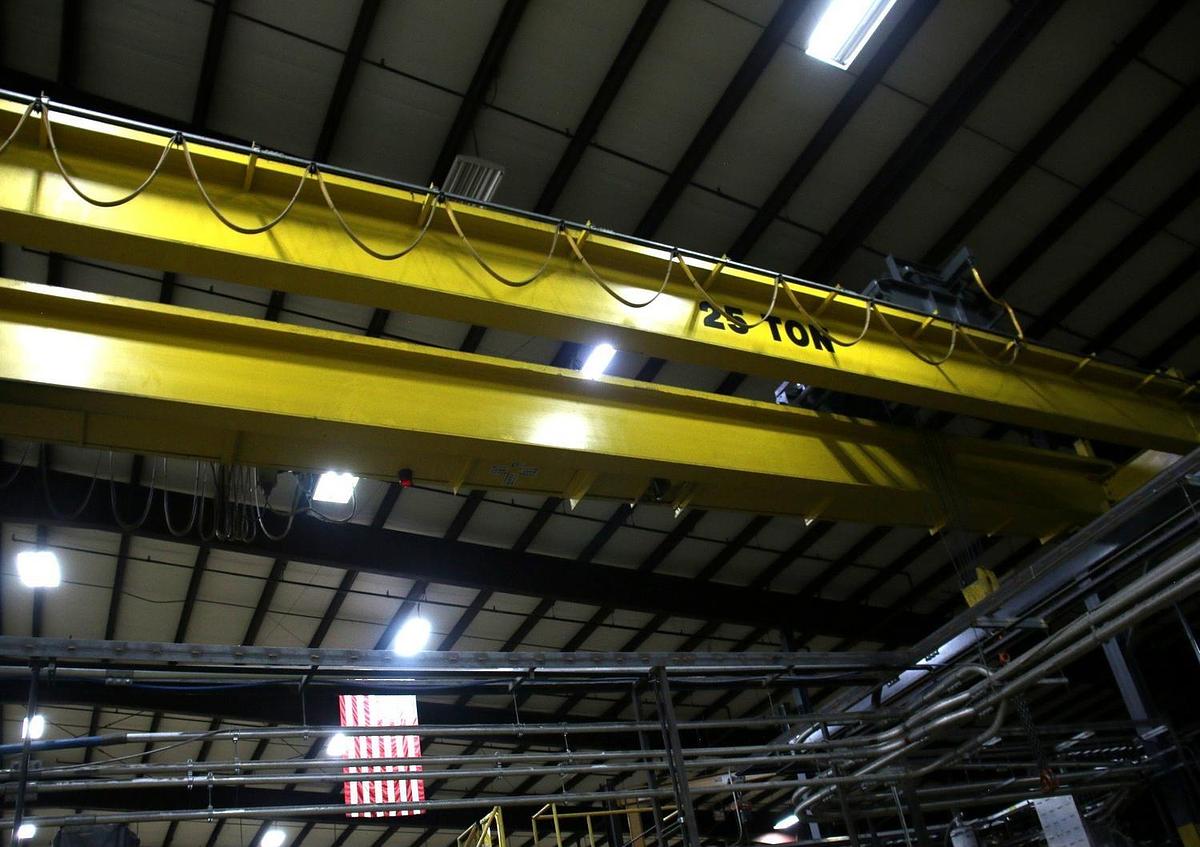

Up for sale is a massive, heavy-capacity Manning, Maxwell & Moore 25-Ton Freestanding Double Girder Overhead Bridge Crane System. Built by legendary industrial crane builder Manning, Maxwell & Moore (now Columbus McKinnon / Shaw-Box), this system delivers 50,000 lbs of overhead lifting capacity across a 60-foot wide bridge span and an extensive 210-foot continuous travel runway (420 total lineal feet of heavy runway rail).

Equipped with a wireless industrial radio remote control system (as well as a backup push-button pendant), operators can handle 25-ton picks safely from anywhere on the shop floor with optimal line-of-sight visibility. The top-running double girder design maximizes hook height and stability, making it an ideal central material handling system for heavy equipment manufacturing, steel service centers, locomotive/rail yards, and heavy die casting facilities.

Key Specifications

• Lifting Capacity: 2 Tons to 25 Tons (50,000 lbs Rating)
• Bridge Span: 60 Feet (Center-to-Center Wheel Span)
• Runway Travel Length: 210 Feet Continuous Travel (2 Parallel 210' Runs)
• Runway Rail Supplied: 420 Total Lineal Feet of Heavy Structural Runway Rail & Beams
• Bridge Design: Heavy Structural Steel Double Girder Box/I-Beam Construction
• Hoist & Trolley Type: Heavy-Duty Top-Running Double-Girder Electric Wire Rope Hoist

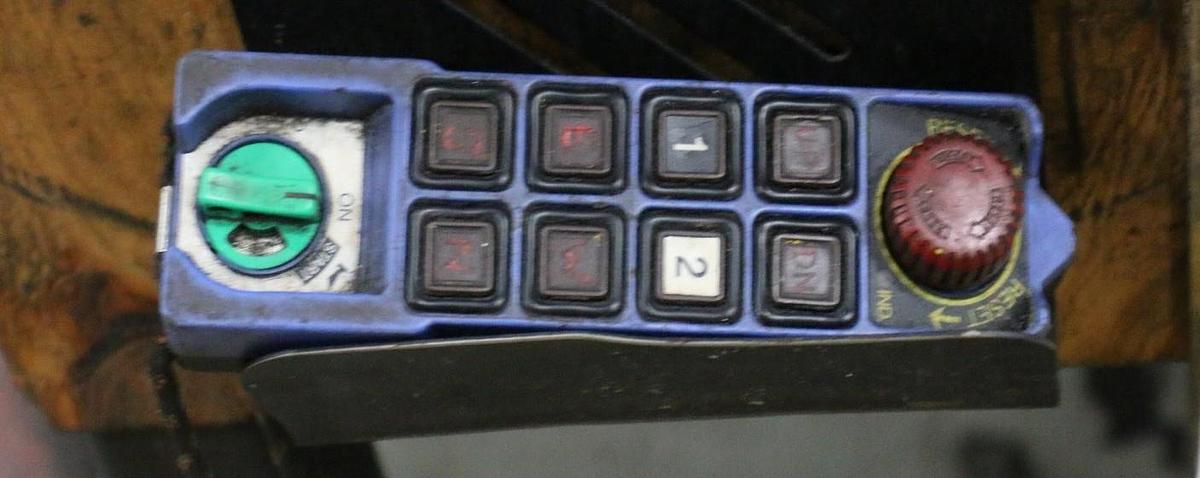

• Primary Control: Wireless Handheld Industrial Radio Remote Control
• Secondary Control: Backup Wire-Hung Push-Button Pendant Control Station
• System Type: Independent Floor-Mounted Freestanding Structural Steel Framework
• Operation: Motorized Bridge Travel, Motorized Trolley Travel, & Motorized Hoist Elevation

Features & System Highlights

• Wireless Radio Remote Control: Allows the operator to maneuver 50,000 lb loads safely from anywhere within line of sight, eliminating cable snagging hazards along the long 210-foot runway.
• Massive 25-Ton Heavy Industrial Capacity: 50,000 lb lifting envelope easily handles heavy steel coils, large castings, stamping dies, structural weldments, and heavy machinery assemblies.

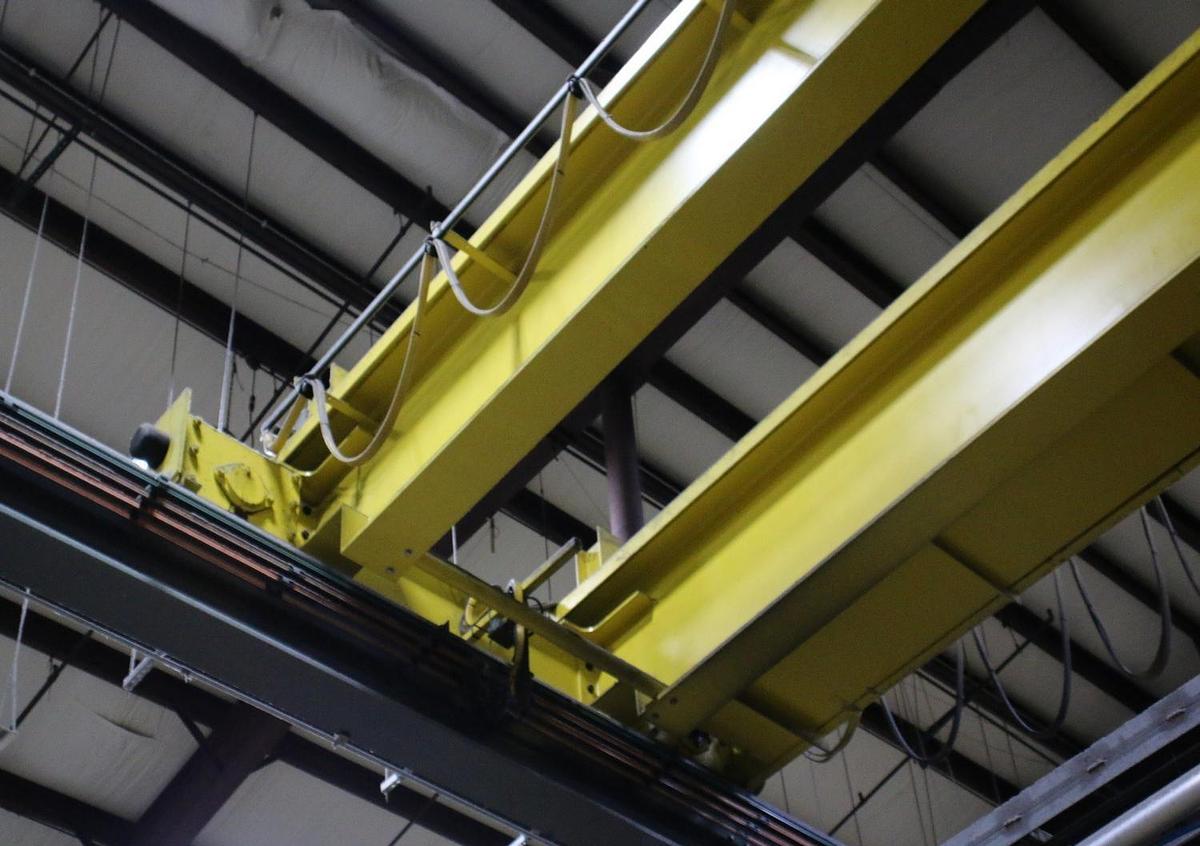

• Double Girder Hook-Height Advantage: Top-running double girder configuration rides on top of the runway beams rather than underneath, providing maximum vertical hook elevation in restricted headroom facilities.
• Huge 210-Foot Travel Coverage: 210 linear feet of runway length provides complete overhead coverage across long fabrication bays, steel service centers, or multi-cell assembly plants.
• Independent Freestanding Frame: Completely self-supporting A-frame / column structure avoids costly building structural engineering modifications or ceiling truss ties.
