Gorbel 1-Ton Freestanding Workstation Crane System (19.5' Span x 44' Runway)

Manufacturer: Gorbel (Workstation Crane Division)

Capacity: 2,000 lbs (1 Ton)

Bridge Span: 19.5 Feet

Runway Length: 44 Feet Continuous Travel (88 Total Lineal Feet of Enclosed Track)

Hook Height (HUB): 11 Feet (Under-Hook Clearance)

Overall System Height: 15 Feet 4 Inches (Top of Structural Column/Header)

Crane Type: Freestanding Enclosed Track Workstation Bridge Crane System

Hoist Unit Included: 1-Ton CM Lodestar Industrial Electric Chain Hoist

Overview

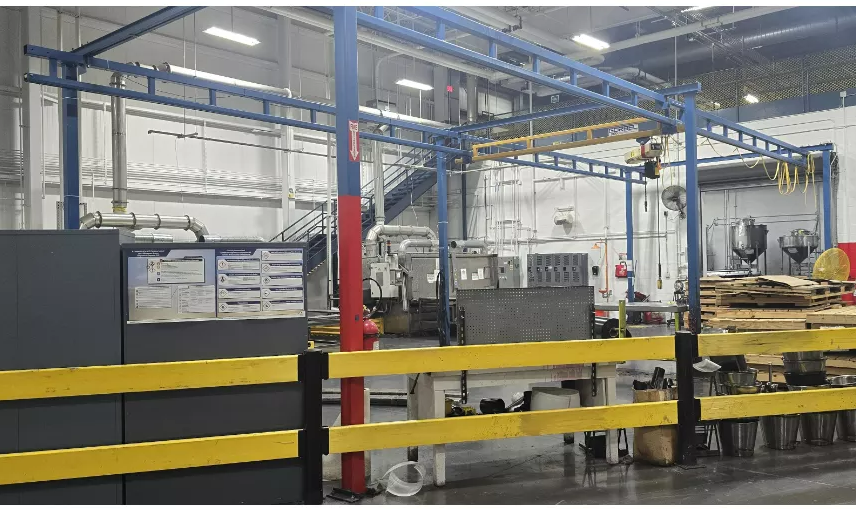

Up for sale is a complete, turnkey Gorbel 1-Ton Freestanding Workstation Overhead Bridge Crane System featuring a 19.5-foot bridge span, 44 feet of continuous runway coverage, an 11-foot hook height clearance, and an overall height of 15' 4".

This system comes fully equipped with a high-end 1-Ton CM Lodestar Electric Chain Hoist (Columbus McKinnon). Gorbel's enclosed track system offers industry-leading low rolling resistance (less than 100:1 ratio), enabling operators to position heavy loads smoothly and manually with minimal effort.

The freestanding structural steel header configuration anchors directly to a standard 6" reinforced concrete floor, requiring no building roof-truss re-engineering or overhead structural attachments. With nearly 860 square feet of unobstructed overhead coverage, it is an ideal setup for high-bay assembly, CNC machining, or heavy manufacturing bays.

Key Specifications

• Lifting Capacity: 2,000 lbs (1 Ton / 1,000 kg)
• Bridge Span: 19.5 Feet
• Runway Travel Length: 44 Feet Continuous Travel
• Height Under Hook (HUB): 11 Feet 0 Inches
• Overall System Height: 15 Feet 4 Inches
• Total Track Supplied: 88 Lineal Feet of Enclosed Steel Runway Track
• System Footprint: ~858 Sq. Ft. Operational Overhead Area
• Hoist Unit: 1-Ton CM Lodestar Industrial Electric Chain Hoist
• Control System: Wire-Hung Push-Button Pendant Control Station
• Support System: Independent Structural Steel Columns & Overhead Header Framework

Features & System Highlights

• Turnkey Hoist Integration: Includes a premium CM Lodestar 1-ton electric chain hoist known for oil-bath gear lubrication, heavy-duty motor braking, thermal overload protection, and high-duty-cycle industrial reliability.
• 11' Hook Height with 15' 4" Overall Height: Excellent vertical hook elevation for high-bay staging, large welding fixtures, and tall CNC machine loading while maintaining a rigid freestanding frame.
• Ergonomic Low-Push Force Design: Enclosed track profile prevents dust, weld spatter, and shop debris from settling on running surfaces, ensuring smooth trolley motion across the entire 44-foot bay.
• Direct Floor-Mount Structural Design: Independent freestanding framework mounts directly to existing factory floors without building modification permits or roof-truss ties.
