Gorbel 1-Ton Freestanding Workstation Crane System w/ Motorized Tractor Drives

Manufacturer: Gorbel (Workstation Crane Division)

Capacity: 2,000 lbs (1 Ton)

Bridge Span: 16.5 Feet

Runway Length: 47.5 Feet Continuous Travel (95 Total Lineal Feet of Enclosed Track)

Crane Type: Freestanding Enclosed Track Workstation Bridge Crane System

Motorized Drives: Gorbel Motorized Tractor Drive Assembly (Trolley & Bridge Travel)

Hoist Unit Included: 1-Ton CM Lodestar Industrial Electric Chain Hoist

Controls: Multi-Button Ergonomic Pendant Control Station (Hoist & Motorized Travel)

Overview

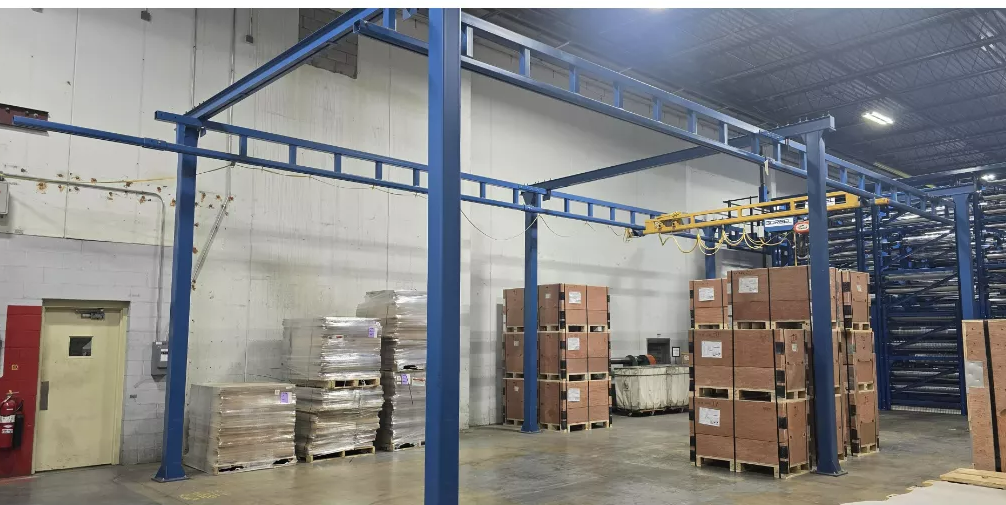

Up for sale is a complete, high-spec Gorbel 1-Ton Freestanding Workstation Overhead Bridge Crane System featuring a 16.5-foot bridge span and 47.5 feet of continuous runway coverage. This system includes a heavy-duty 1-Ton CM Lodestar Electric Chain Hoist paired with a Gorbel Motorized Tractor Drive System on the trolley/bridge travel assembly.

While Gorbel enclosed track cranes are renowned for low manual push-pull resistance, adding motorized tractor drives turns this into a fully powered, ergonomic lifting cell. Powered travel eliminates physical pulling along the 47.5' runway, ensuring precise load placement and preventing operator strain when handling full 2,000 lb capacities or long, unwieldy parts.

The freestanding structural steel framework mounts directly to standard 6" reinforced factory floors without requiring roof-truss re-engineering or structural building attachments. With nearly 784 square feet of fully motorized overhead coverage, this system offers a turnkey solution for high-duty production environments.

Key Specifications

• Lifting Capacity: 2,000 lbs (1 Ton / 1,000 kg)
• Bridge Span: 16.5 Feet
• Runway Travel Length: 47.5 Feet Continuous Travel

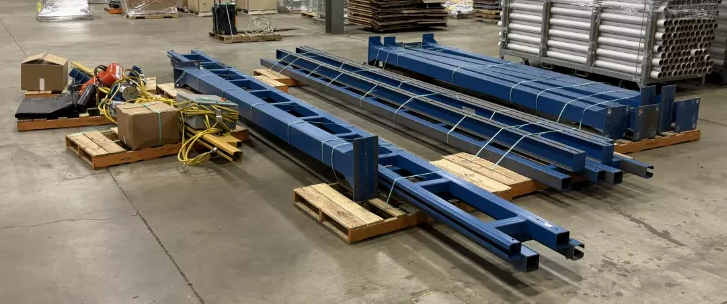

• Total Track Supplied: 95 Lineal Feet of Enclosed Steel Runway Track
• System Footprint: ~784 Sq. Ft. Operational Overhead Area

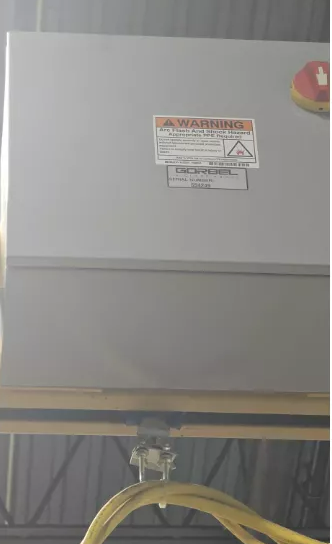

• Motorized Travel: Gorbel Motorized Tractor Drive (Powered Trolley Movement)
• Hoist Unit: 1-Ton CM Lodestar Industrial Electric Chain Hoist
• Track Profile: High-Strength Cold-Rolled Enclosed Steel Track
• Support System: Independent Structural Steel Support Columns & Longitudinal Headers
• Controls: Integrated Multi-Button Pendant (Power Lift, Power Trolley, & Power Bridge Travel)

Features & System Highlights

• Gorbel Motorized Tractor Drive Package: Powered tractor drive unit provides smooth, controlled motorized travel along the track. Eliminates manual pushing/pulling for superior load positioning and ergonomic safety.
• Turnkey CM Lodestar Hoist: Equipped with a 1-ton CM Lodestar electric chain hoist featuring heavy-duty motor braking, oil-bath gear lubrication, thermal overload protection, and high-duty-cycle industrial reliability.
• 784 Sq. Ft. Coverage Area: 47.5 linear feet of runway length provides extensive reach across multi-stage assembly lines or long machining cells.
• Direct Floor-Mount Structural Frame: Self-supporting structural steel header framework mounts directly to existing factory floor slabs without requiring building modification permits or roof ties.
