Anchor 10 Ton Double Girder Freestanding Bridge Crane 42' Span & 98' Runway, R&M Spacemaster Hoist

Anchor 10-Ton Top-Running Double Girder Overhead Bridge Crane System

42' Span | R&M Spacemaster Hoist | 98' Runway Steel & Electrification Included | Wireless Remote

Overview

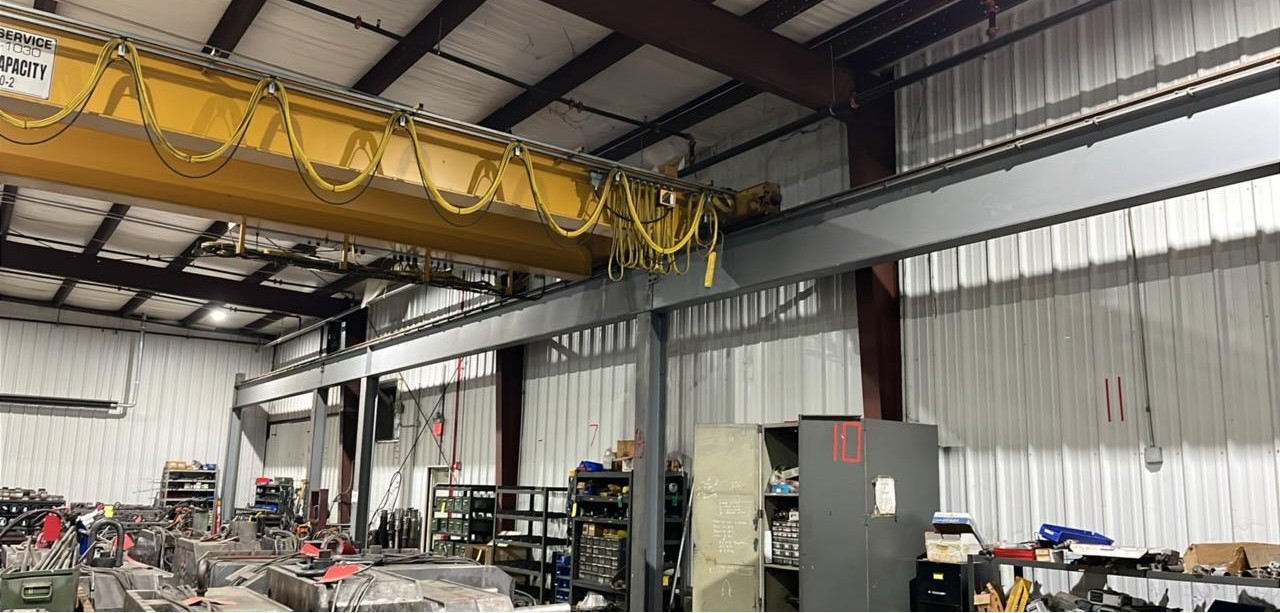

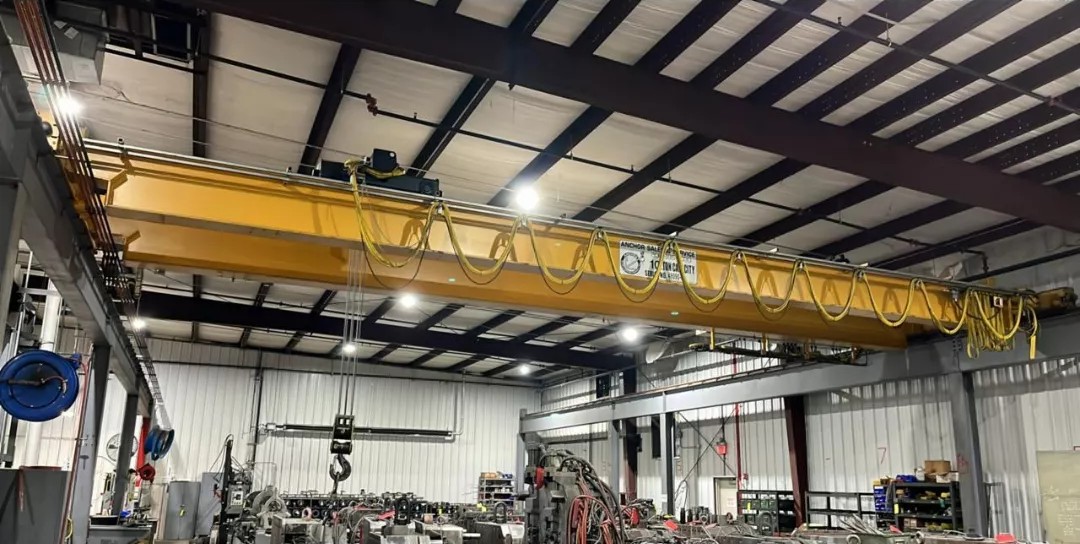

Up for sale is a complete, heavy-duty Anchor 10-Ton Top-Running Double Girder Overhead Bridge Crane System (Serial # 48090-2). Engineered for high-capacity industrial manufacturing, fabrication facilities, machine shops, and steel warehouses, this system provides a 42-foot span paired with a high-performance R&M Spacemaster 10-ton wire rope hoist.

The double girder top-running design allows the hoist trolley to ride along the top of the bridge beams, maximizing vertical hook height in facilities with restricted ceiling clearance. This complete package comes equipped with 98 feet of runway track steel, conductor bar electrification, and a handheld wireless remote control system for precise overhead load positioning.

Key Features & Specifications

• Manufacturer: Anchor Crane

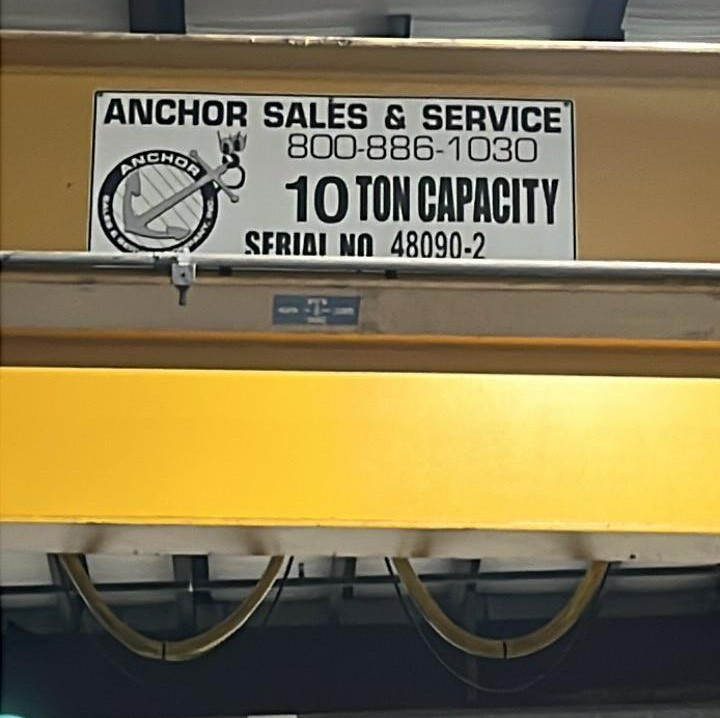

• Serial Number: 48090-2
• Rated Capacity: 10 Ton (20,000 lbs)
• Crane Configuration: Top-Running Double Girder
• Bridge Span: 42 Feet
• Clearance: 14 Feet (Floor to bottom of crane girder)

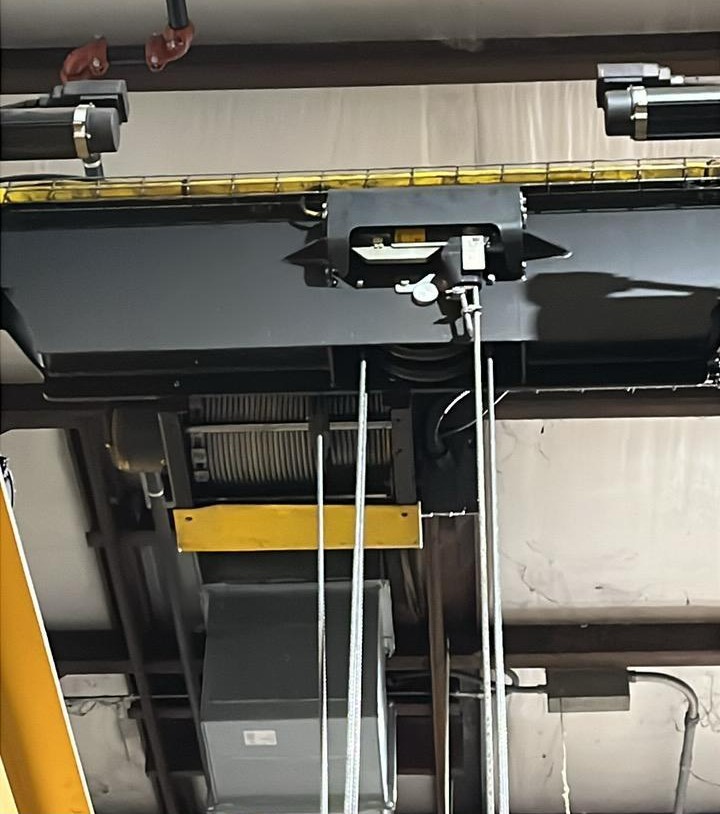

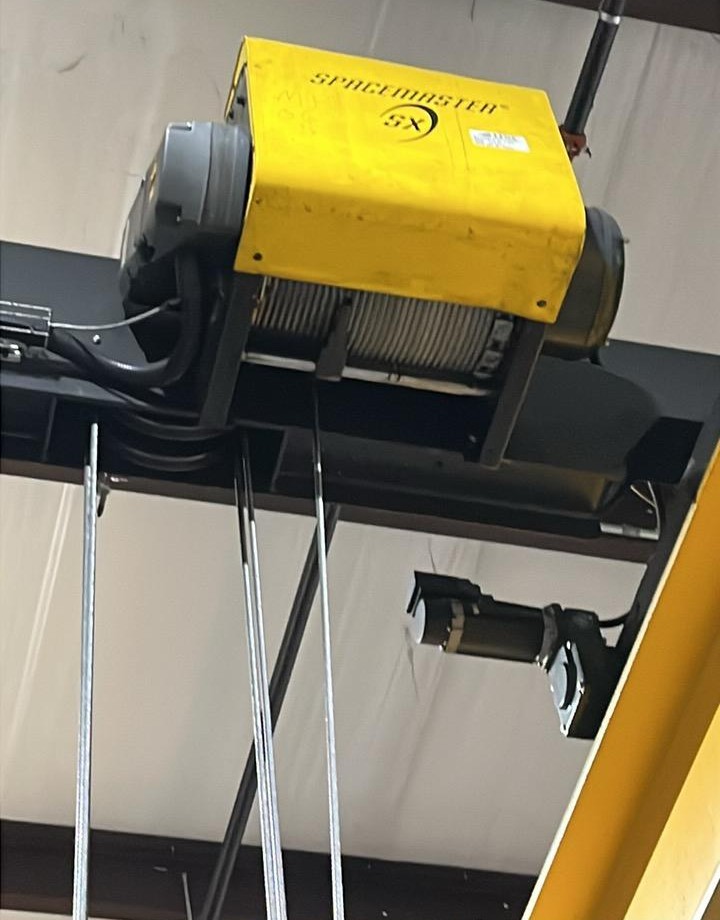

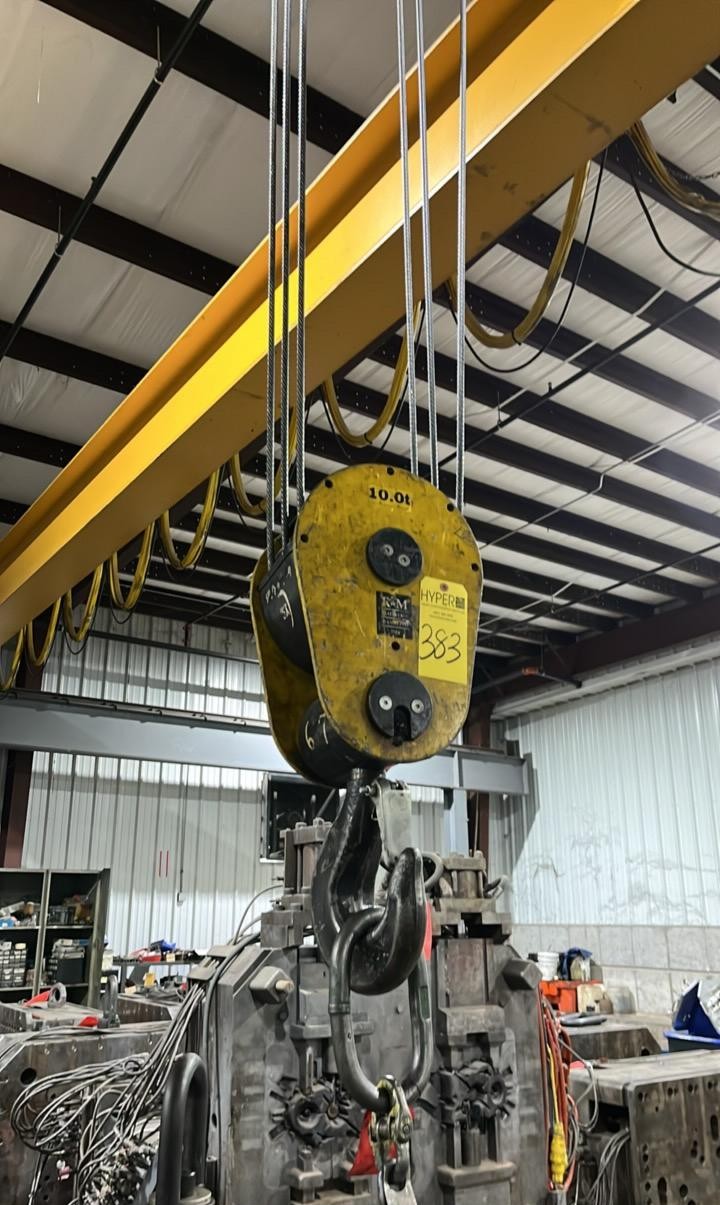

• Hoist & Trolley: R&M Spacemaster 10-Ton Electric Wire Rope Hoist
• Control System: Handheld Wireless Remote Control

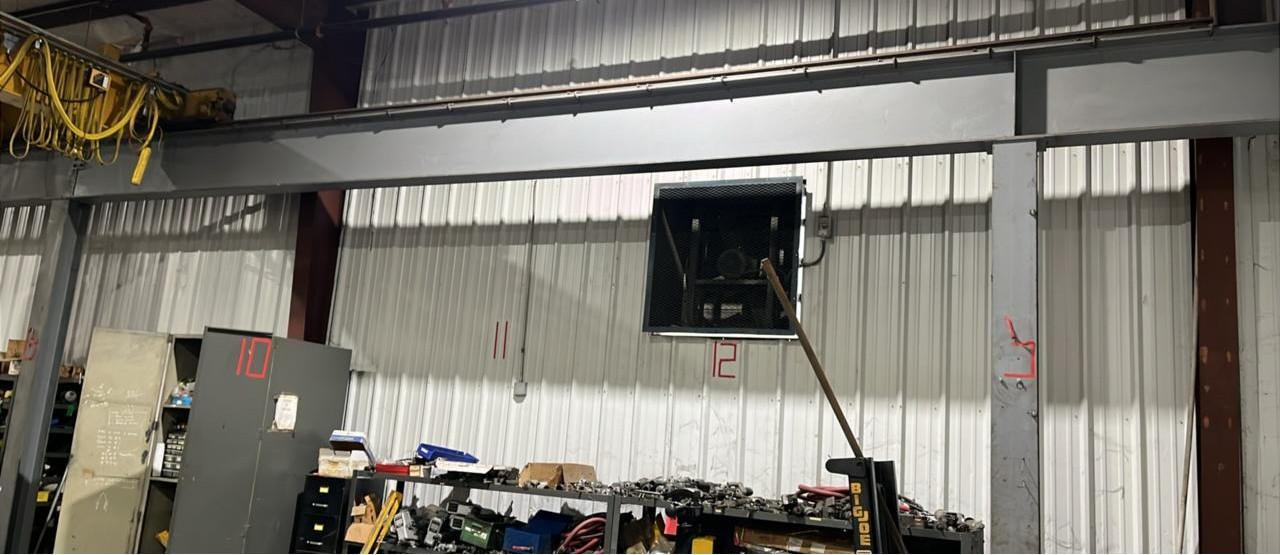

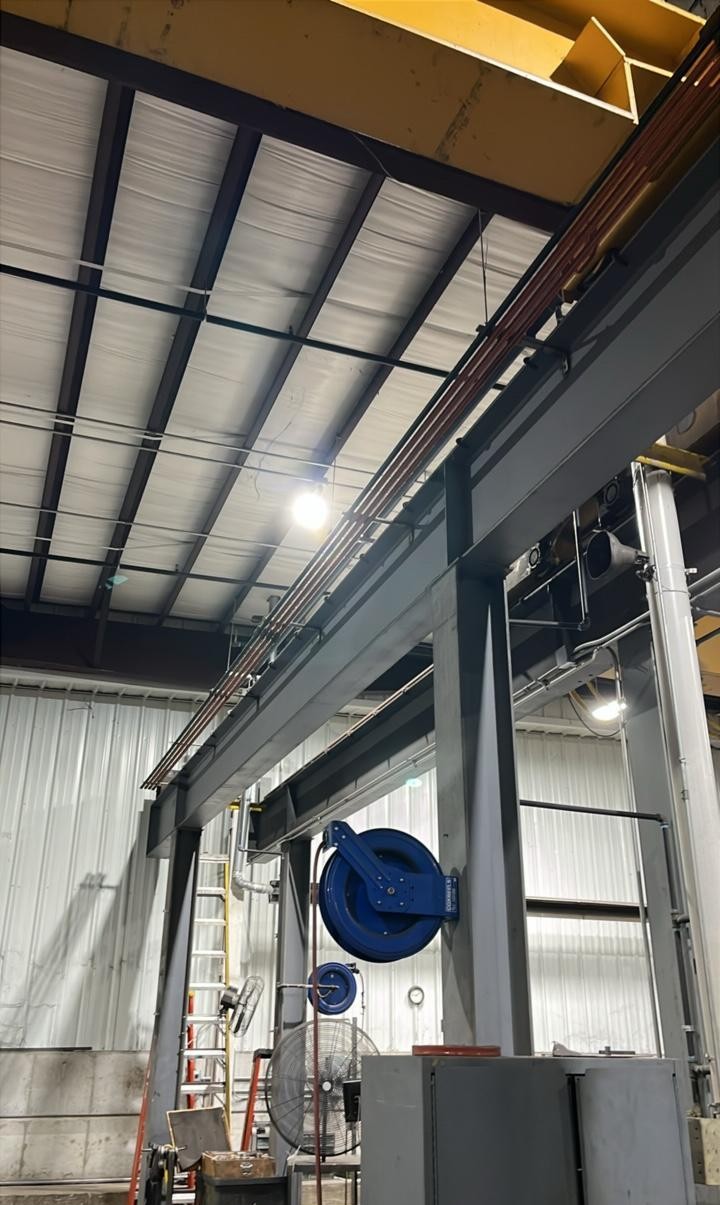

• Runway Steel Included: 98 Linear Feet of Runway Track (Includes heavy structural runway beams and ASCE rail)
• Electrification: Full conductor bar / festoon electrical run included
